CCTV lenses

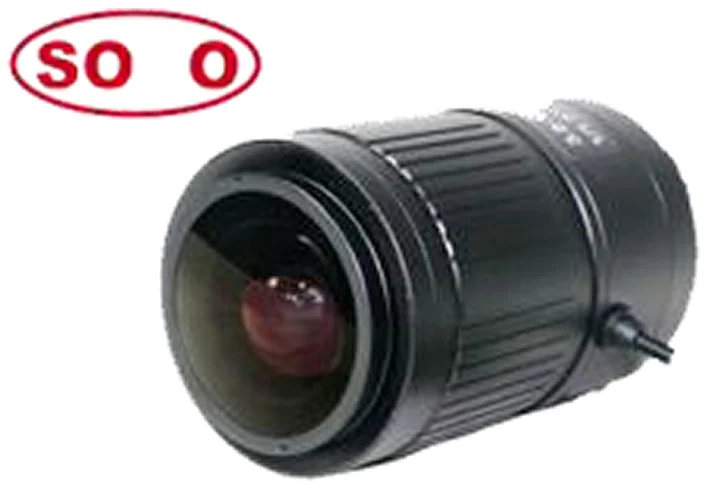

3.8-18 mm, 1/1.7", 12 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0129)
Model LS-CTV-0129
- Focal length3.8-18 mm
- MountCS-mount
- Sensor1/1.7"
- ApertureF1.5 DC Iris
- Resolution12.0 Megapixel
$109.00
Ships in 2-3 weeks
0.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.8-18 mm, 1/1.7", 12 MP, CS-mount Varifocal CCTV Lens. 12 megapixel 3.8-18 mm varifocal lens covering 4K, with an F1.5 aperture for dark scenes. Large format covering 1/1.8", 1/2", 1/2.5" and 1/2.7"; IR-corrected for 24 h day and night. At a glance: focal length 3.8-18 mm; format 1/1.7"; resolution 12.0 Megapixel; aperture F1.5 DC Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0129 |
|---|---|
| IR correction | IR |
| Format | 1/1.7" |
| Angle of view (1/1.7", DxHxV) | 145 x 110 x 79 deg |
Optics
| Focal length | 3.8-18 mm |
|---|---|
| Aperture | F1.5 DC Iris |
| M.O.D. | 0.3 m |
Sensor and imaging
| Resolution | 12.0 Megapixel |
|---|
Mechanical

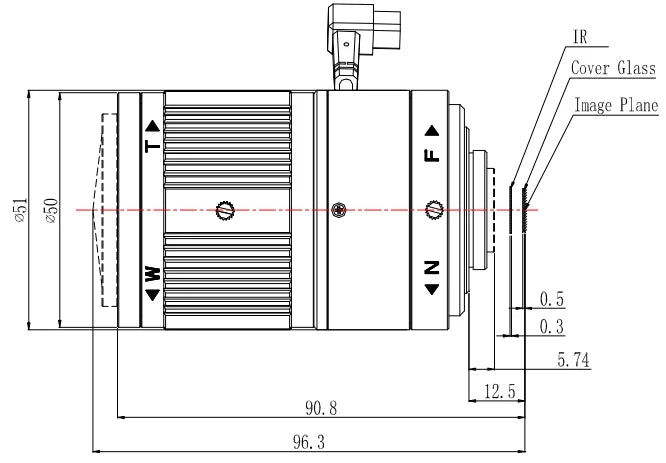

| Size | dia. 51 x 82 mm |
|---|---|
| Mount | CS |
| Weight | 251 g |
| Shipping weight (estimated) | 0.45 kg |
