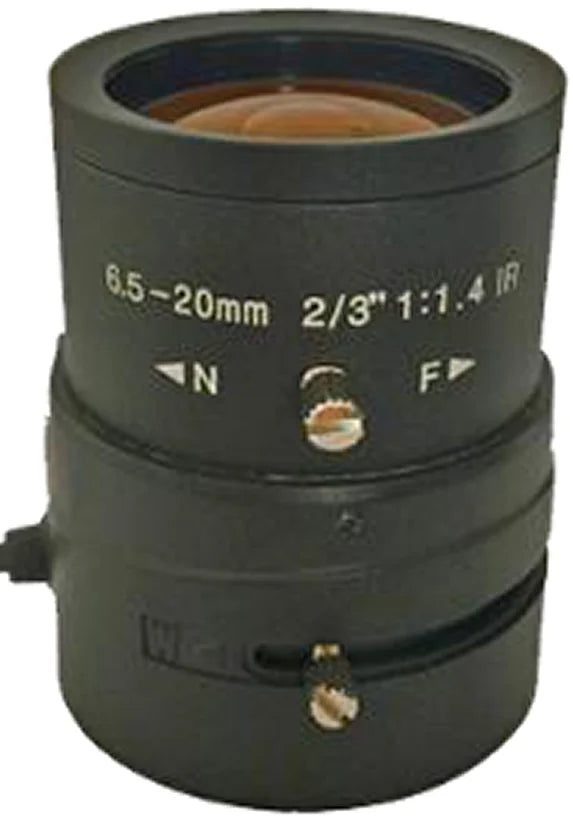

6.5-20 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0130)
  • 6.5-20 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0130)
  • LS-CTV-0130 dimensions (mm)

CCTV lenses

6.5-20 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0130)

Model LS-CTV-0130

  • Focal length6.5-20 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.4 DC Iris
  • Resolution3 Megapixel
$79.00

Ships in 2-3 weeks

0.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6.5-20 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0130)LS-CTV-0130

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6.5-20 mm, 2/3", 3 MP, C-mount Varifocal CCTV Lens. 6.5-20 mm, 3 megapixel IR-corrected varifocal lens for 2/3" cameras with F1.4 DC iris. At a glance: focal length 6.5-20 mm; format 2/3"; resolution 3 Megapixel; aperture F1.4 DC Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0130
IR correctedIR
Format2/3"
Angle of view (2/3", DxHxV)W 96 x 74 x 54 deg / T 32 x 27 x 20 deg
Notes-20~+100°
IR correctionIR
Angle of view (2/3")W: 96 x 74 x 54 | T: 32 x 27 x 20 deg
B.F.L.12-21.39 mm
T.T.L.75.9 mm

Optics

Focal length6.5-20 mm
ApertureF1.4 DC Iris
M.O.D.0.3 m
Back focal length12-21.39 mm

Sensor and imaging

Resolution3 Megapixel

Mechanical

Sizedia. 43.4 x 57.02
Total track length75.9 mm
MountC
Weight130 g
Shipping weight (estimated)0.28 kg
