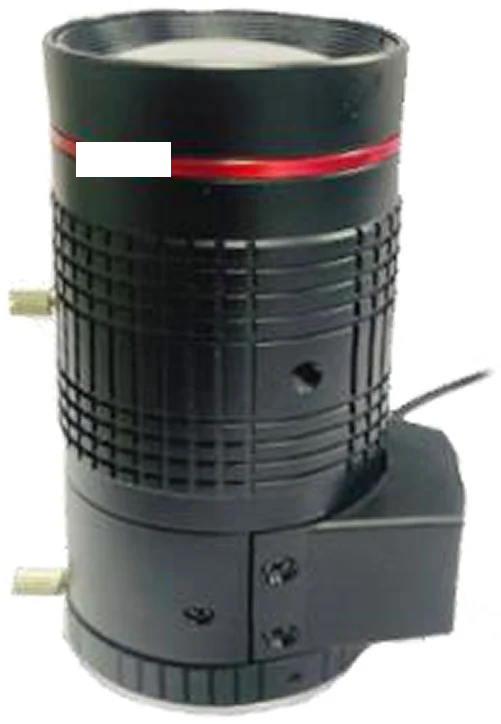

30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0134)
  • 30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0134)

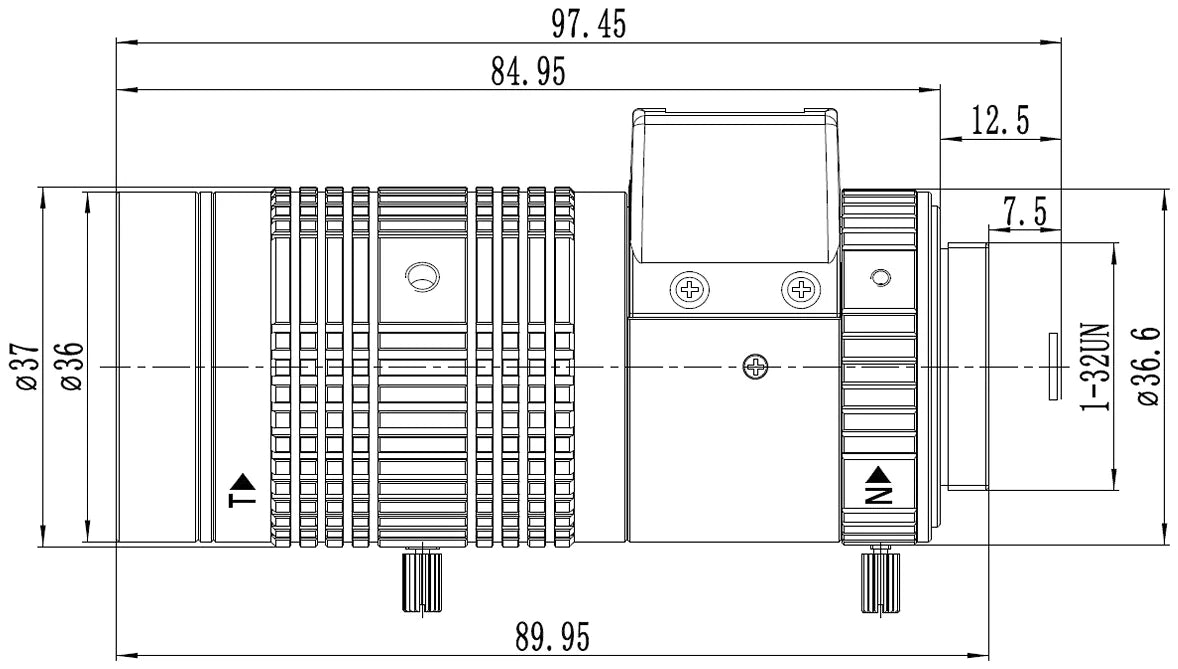

  • LS-CTV-0134 dimensions (mm)

CCTV lenses

30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0134)

Model LS-CTV-0134

  • Focal length30-120 mm
  • MountCS-mount
  • Sensor1/2"
  • ApertureF1.8 DC Iris
  • Resolution5 Megapixel
$79.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0134)LS-CTV-0134

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens. 30-120 mm 1/2" 5 MP CS-mount IR varifocal lens, DC iris. At a glance: focal length 30-120 mm; format 1/2"; resolution 5 Megapixel; aperture F1.8 DC Iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0134
IR correctionIR
Format1/2"
Angle of view (1/1.7", DxHxV)W 18.9 x 15 x 11 | T 3.9 x 3.3 x 1.9 deg
B.F.L.7.5 mm
Notes-20°~+70°; 430~650 nm & 850 coating

Optics

Focal length30-120 mm
ApertureF1.8 DC Iris
Distortion-3.0% (W) ~ 1.3% (T)
M.O.D.0.2 m (W) ~ 1 m (T)

Sensor and imaging

Resolution5 Megapixel

Mechanical

Sizedia. 37 x 89.95 mm
MountCS
Weight300 g
Shipping weight (estimated)0.52 kg
