8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-SVD0850XIR-3M)

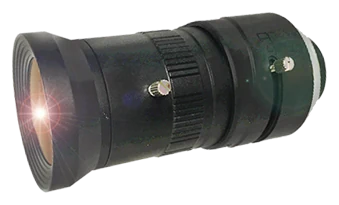

  • 8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-SVD0850XIR-3M)

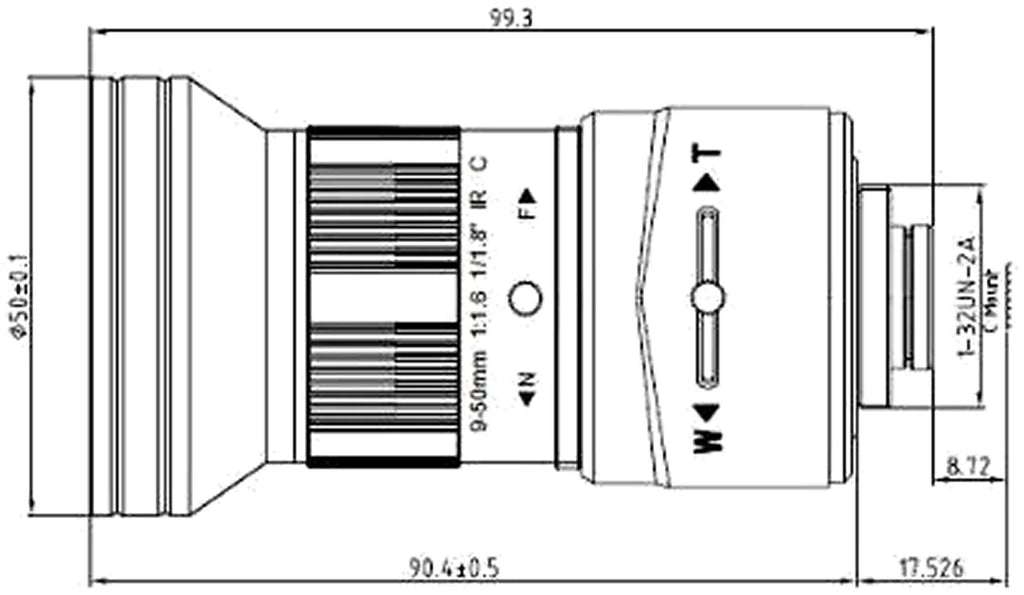

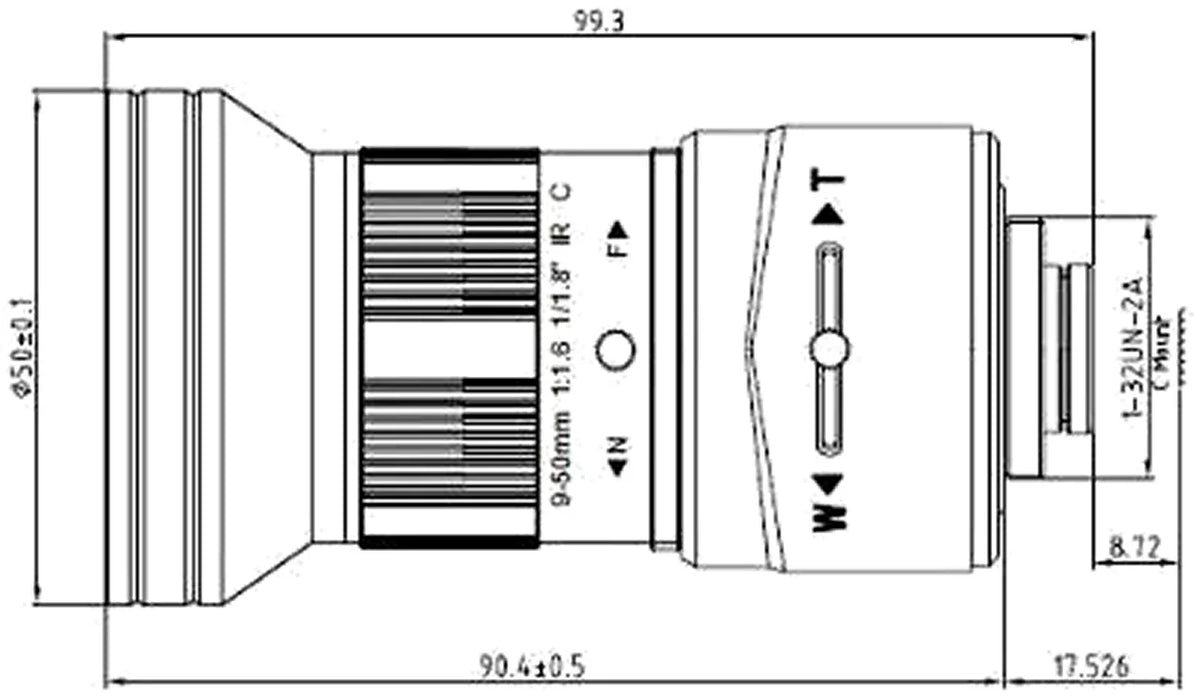

  • LS-SVD0850XIR-3M dimensions (mm)

CCTV lenses

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0108)

Model LS-CTV-0108

  • Focal length8-50 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF1.6 DC Iris
  • Resolution3.0 Megapixel
$79.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0108)LS-CTV-0108

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. 3.0 megapixel 8-50 mm varifocal lens with a 1/1.8" format covering 1/1.8" and 1/2" cameras. IR-corrected for 24 h day and night; the focal range covers 10-50 mm, 12-50 mm and 10-40 mm uses. At a glance: focal length 8-50 mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.6 DC Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0108
IR correctionIR
Format1/1.8"
Angle of view (1/1.8")62 x 46 x 34 deg

Optics

Focal length8-50 mm
ApertureF1.6 DC Iris
M.O.D.0.3 m
Distortion-19.2% - -0.9%

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 50 x 90.4 mm
MountC
Weight251 g
Shipping weight (estimated)0.45 kg
