CCTV lenses
5-50 mm, 1/2.7", 3 MP, D14-mount Varifocal CCTV Lens (LS-CTV-0096)
Model LS-CTV-0096
- Focal length5-50 mm
- MountD14
- Sensor1/2.7"
- ApertureF1.6 fixed iris
- Resolution3.0 MP
$79.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5-50 mm, 1/2.7", 3 MP, D14-mount Varifocal CCTV Lens. 5-50 mm 1/2.7" fixed-iris varifocal CCTV lens (dia. 14 / D14 mount) for security surveillance, licence-plate recognition, ITS, exits/entrances and toll gates. At a glance: focal length 5-50 mm; format 1/2.7"; resolution 3.0 MP; aperture F1.6 fixed iris; mount D14.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0096 |
|---|---|
| Format | 1/2.7" |
| IR correction | IR |
| Angle of view (1/2.7", DxHxV) | 58.6 x 50.6 x 28.3 deg |
| Angle of view (1/3", DxHxV) | 52.8 x 42.1 x 31.5 deg |
Optics
| Focal length | 5-50 mm |
|---|---|
| Aperture | F1.6 fixed iris |
| M.O.D. | 1 m |
| Distortion | -10.3 ~ 1.85% |
| TTL | 62.48 mm |
Sensor and imaging
| Resolution | 3.0 MP |
|---|
Mechanical

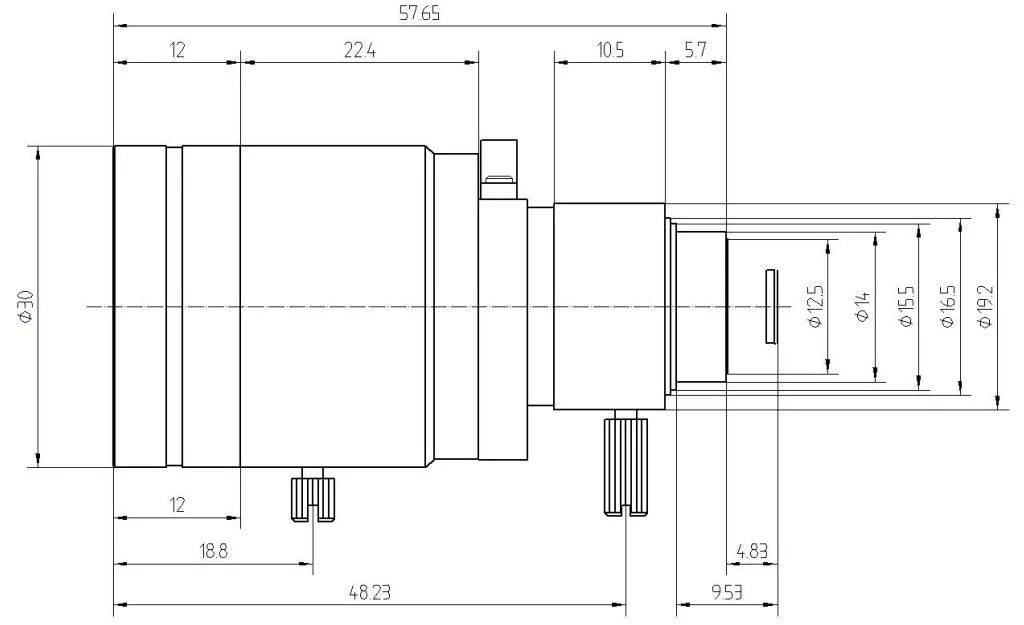

| Size | dia. 30 x 58 |
|---|---|
| Mount | D14 |
| Weight | 15 g |
| Shipping weight (estimated) | 0.12 kg |
Other models in the Varifocal CCTV lenses (LS-CTV-S05) series
See all 73 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTV-0086 | 4-18 mm, 1/1.8", 3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0091 | 2.8-12 mm, 1/2", 3 MP, C-mount | $79.00 | 3 in stock | View |
| LS-CTV-0092 | 2.8-12 mm, 1/2", 3 MP, C-mount | $79.00 | 4 in stock | View |
| LS-CTV-0093 | 6-15 mm, 2/3", 3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0094 | 7-21 mm, 2/3", 3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0095 | 5-50 mm, 1/3", 2 MP, D14-mount | $79.00 | 4 in stock | View |
| LS-CTV-0097 | 5-50 mm, 1/3", 1.3 MP, D14-mount | $79.00 | 4 in stock | View |
| LS-CTV-0098 | 3.6-10 mm, 1/1.8", 6 MP, D14-mount | $79.00 | 5 in stock | View |
| LS-CTV-0099 | 2.5-7.5 mm, 1/3", 3 MP, CS-mount | $79.00 | 3 in stock | View |
| LS-CTV-0100 | 4-15 mm, 1/1.8", 3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0101 | 4-16 mm, 1/1.8", 3 MP, C-mount | $79.00 | 3 in stock | View |
| LS-CTV-0102 | 5-50 mm, 1/2.7", 3 MP, CS-mount | $79.00 | 3 in stock | View |
| LS-CTV-0103 | 5-50 mm, 1/2.7", 5 MP, CS-mount | $79.00 | 3 in stock | View |
| LS-CTV-0104 | 5-50 mm, 1/2.7", 6 MP, CS-mount | $79.00 | 5 in stock | View |
| LS-CTV-0105 | 6-22 mm, 1/2.5", 5 MP, CS-mount | $79.00 | 5 in stock | View |
| LS-CTV-0106 | 7-70 mm, 1/1.8", 3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0108 | 8-50 mm, 1/1.8", 3 MP, C-mount | $79.00 | 3 in stock | View |
| LS-CTV-0132 | 10-120 mm, 1/2", 1.3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0109 | 10-50 mm, 1/2.7", 3 MP, CS-mount | $79.00 | 5 in stock | View |
| LS-CTV-0110 | 10-50 mm, 1/1.7", 5 MP, CS-mount | $79.00 | 5 in stock | View |
| LS-CTV-0133 | 12-120 mm, 1/1.8", 3 MP, C-mount | $79.00 | 2 in stock | View |
| LS-CTV-0115 | 2.6-13 mm, 1/3", 1.3 MP, CS-mount | $79.00 | 2 in stock | View |
| LS-CTV-0116 | 2.7-12 mm, 1/2.7", 3 MP, CS-mount | $79.00 | 4 in stock | View |
| LS-CTV-0118 | 2.8-12 mm, 1/2.7", 3 MP, CS-mount | $79.00 | 3 in stock | View |
