CCTV lenses
5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, 5-50mm (LS-CTV-0102)
Model LS-CTV-0102
- Focal length5-50mm
- MountCS-mount
- Sensor1/2.7"
- ApertureF1.4 DC Iris
- Resolution3.0 Megapixel
$79.00
Ships in 2-3 weeks
0.42 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens. 5-50 mm 1/2.7" 3.0 megapixel DC (auto) iris varifocal CCTV lens, F1.4, IR corrected 400-850 nm, for long-distance ITS, toll gates, entrances and face recognition. At a glance: focal length 5-50mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.4 DC Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0102 |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7", DxHxV) | 61 x 54 x 31 deg |
| Angle of view (1/3", DxHxV) | 56 x 48 x 21.3 deg |
| IR correction | Yes (day & night) |
| Angle of view (1/2.7") | 70 x 50 x 37.5 deg |
Optics
| Focal length | 5-50mm |
|---|---|
| Aperture | F1.4 DC Iris |
| M.O.D. | 1.5m |
| Distortion | <5.1% |
| Back focal length (optical) | 8.1~15.73mm |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|

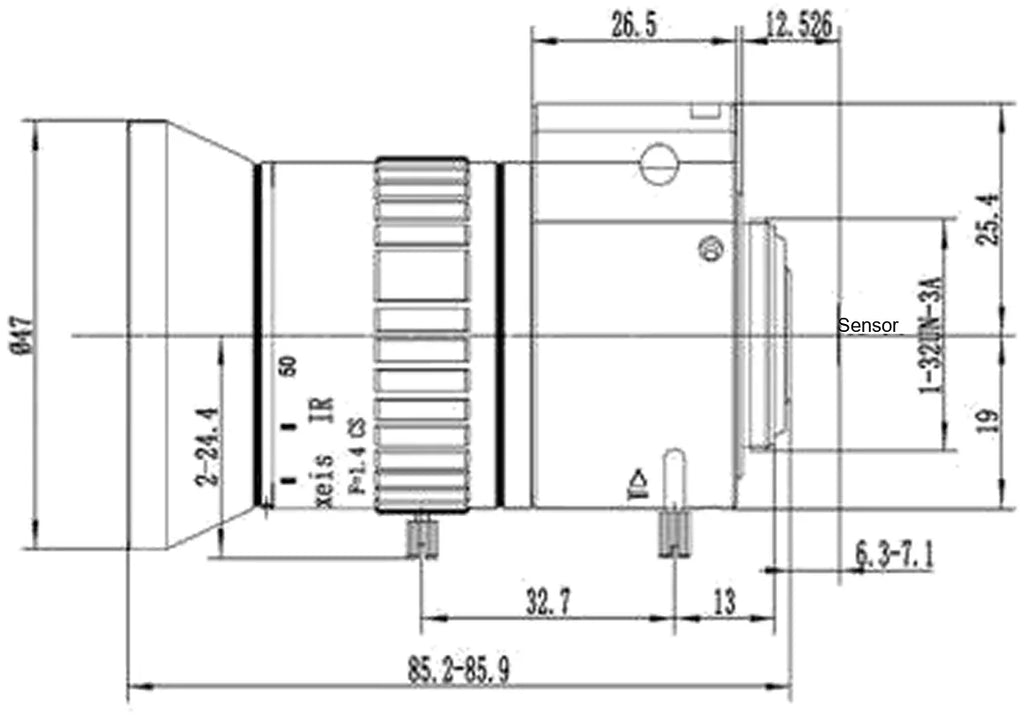

Mechanical
| Size | dia. 44 x 76.7mm |
|---|---|
| Mount | CS |
| Weight | 230g |
| Optical total length | 84.4mm |
| Shipping weight (estimated) | 0.42 kg |
