CCTV lenses
3.6-10 mm, 1/1.8", 6 MP, D14-mount Varifocal CCTV Lens (LS-CTV-0098)
Model LS-CTV-0098
- Focal length3.6-10 mm
- MountD14
- Sensor1/1.8"
- ApertureF1.8 Fixed iris
- Resolution6.0 Megapixel
$79.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.6-10 mm, 1/1.8", 6 MP, D14-mount Varifocal CCTV Lens. 3.6-10 mm F1.8 varifocal 6 megapixel IR-corrected lens with D14 board mount. At a glance: focal length 3.6-10 mm; format 1/1.8"; resolution 6.0 Megapixel; aperture F1.8 Fixed iris; mount D14.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0098 |
|---|---|
| IR correction | IR corrected (day/night) |
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | 117 x 81 deg |
| Angle of view (1/2.5", DxHxV) | 90 x 65 deg |
Optics
| Focal length | 3.6-10 mm |
|---|---|
| Aperture | F1.8 Fixed iris |
| M.O.D. | 0.3 m |
| Distortion | -77% ~ -6.5% |
Sensor and imaging
| Resolution | 6.0 Megapixel |
|---|

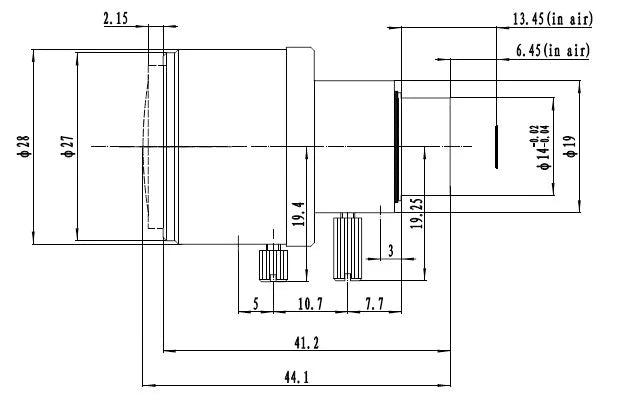

Mechanical
| Size | dia. 28 x 44 |
|---|---|
| Mount | D14 |
| Weight | 33 g |
| Shipping weight (estimated) | 0.15 kg |
