CCTV lenses
4-15 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0100)
Model LS-CTV-0100
- Focal length4-15 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF1.4 DC Iris
- Resolution3.0 Megapixel
$79.00
Ships in 2-3 weeks
0.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4-15 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. 3.0 megapixel 4-15 mm varifocal lens with a 1/1.8" format covering 1/1.8", 1/2" and 1/2.7" cameras. Aspherical element inside. At a glance: focal length 4-15 mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.4 DC Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0100 |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8") | 62 x 10.6 deg |
Optics
| Focal length | 4-15 mm |
|---|---|
| Aperture | F1.4 DC Iris |
| M.O.D. | 0.3 m |
Sensor and imaging
| Resolution | 3.0 Megapixel |
|---|

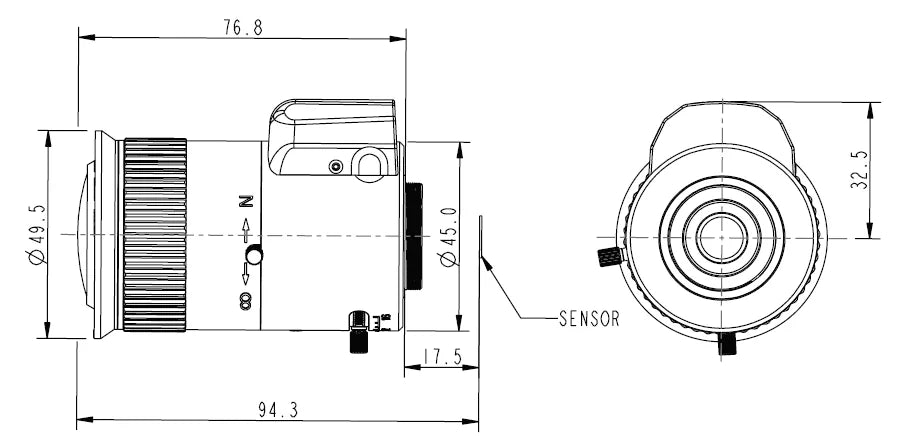

Mechanical
| Size | dia. 90.4 x 50 mm |
|---|---|
| Mount | C |
| Weight | 251 g |
| Shipping weight (estimated) | 0.45 kg |
