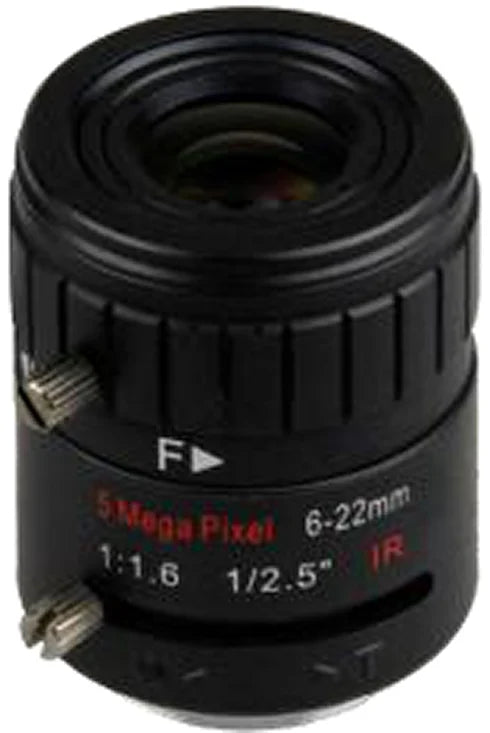

6-22 mm, 1/2.5", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0105)
  • 6-22 mm, 1/2.5", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0105)

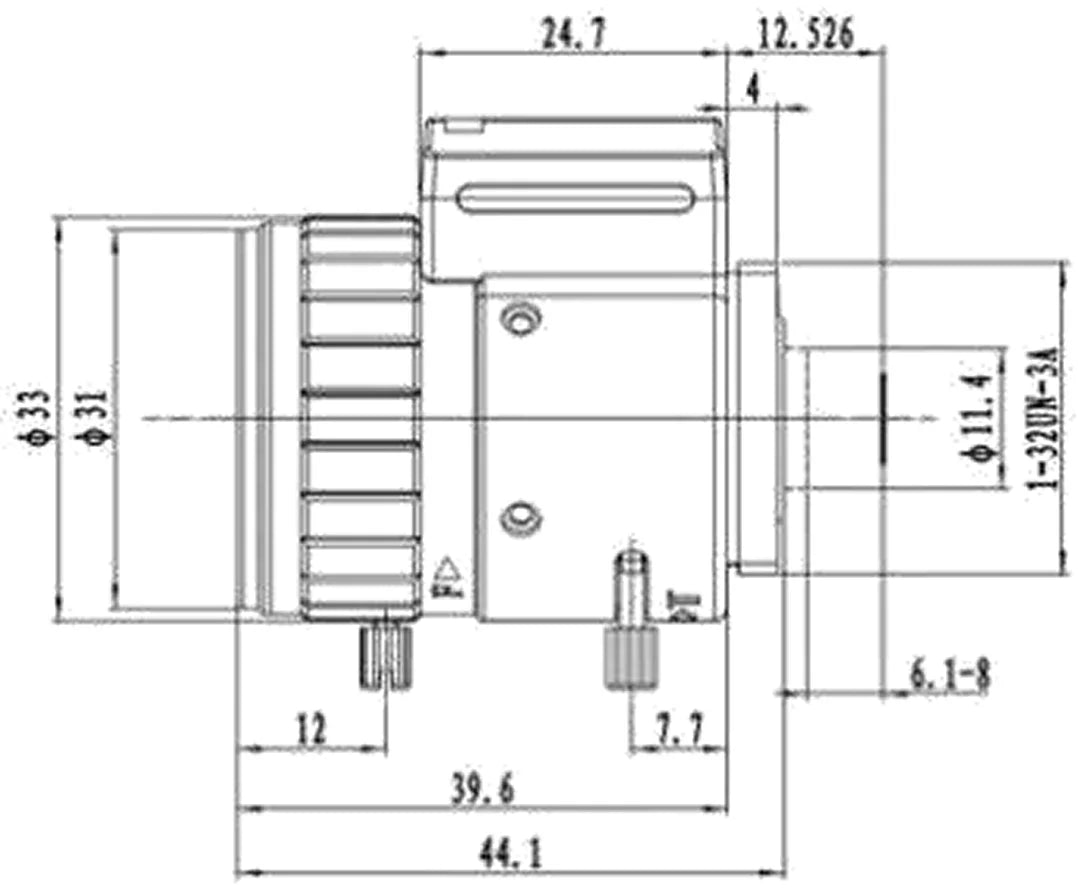

  • LS-CTV-0105 dimensions (mm)

CCTV lenses

6-22 mm, 1/2.5", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0105)

Model LS-CTV-0105

  • Focal length6-22 mm
  • MountCS-mount
  • Sensor1/2.5"
  • ApertureF1.6 DC iris
  • Resolution5.0 Megapixel
$79.00

Ships in 2-3 weeks

0.23 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

6-22 mm, 1/2.5", 5 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0105)LS-CTV-0105

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

6-22 mm, 1/2.5", 5 MP, CS-mount Varifocal CCTV Lens. 5.0 megapixel 6-22 mm varifocal lens for 1/2.5" cameras, covering 5 MP, 3 MP and 1080P. IR-corrected for 24 h day and night; compact size fits all box cameras. At a glance: focal length 6-22 mm; format 1/2.5"; resolution 5.0 Megapixel; aperture F1.6 DC iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0105
IR correctionIR
Format1/2.5"
Angle of view (1/2.5")58 x 46.4 x 34.8 deg

Optics

Focal length6-22 mm
ApertureF1.6 DC iris
M.O.D.0.2 m
Distortion-15.6%

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 18.5 x 16.25 mm
MountCS
Weight95 g
Shipping weight (estimated)0.23 kg

Other models in the Varifocal CCTV lenses (LS-CTV-S05) series

See all 73 models
ModelSize / key dataPriceAvailabilityLink
LS-CTV-0093 6-15 mm, 2/3", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0094 7-21 mm, 2/3", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0095 5-50 mm, 1/3", 2 MP, D14-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0096 5-50 mm, 1/2.7", 3 MP, D14-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0097 5-50 mm, 1/3", 1.3 MP, D14-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0098 3.6-10 mm, 1/1.8", 6 MP, D14-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0099 2.5-7.5 mm, 1/3", 3 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0100 4-15 mm, 1/1.8", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0101 4-16 mm, 1/1.8", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0102 5-50 mm, 1/2.7", 3 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0103 5-50 mm, 1/2.7", 5 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0104 5-50 mm, 1/2.7", 6 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0106 7-70 mm, 1/1.8", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0108 8-50 mm, 1/1.8", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0132 10-120 mm, 1/2", 1.3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0109 10-50 mm, 1/2.7", 3 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0110 10-50 mm, 1/1.7", 5 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0133 12-120 mm, 1/1.8", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0115 2.6-13 mm, 1/3", 1.3 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0116 2.7-12 mm, 1/2.7", 3 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0118 2.8-12 mm, 1/2.7", 3 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0119 2.8-12 mm, 1/2.7", 4 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0120 2.8-12 mm, 1/2.7", 5 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0121 2.9-8 mm, 1/3", 1.3 MP, CS-mount $79.00 Ships in 2-3 weeks View
