5-50 mm, 1/2.7", 6 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0104)
Model LS-CTV-0104
- Focal length5~50mm
- MountCS-mount
- Sensor1/2.7"
- ApertureF1.4 DC iris
- Resolution6.0 Megapixel
$79.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
5-50 mm, 1/2.7", 6 MP, CS-mount Varifocal CCTV Lens. 1/2.7" 5-50 mm 6.0 megapixel DC (auto) iris varifocal CCTV lens, F1.4, IR corrected, compact body with red ring, for ITS, traffic and entrance cameras. At a glance: focal length 5~50mm; format 1/2.7"; resolution 6.0 Megapixel; aperture F1.4 DC iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0104 |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7", DxHxV) | 63 x 50 x 37 deg |
| Angle of view (1/3", DxHxV) | 57 x 45 x 33.4 deg |
| Angle of view (1/4", DxHxV) | 43 x 33.4 x 25 deg |
| Notes | IR Coating 400~850nm |
| IR correction | Yes (day & night) |
Optics
| Focal length | 5~50mm |
|---|---|
| Aperture | F1.4 DC iris |
| M.O.D. | 0.5m |
| Distortion | W -13% ~ -1% T |
| Back focal length (optical) | 7.3mm |
| Mechanical back focal length | 6.8mm |
Sensor and imaging
| Resolution | 6.0 Megapixel |
|---|
Mechanical

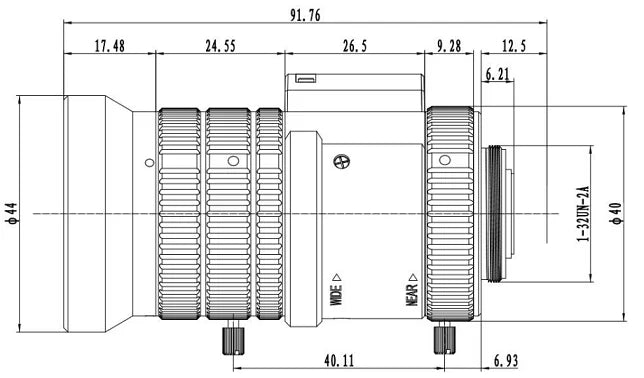

| Size | dia. 44 x 84.45mm |
|---|---|
| Optical total length | 91.76mm |
| Mount | CS |
| Weight | 200g |
| Shipping weight (estimated) | 0.38 kg |
