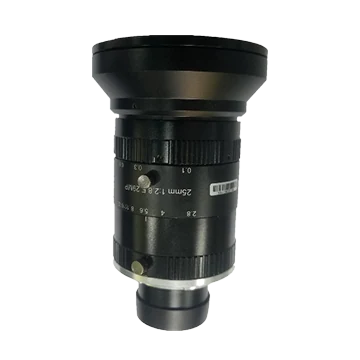

25mm, F2.8, Full frame φ43.2 mm, 29 MP, F-mount lens (LS-LF2528M-F)
Model LS-LF2528M-F
25mm, F2.8, Full frame φ43.2 mm, 29 MP, F-mount lens. Outstanding sharpness uniformity across the image Ultra-low distortion, high relative illumination
Features
- Outstanding sharpness uniformity across the image
- Ultra-low distortion, high relative illumination
- Image circle Φ44 mm; supports large-format area-scan and 8K 5 µm line-scan cameras
Specifications
| Model | LS-LF2528M-F |
|---|---|
| Focal length | 25 mm |
| F-number | F2.8 ~ F32 |
| Image size | Φ43.2 mm |
| Optical distortion | 0.40% |
| Magnification range | 0.17x ~ 0.001x |
| Working distance range | 140 ~ inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M77 × 0.75 |
| Connector type | F-Mount |
| Flange back length | 46.5 mm |
| Dimension | Φ80 × 95.75 mm |
| Weight | 705.7 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 1.09 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LF series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SMV2520M42-29M | 25 mm, 1.76", 29 MP, M42-mount | $609.00 | 4 in stock | View |
| LS-SMV3502F-29M | 35 mm, 29 MP, F-mount | $679.00 | 2 in stock | View |
| LS-SMV3503F-29M | 35 mm, 29 MP, F-mount | $679.00 | 5 in stock | View |
| LS-SMV4010F-29M | 40 mm, 29 MP, F-mount | $709.00 | 2 in stock | View |
| LS-SMV5001F-29M | 50 mm, 29 MP, F-mount | $779.00 | 4 in stock | View |
| LS-SMV5001F-65M | 50 mm, 65 MP, M58-mount | $779.00 | 2 in stock | View |
| LS-SMV5015F-29M | 50 mm, 29 MP, F-mount | $779.00 | 4 in stock | View |
| LS-SMV6016F-29M | 60 mm, 29 MP, F-mount | $839.00 | 5 in stock | View |
| LS-SMV8001-65M | 80 mm, 65 MP, M58-mount | $969.00 | 4 in stock | View |
| LS-SMV8003F-29M | 80 mm, 29 MP, F-mount | $969.00 | 4 in stock | View |
| LS-SMV9001AF-65M | 90 mm, 65 MP, F-mount | $1,039.00 | 2 in stock | View |
| LS-SMV9005F-29M | 90 mm, 29 MP, F-mount | $1,039.00 | 2 in stock | View |
| LS-SMV9015F-65M | 90 mm, 65 MP, F-mount | $1,039.00 | 2 in stock | View |
| LS-LF3528M-F | $1,079.00 | 2 in stock | View | |
| LS-LF3540M-F | $1,079.00 | 5 in stock | View | |
| LS-LF5040M-F | $1,079.00 | 4 in stock | View | |
| LS-LF8040M-F | $1,079.00 | 3 in stock | View | |
| LS-LF5545M-M72 | $1,079.00 | 4 in stock | View |
