Machine vision lenses
50 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-SMV5001F-65M)
Model LS-SMV5001F-65M
50 mm, 65 MP, M58-mount Large-Format Machine Vision Lens. A 50 mm M58/F-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 46 mm image circle, -0.2% distortion and 0.5x-0.02x magnification. At a glance: magnification 0.5x-0.02x; working distance vs magnification 0.02X: 2500 mm; 0.06X: 800 mm; 0.16X: 300 mm; 0.3X: 150 mm; 0.5X: 80 mm; focal length 50 mm ±5%; resolution 65 Megapixel; aperture F3.6-22.
Features
- 65 megapixel resolution, covering 8K
- M58 / F mount
- 0.2% low distortion
- Working distance 80-2500 mm
- Magnification 0.5x-0.02x
Specifications
| Model | LS-SMV5001F-65M |
|---|---|
| Focal length | 50 mm ±5% |
| Image circle | dia. 46 mm |
| Resolution | 65 Megapixel |
| Aperture | F3.6-22 |
| Magnification | 0.5x-0.02x |
| Working distance vs magnification | 0.02X: 2500 mm; 0.06X: 800 mm; 0.16X: 300 mm; 0.3X: 150 mm; 0.5X: 80 mm |
| Angle of view (D) | 43.4 deg |
| Flange focal distance | 12 mm |
| Entrance pupil diameter | dia. 47.2 mm |
| TV distortion | <0.2% |

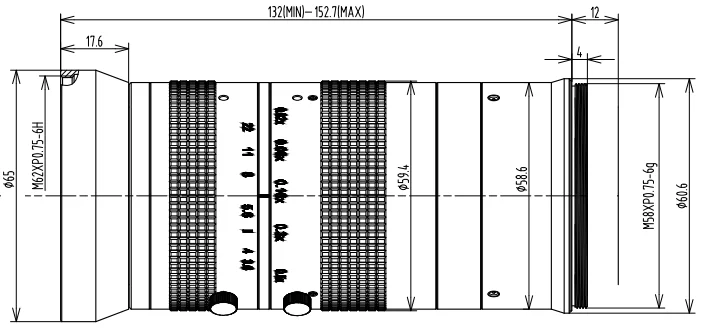

| Size | dia. 65 x 152.7 mm |
| Front thread | M62 x P0.75 |
| Mount | M58 x P0.75 |
| Shipping weight (estimated) | 1.08 kg |
Applications
- Scanning
- Automation
- Machine vision
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Large-Format Machine Vision lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SMV2520M42-29M | 25 mm, 1.76", 29 MP, M42-mount | $609.00 | 4 in stock | View |
| LS-SMV3502F-29M | 35 mm, 29 MP, F-mount | $679.00 | 2 in stock | View |
| LS-SMV3503F-29M | 35 mm, 29 MP, F-mount | $679.00 | 5 in stock | View |
| LS-SMV4010F-29M | 40 mm, 29 MP, F-mount | $709.00 | 2 in stock | View |
| LS-SMV5001F-29M | 50 mm, 29 MP, F-mount | $779.00 | 4 in stock | View |
| LS-SMV5015F-29M | 50 mm, 29 MP, F-mount | $779.00 | 4 in stock | View |
| LS-SMV6016F-29M | 60 mm, 29 MP, F-mount | $839.00 | 5 in stock | View |
| LS-SMV8001-65M | 80 mm, 65 MP, M58-mount | $969.00 | 4 in stock | View |
| LS-SMV8003F-29M | 80 mm, 29 MP, F-mount | $969.00 | 4 in stock | View |
| LS-SMV9001AF-65M | 90 mm, 65 MP, F-mount | $1,039.00 | 2 in stock | View |
| LS-SMV9005F-29M | 90 mm, 29 MP, F-mount | $1,039.00 | 2 in stock | View |
| LS-SMV9015F-65M | 90 mm, 65 MP, F-mount | $1,039.00 | 2 in stock | View |
| LS-LF3528M-F | $1,079.00 | 2 in stock | View | |
| LS-LF3540M-F | $1,079.00 | 5 in stock | View | |
| LS-LF5040M-F | $1,079.00 | 4 in stock | View | |
| LS-LF8040M-F | $1,079.00 | 3 in stock | View | |
| LS-LF5545M-M72 | $1,079.00 | 4 in stock | View |
