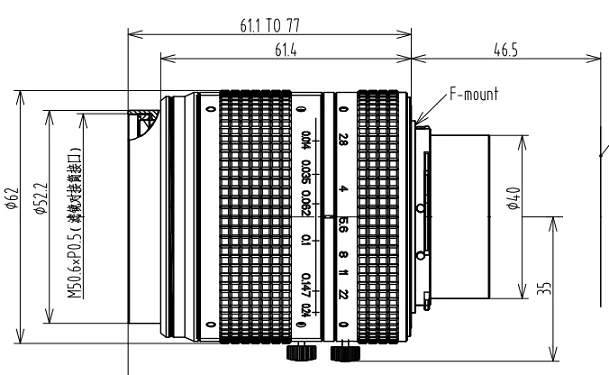

50 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV5015F-29M)
Model LS-SMV5015F-29M
50 mm, 29 MP, F-mount Large-Format Machine Vision Lens. A 50 mm F-mount large-format machine vision lens for 29 megapixel 5/7 um 4K sensors with a 44 mm image circle, <0.3% distortion and 0.24x-0.014x magnification. At a glance: magnification 0.24x-0.014x; working distance vs magnification 0.24X: 233.4 mm; 0.1X: 528 mm; 0.062X: 833.4 mm; 0.035X: 1447.5 mm; 0.014X: 3585.9 mm; focal length 50 mm ±5%; resolution 29 Megapixel; aperture F2.8-22.
Features
- 29 megapixel resolution, covering 4K and 1080P
- F mount
- <0.3% low distortion
- Working distance 233-3585 mm
- Magnification 0.24x-0.014x
Specifications
| Model | LS-SMV5015F-29M |
|---|---|
| Focal length | 50 mm ±5% |
| Image circle | dia. 44 mm |
| Resolution | 29 Megapixel |
| Aperture | F2.8-22 |
| Magnification | 0.24x-0.014x |
| Working distance vs magnification | 0.24X: 233.4 mm; 0.1X: 528 mm; 0.062X: 833.4 mm; 0.035X: 1447.5 mm; 0.014X: 3585.9 mm |
| Angle of view (D) | 47 deg |
| Flange focal distance | 46.5 mm |
| Entrance pupil diameter | dia. 18.1 mm |
| TV distortion | <0.3% |
| Size | dia. 62 x 77 mm |
| Front thread | M50.6 x P0.5 (filter adapter) |
| Mount | F |
| Shipping weight (estimated) | 1.08 kg |
Applications
- Scanning
- Automation
- Machine vision
