25 mm, 1.76", 29 MP, M42-mount Large-Format Machine Vision Lens (LS-SMV2520M42-29M)

Machine vision lenses

25 mm, 1.76", 29 MP, M42-mount Large-Format Machine Vision Lens (LS-SMV2520M42-29M)

Model LS-SMV2520M42-29M

25 mm, 1.76", 29 MP, M42-mount Large-Format Machine Vision Lens. 25 mm F2.0 29 megapixel machine vision lens for 1.76" large-format cameras, M42 x 1 mount, <1.5% distortion. At a glance: focal length 25 mm; format 1.76"; resolution 29 Megapixel; aperture F2.0 Manual Iris; mount M42 x 1.

$609.00 USDIn stock · 4 available

Inventory updated Oct 14, 2026

0.55 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • High resolution: 29 megapixel, covers 8K and 1080P
  • Large format: 1.76" cameras
  • Mount: M42
  • Low distortion: <1.5%, for FA machine vision

Specifications

ModelLS-SMV2520M42-29M
Resolution29 Megapixel
Format1.76"
Focal length25 mm
ApertureF2.0 Manual Iris
Angle of view (1.76", DxHxV)58.9 x 48.5 x 37 deg
M.O.D.0.3 m
Distortion<1.5%
Filter threadM62 x 0.75
Sizedia. 64 x 109
MountM42 x 1
Weight320 g

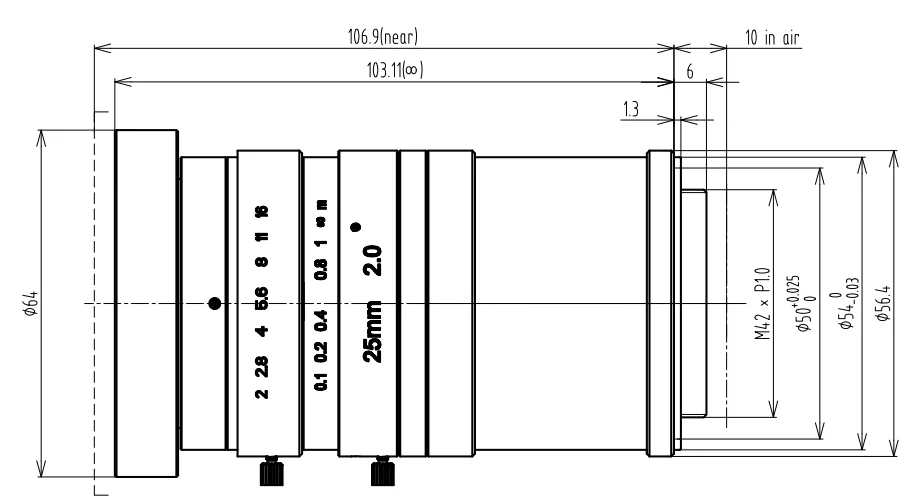

Back focus10 mm (in air), per drawing
Shipping weight (estimated)0.55 kg

Applications

  • Automation
  • Machine vision
  • Medical
  • Life science
  • ITS
  • SMT
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the Large-Format Machine Vision lenses series

ModelSizePriceAvailability
LS-SMV3502F-29M35 mm, 29 MP, F-mount $679.00 2 in stockView
LS-SMV3503F-29M35 mm, 29 MP, F-mount $679.00 5 in stockView
LS-SMV4010F-29M40 mm, 29 MP, F-mount $709.00 2 in stockView
LS-SMV5001F-29M50 mm, 29 MP, F-mount $779.00 4 in stockView
LS-SMV5001F-65M50 mm, 65 MP, M58-mount $779.00 2 in stockView
LS-SMV5015F-29M50 mm, 29 MP, F-mount $779.00 4 in stockView
LS-SMV6016F-29M60 mm, 29 MP, F-mount $839.00 5 in stockView
LS-SMV8001-65M80 mm, 65 MP, M58-mount $969.00 4 in stockView
LS-SMV8003F-29M80 mm, 29 MP, F-mount $969.00 4 in stockView
LS-SMV9001AF-65M90 mm, 65 MP, F-mount $1,039.00 2 in stockView
LS-SMV9005F-29M90 mm, 29 MP, F-mount $1,039.00 2 in stockView
LS-SMV9015F-65M90 mm, 65 MP, F-mount $1,039.00 2 in stockView
