40 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV4010F-29M)
Model LS-SMV4010F-29M
40 mm, 29 MP, F-mount Large-Format Machine Vision Lens. 40 mm F2.8 large-format F-mount lens covering a dia. 43 mm image, rated 29 megapixel (up to 5 um pixels, 4K line scan), with <0.2% distortion. Described as a line-scan industrial lens for packaging, printing and similar work. At a glance: magnification / w.d. (mm) / fov 0.01x: 4000, 1085; 0.1x: 436, 403; 0.238x: 200, 131; focal length 40 mm; format dia. 43; resolution 29 Megapixel (up to 5μ); aperture F2.8~22.
Features
- High resolution: 29 megapixel cover all 4K & 1080P
- Mount type: F mount
- Low distortion: <0.2% low distortion use machine vision ITS
- Magnification: 0.01x~0.238x
Specifications
| Model | LS-SMV4010F-29M |
|---|---|
| Format | dia. 43 |
| Resolution | 29 Megapixel (up to 5μ) |
| Focal length | 40 mm |
| Aperture | F2.8~22 |
| Distortion | <0.2% |
| Magnification / W.D. (mm) / FOV (mm) | 0.01x: 4000, 1085; 0.1x: 436, 403; 0.238x: 200, 131 |
| M.O.D. | 0.2 m |
| Reference W.D. | 409 mm |
| Filter size | M62 x 0.75 |
| Relative illumination | 40% |
| Mount | F |
| Weight | 200 g |

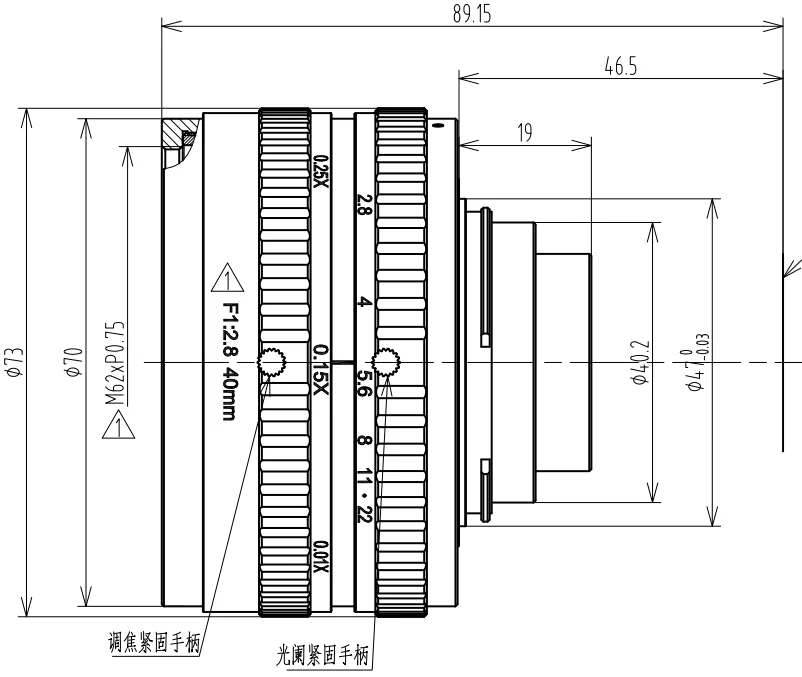

| Size (from drawing) | dia. 73 x 89.15 mm |
| Shipping weight (estimated) | 0.38 kg |
Applications
- Scanning
- Automation
- Machine vision
- Medical
- Life science
- Packaging
