Machine vision lenses

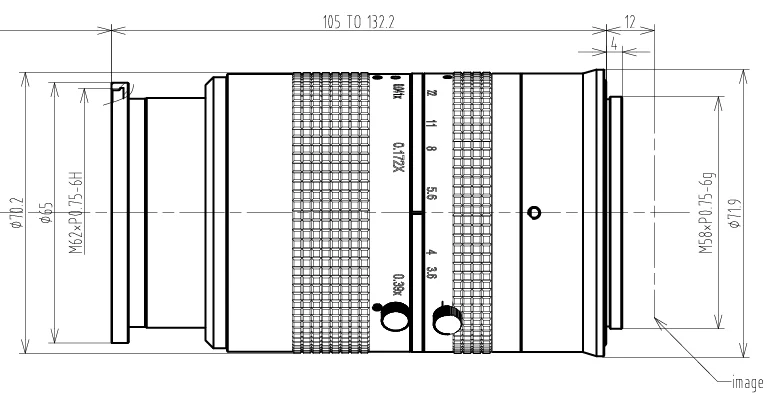

80 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-SMV8001-65M)
Model LS-SMV8001-65M
80 mm, 65 MP, M58-mount Large-Format Machine Vision Lens. An 80 mm M58-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 46 mm image circle, 0.2% distortion and 0.041x-0.39x magnification. At a glance: magnification 0.041x-0.39x; working distance vs magnification 0.041X: 2000 mm; 0.172X: 500 mm; 0.39X: 235 mm; focal length 80 mm ±5%; resolution 65 Megapixel; aperture F3.6-22.
Features
- 65 megapixel resolution, covering 8K
- M58 mount
- 0.2% low distortion
- Working distance 235-2000 mm
- Magnification 0.041x-0.39x
Specifications
| Model | LS-SMV8001-65M |
|---|---|
| Focal length | 80 mm ±5% |
| Image circle | dia. 46 mm |
| Resolution | 65 Megapixel |
| Aperture | F3.6-22 |
| Magnification | 0.041x-0.39x |
| Working distance vs magnification | 0.041X: 2000 mm; 0.172X: 500 mm; 0.39X: 235 mm |
| Angle of view (D) | 26.8 deg |
| Flange focal distance | 12 mm |
| Entrance pupil diameter | dia. 47.2 mm |
| TV distortion | <0.2% |
| Size | dia. 69.8 x 133.5 mm |
| Front thread | M62 x P0.75 |
| Mount | M58 x P0.75 |
| Shipping weight (estimated) | 1.08 kg |
Applications
- Scanning
- Automation
- Machine vision
