35 mm, 29 MP, F-mount Large-Format Machine Vision Lens (LS-SMV3503F-29M)
Model LS-SMV3503F-29M
35 mm, 29 MP, F-mount Large-Format Machine Vision Lens. 35 mm F2.8 large-format area-scan lens with 29 megapixel resolution, F mount and <0.5% distortion, for working distances of 340-3500 mm at 0.03x magnification. At a glance: magnification 0.03x; working distance 340-3500 mm; focal length 35 mm; format dia. 45; resolution 29 Megapixel.
Features
- High resolution: 29 megapixel, covers 4K and 1080P
- Mount: F mount
- Low distortion: <0.5%, for machine vision and ITS
- Working distance: 340-3500 mm
- Magnification: 0.03x
Specifications
| Model | LS-SMV3503F-29M |
|---|---|
| Resolution | 29 Megapixel |
| Format | dia. 45 |
| Focal length | 35 mm |
| Aperture | F2.8 Manual Iris |
| Working distance | 340-3500 mm |
| Magnification | 0.03x |
| Distortion | <0.5% |
| Filter thread | M67 x 0.75 |

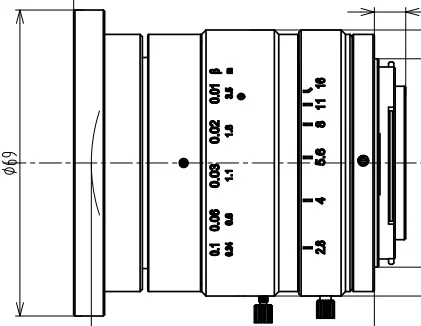

| Size | dia. 69 x 74.7 |
| Mount | F |
| Weight | 320 g |
| Angle of view (dia. 45, D) | 65 deg |
| Max. image circle | dia. 45.3 |
| Back focal length | 46.5 mm (in air) |
| Entrance pupil diameter | dia. 12.2 |
| Working distance at 0.01x / 0.03x / 0.1x | 3500 / 1158.7 / 340 mm |
| Object dimension at 0.01x / 0.03x / 0.1x (image 36.2 x 24.1) | 3664 x 2432 / 1224.6 x 812 / 368.8 x 243.9 mm |
| Shipping weight (estimated) | 0.55 kg |
Applications
- Scanning
- Automation
- Machine vision
- Medical
- Life science
- ITS
