Machine vision lenses

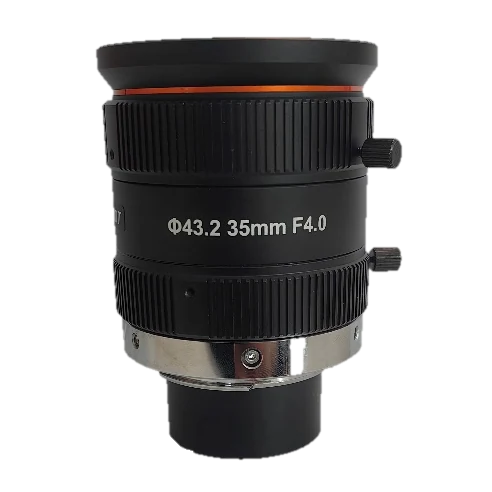

35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X, F-Mount (LS-LF3540M-F)
Model LS-LF3540M-F
35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X, F-Mount. Adopts high-precision lens for 8k 5 μm line scan cameras and full-frame area scan cameras. Provides excellent consistency of image clarity and low distortion.
Features
- Adopts high-precision lens for 8k 5 μm line scan cameras and full-frame area scan cameras.
- Provides excellent consistency of image clarity and low distortion.
- Provides ultra-high image resolution at the max. aperture of F4.
- Provides max. image size Φ43.2 mm.
Specifications
| Model | LS-LF3540M-F |
|---|---|
| Focal length | 35 mm |
| F-number | F4.0 to F16 |
| Image size | Φ43.2 mm |
| Optical distortion | 0.46% |
| Magnification range | 0.05 x to 0.001 x |
| Working distance range | 700 mm to inf mm (tolerance: ±5 mm) |
| Conjugate distance range | 816 mm to inf mm (tolerance: ±9 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M52 × P0.75 |
| Mount | F-mount |
| Flange back length | 46.5 mm |
| Dimension | Φ61 mm × 67.12 mm to 73.62 mm (Φ2.4" × 2.6" to 2.9") |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
