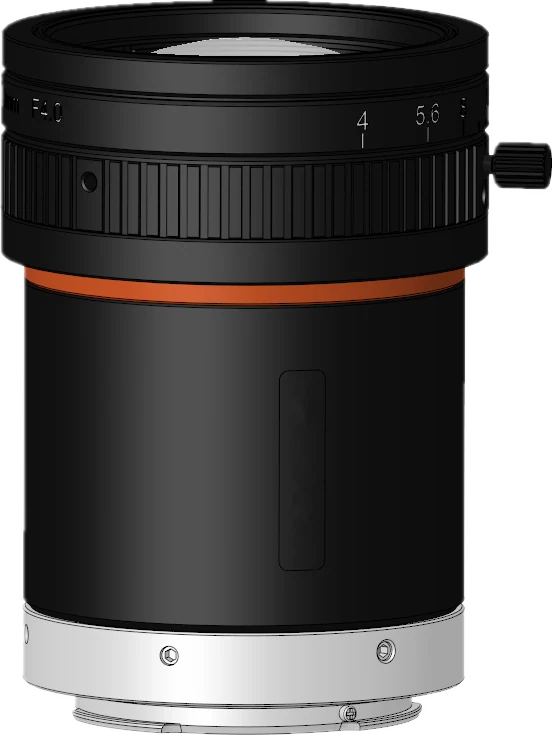

80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount (LS-LF8040M-F)
Model LS-LF8040M-F
80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount. Ultra-high central image clarity, up to 3.1µm resolution Low distortion and high relative illumination
Features
- Ultra-high central image clarity, up to 3.1µm resolution
- Low distortion and high relative illumination
- Image size Φ56 mm, supporting large target area scan cameras, 8K 5µm, 8K 7µm, 16K 3.5µm line scan cameras
- Optimize optical design for different magnification
Specifications
| Model | LS-LF8040M-F |
|---|---|
| Focal length | 80 mm |
| F-number | F4.0 to F22 |
| Image size | Ø56 mm |
| Optical distortion | 0.12% |
| Magnification range | 0.4x to 0.01x |
| Working distance range | 235 mm to inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M52 × 0.75 |
| Mount | F-moun |
| Flange back length | 46.5 mm |
| Dimension | Ø63 mm × 120.5 mm (Ø2.48'' × 44.74'') |
| Weight | 601.0 g (1.32 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.94 kg |
