90 mm, 65 MP, F-mount Large-Format Machine Vision Lens (LS-SMV9015F-65M)
Model LS-SMV9015F-65M
90 mm, 65 MP, F-mount Large-Format Machine Vision Lens. A 90 mm F-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 64 mm image circle, 0.05% distortion and 0.192x-0.118x magnification. At a glance: magnification 0.192x-0.118x; working distance vs magnification 0.192X: 530.3 ±5 mm; 0.155X: 651.1 ±5 mm; 0.118X: 845.7 ±5 mm; focal length 90 mm; resolution 65 Megapixel; aperture F4.0-16.
Features
- 65 megapixel resolution, covering 8K
- F mount
- <0.05% low distortion
- Working distance 530-845 mm
- Magnification 0.192x-0.118x
Specifications
| Model | LS-SMV9015F-65M |
|---|---|
| Focal length | 90 mm |
| Image circle | dia. 64 mm |
| Resolution | 65 Megapixel |
| Aperture | F4.0-16 |
| Magnification | 0.192x-0.118x |
| Working distance vs magnification | 0.192X: 530.3 ±5 mm; 0.155X: 651.1 ±5 mm; 0.118X: 845.7 ±5 mm |
| Conjugate distance | 671.8 ±9 / 792.6 ±9 / 987.2 ±9 mm |
| Flange focal distance | 46.5 ±0.5 mm |
| Distortion | 0.05% |
| Resolving power | 200 lp/mm axis; 125 lp/mm at dia. 46.2 and dia. 66 |
| Image space N.A. | 0.1 |
| Object space N.A. | 0.01 |
| Entrance pupil diameter | 21.58 mm |

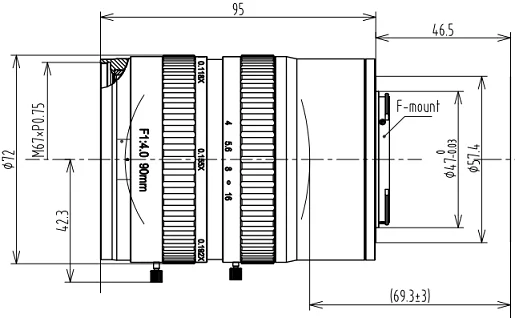

| Size | dia. 72 x 95 mm (drawing) |
| Filter thread | M67 x P0.75 |
| Mount | F |
| Shipping weight (estimated) | 1.08 kg |
Applications
- Scanning
- Automation
- Machine vision
