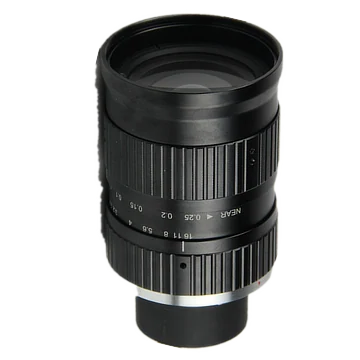

35mm, F2.8, Full Frame φ43.2mm, 29MP Lens, F-Mount (LS-LF3528M-F)
Model LS-LF3528M-F
35mm, F2.8, Full Frame φ43.2mm, 29MP Lens, F-Mount. Provides ultra-high consistency of image clarity. Provides ultra-low distortion and high peripheral brightness ratio.
Features
- Provides ultra-high consistency of image clarity.
- Provides ultra-low distortion and high peripheral brightness ratio.
- Provides image size Φ43.2 mm for large format area scan and 8k 5 μm line scan cameras.
- Optimizes optical designs for magnification.
Specifications
| Model | LS-LF3528M-F |
|---|---|
| Focal length | 35 mm |
| F-number | F2.8 to F16 |
| Image size | Φ43.2 mm |
| Optical distortion | 0.40% |
| Magnification range | 0.25 x to 0.05 x |
| Working distance range | 129 mm to 728 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M58 × 0.75 |
| Mount | F-mount |
| Flange back length | 46.5 mm |
| Dimension | Φ61 mm × 81.5 mm (Φ2.4" × 3.2") |
| Weight | 536 g (1.2 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.85 kg |
