Lenses

C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

553-576 of 1330 models

Products

Compare
LS-FFL-042845 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens 45 mm0.1xC-mount1/1.8"F8.5 Fixed iris6.0 Megapixel$309.00 Ships in 2-3 weeks
LS-FFL-043043 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens 43 mm0.9xC-mount1/1.8"F8.5 Fixed iris6.0 Megapixel$309.00 Ships in 2-3 weeks
LS-FFL-043935 mm, 2/3", 8 MP, C-mount anti-vibration machine vision lens 35 mm0.024x ~ 0.195xC-mount2/3"F2.4 Manual iris8.0 Megapixel (2.74 μm)$289.00 Ships in 2-3 weeks
LS-FFL-043535 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.2x 35 mm0.2xC-mount1/1.8"F5.6 Fixed iris6.0 Megapixel$289.00 Ships in 2-3 weeks
LS-FFL-043335 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.1x 35 mm0.1xC-mount1/1.8"F5.6 Fixed iris6.0 Megapixel$289.00 Ships in 2-3 weeks
LS-FFL-043825 mm, 2/3", 8 MP, C-mount anti-vibration machine vision lens 25 mm0.017x ~ 0.129xC-mount2/3"F2.4 Manual iris8.0 Megapixel (2.74 μm)$269.00 Ships in 2-3 weeks
LS-FFL-042925 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.3x, WD 88 mm 25 mm0.3xC-mount1/1.8"F6.5 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-043625 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.3x, WD 135 mm 25 mm0.3xC-mount1/1.8"F6.0 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-043425 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.2x, WD 130 mm 25 mm0.2xC-mount1/1.8"F5.6 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-043225 mm, 1/1.8", 6 MP, C-mount anti-vibration machine vision lens, 0.1x, WD 252 mm 25 mm0.1xC-mount1/1.8"F5.6 Fixed iris6.0 Megapixel$269.00 Ships in 2-3 weeks
LS-FFL-043716 mm, 2/3", 8 MP, C-mount anti-vibration machine vision lens 16 mm0.011x ~ 0.101xC-mount2/3"F2.4 Manual iris8.0 Megapixel (2.74 μm)$249.00 Ships in 2-3 weeks
LS-FFL-149950 mm, F2.8, 2/3", 5 MP lens, C-mount 50 mm-C-mount2/3"F2.8 to F16-$209.00Quote Ships in 2-3 weeks
LS-FFL-149835 mm, F1.8, 2/3", 5 MP lens, C-mount 35 mm-C-mount2/3"F1.8 to F16-$209.00Quote Ships in 2-3 weeks
LS-FFL-149725 mm, F1.8, 2/3", 5 MP lens, C-mount 25 mm-C-mount2/3"F1.8 to F16-$209.00Quote Ships in 2-3 weeks
LS-FFL-149616 mm, F1.8, 2/3", 5 MP lens, C-mount 16 mm-C-mount2/3"F1.8 to F16-$209.00Quote Ships in 2-3 weeks
LS-FFL-149512 mm, F2.4, 2/3", 5 MP lens, C-mount 12 mm-C-mount2/3"F2.4 to F16-$209.00Quote Ships in 2-3 weeks
LS-FFL-14948 mm, F2.4, 2/3", 5 MP lens, C-mount 8 mm-C-mount2/3"F2.4 to F16-$209.00Quote Ships in 2-3 weeks
LS-FFL-140050 mm, F2.8, 1.1", 12 MP lens, C-mount, size Ø38 mm × 53.9 mm 50 mm-C-mount1.1"F2.8 to F22-$309.00Quote Ships in 2-3 weeks
LS-FFL-139935 mm, F2.8, 1.1", 12 MP lens, C-mount, size Ø38 mm × 47.6 mm 35 mm-C-mount1.1"F2.8 to F22-$309.00Quote Ships in 2-3 weeks
LS-FFL-139825 mm, F2.8, 1.1", 12 MP lens, C-mount, size Ø37 mm × 82 mm 25 mm-C-mount1.1"F2.8 to F22-$309.00Quote Ships in 2-3 weeks
LS-FFL-139612 mm, F2.8, 1.1", 12 MP lens, C-mount, size Ø48 mm × 71.32 mm 12 mm-C-mount1.1"F2.8 to F22-$309.00Quote Ships in 2-3 weeks
LS-FFL-13958 mm, F1.4, 1.1", 12 MP lens, C-mount 8 mm-C-mount1.1"F1.4 to F16-$309.00Quote Ships in 2-3 weeks

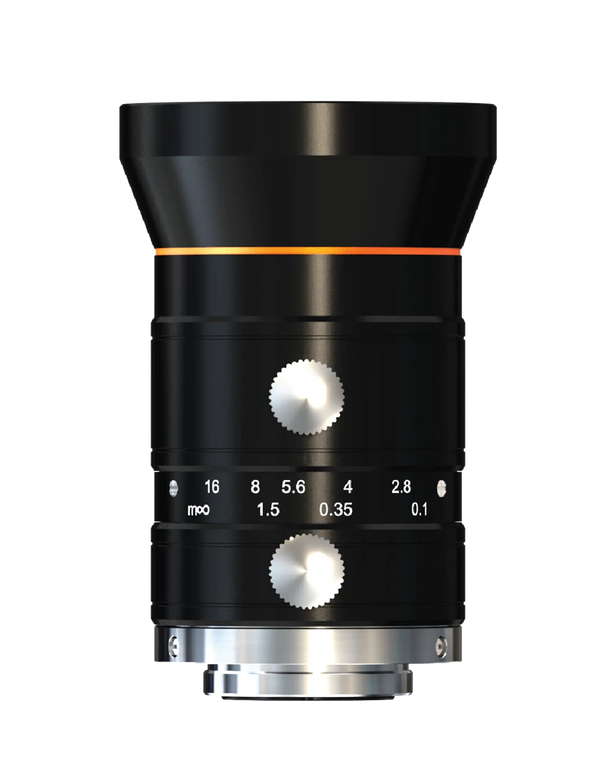

LS-FFL-139716 mm, F2.8, 1.1", 12 MP lens, C-mount, size Ø45.6 mm × 68.2 mm 16 mm-C-mount1.1"F2.8 to F16-$229.00Quote Ships in 2-3 weeks
LS-FFL-1646Liquid lens rear module, 1.1", C-mount --C-mount1.1"--$959.00 Ships in 2-3 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.

Configure a system · Browse all Machine vision lenses
