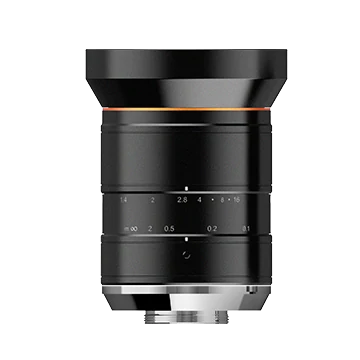

8mm, F1.4, 1.1", 12MP Lens, C-Mount (LS-KF0814M-12MPE)

Machine vision lenses

8mm, F1.4, 1.1", 12MP Lens, C-Mount (LS-FFL-1395)

Model LS-FFL-1395

Focal length8 mm
MountC-mount
Sensor1.1"
ApertureF1.4 to F16

$309.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.62 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

8mm, F1.4, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1395
Minimum object distance	0.1 m
Close-up with extension tube	1 mm tube, near focus: WD 16.32 mm, magnification -0.193; 1 mm tube, far focus: WD 35.02 mm, magnification -0.133

Optics

Focal length	8 mm
F-number	F1.4 to F16
Image size	Ø17.6 mm (1.1")
Distortion	5.5%
Field of view	D (17.52 mm): 98.4°; H (14.14 mm): 84.8°; V (10.35 mm): 68°
Iris control	Manual
Focus control	Manual
Filter thread	M58 × 0.75
Magnification at working distance (mm)	100: -0.064; 150: -0.046; 200: -0.036; 250: -0.030; 300: -0.025; 350: -0.022; 400: -0.019; 450: -0.017; 500: -0.016; 550: -0.014; 600: -0.013; 650: -0.012; 700: -0.011; 800: -0.010; 900: -0.009; 1000: -0.008
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	100: 220.08 x 161.09; 150: 305.62 x 223.71; 200: 391.47 x 286.54; 250: 477.70 x 349.66; 300: 563.35 x 412.35; 350: 649.52 x 475.42; 400: 736.46 x 539.06; 450: 822.09 x 601.74; 500: 912.26 x 667.74; 550: 995.77 x 728.87; 600: 1087.69 x 796.15; 650: 1168.60 x 855.37; 700: 1262.50 x 924.11; 800: 1428.28 x 1045.45; 900: 1606.82 x 1176.14; 1000: 1789.87 x 1310.13
Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm)	100: 193.93 x 153.12; 150: 269.10 x 212.47; 200: 344.68 x 272.15; 250: 420.61 x 332.09; 300: 496.02 x 391.63; 350: 571.89 x 451.54; 400: 648.44 x 511.98; 450: 723.84 x 571.51; 500: 803.23 x 634.19; 550: 876.76 x 692.25; 600: 957.69 x 756.15; 650: 1028.93 x 812.40; 700: 1111.61 x 877.68; 800: 1257.58 x 992.93; 900: 1414.77 x 1117.05; 1000: 1575.95 x 1244.30
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	100: 131.62 x 110.12; 150: 182.64 x 152.81; 200: 233.94 x 195.74; 250: 285.47 x 238.85; 300: 336.65 x 281.67; 350: 388.15 x 324.76; 400: 440.10 x 368.23; 450: 491.28 x 411.05; 500: 545.16 x 456.13; 550: 595.07 x 497.89; 600: 650.00 x 543.85; 650: 698.35 x 584.30; 700: 754.46 x 631.25; 800: 853.54 x 714.14; 900: 960.23 x 803.41; 1000: 1069.62 x 894.94

Environment and compliance

Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Mount	C-mount
Flange back length	17.526 mm

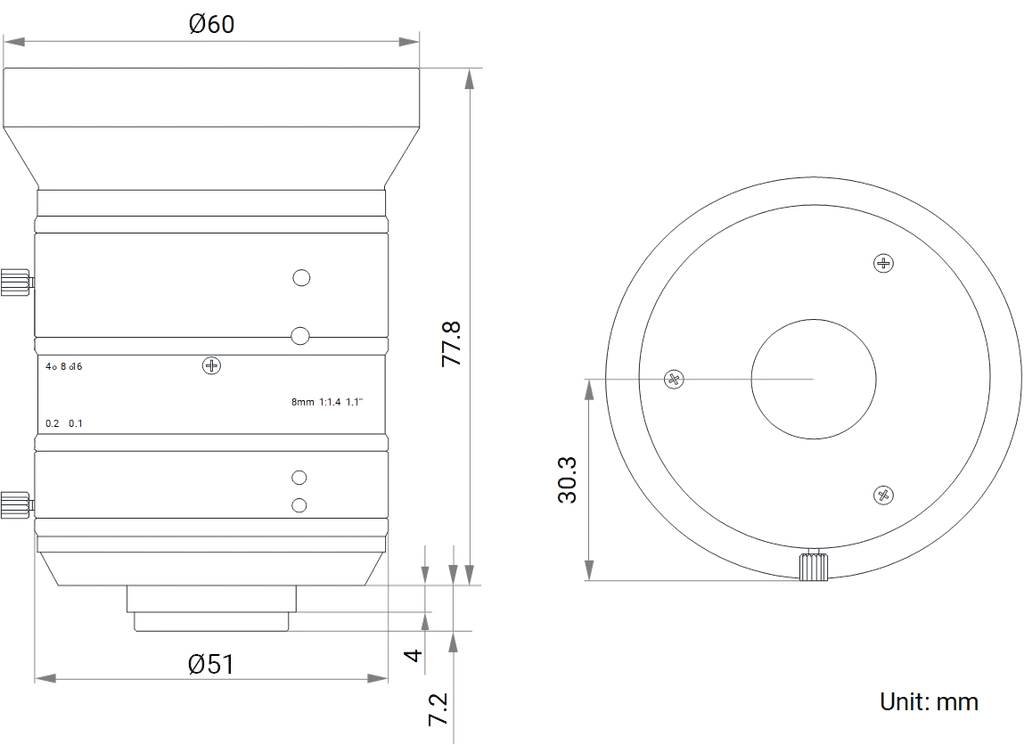

Dimension	Ø60 mm × 77.8 mm (Ø2.4" x 3.1")
Weight	371 g (0.8 lb.)
Shipping weight (estimated)	0.62 kg
