Machine vision lenses

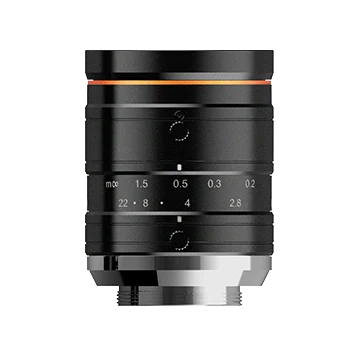

35mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø38 mm × 47.6 mm (LS-FFL-1399)
Model LS-FFL-1399
- Focal length35 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8 to F22
$309.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.25 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
35mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Super high image peripheral brightness ratio
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1399 |
|---|---|
| Minimum object distance | 0.2 m |
| Close-up with extension tube | 10 mm tube, near focus: WD 81.14 mm, magnification -0.466; 10 mm tube, far focus: WD 83.12 mm, magnification -0.454; 5 mm tube, near focus: WD 114.09 mm, magnification -0.324; 5 mm tube, far focus: WD 118.78 mm, magnification -0.310; 2 mm tube, near focus: WD 152.72 mm, magnification -0.239; 2 mm tube, far focus: WD 161.65 mm, magnification -0.225; 1 mm tube, near focus: WD 172.52 mm, magnification -0.210; 1 mm tube, far focus: WD 184.39 mm, magnification -0.196 |
Optics
| Focal length | 35 mm |
|---|---|
| F-number | F2.8 to F22 |
| Image size | Ø17.6 mm (1.1") |
| Distortion | 0.02% |
| Field of view | D (17.52 mm): 28.3°; H (14.14 mm): 22.6°; V (10.35 mm): 17° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5 × 0.5 |
| Magnification at working distance (mm) | 200: -0.180; 250: -0.144; 300: -0.119; 350: -0.100; 400: -0.088; 450: -0.078; 500: -0.069; 550: -0.064; 600: -0.058; 650: -0.053; 700: -0.050; 800: -0.043; 900: -0.038; 1000: -0.034 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm) | 200: 78.71 x 57.62; 250: 98.39 x 72.02; 300: 119.06 x 87.15; 350: 141.68 x 103.71; 400: 161.00 x 117.85; 450: 181.64 x 132.96; 500: 205.34 x 150.30; 550: 221.38 x 162.04; 600: 244.28 x 178.81; 650: 267.33 x 195.67; 700: 283.37 x 207.41; 800: 329.49 x 241.18; 900: 372.85 x 272.91; 1000: 416.71 x 305.02 |
| Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm) | 200: 69.17 x 54.61; 250: 86.46 x 68.26; 300: 104.62 x 82.61; 350: 124.50 x 98.30; 400: 141.48 x 111.70; 450: 159.62 x 126.03; 500: 180.43 x 142.46; 550: 194.53 x 153.59; 600: 214.66 x 169.48; 650: 234.91 x 185.47; 700: 249.00 x 196.60; 800: 289.53 x 228.60; 900: 327.63 x 258.68; 1000: 366.18 x 289.12 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 200: 46.94 x 39.28; 250: 58.68 x 49.10; 300: 71.01 x 59.41; 350: 84.50 x 70.70; 400: 96.02 x 80.34; 450: 108.33 x 90.64; 500: 122.46 x 102.46; 550: 132.03 x 110.47; 600: 145.69 x 121.90; 650: 159.43 x 133.40; 700: 169.00 x 141.40; 800: 196.51 x 164.42; 900: 222.37 x 186.05; 1000: 248.53 x 207.94 |
Environment and compliance
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø38 mm × 47.6 mm (Ø1.5" x 1.9") |
| Weight | 107 g (0.2 lb.) |
| Shipping weight (estimated) | 0.25 kg |
