Machine vision lenses

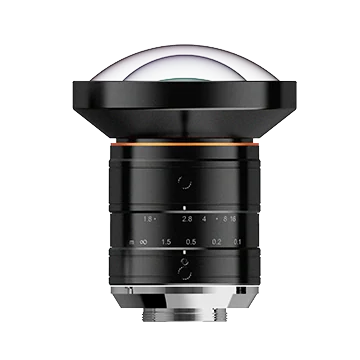

6mm, F1.8, 1.1", 12MP Lens, C-Mount (LS-FFL-1394)
Model LS-FFL-1394
- Focal length6 mm
- MountC-mount
- Sensor1.1"
- ApertureF1.8 to F16
$339.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6mm, F1.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1394 |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 1 mm tube, near focus: WD 6.27 mm, magnification -0.224; 1 mm tube, far focus: WD 21.56 mm, magnification -0.142 |
Optics
| Focal length | 6 mm |
|---|---|
| F-number | F1.8 to F16 |
| Image size | Ø17.6 mm (1.1") |
| Distortion | 2.5% |
| Field of view | D (17.52 mm): 118.2°; H (14.14 mm): 104.9°; V (10.35 mm): 86.2° |
| Iris control | Manual |
| Focus control | Manual |
| Magnification at working distance (mm) | 100: -0.050; 150: -0.036; 200: -0.028; 250: -0.023; 300: -0.019; 350: -0.017; 400: -0.015; 450: -0.013; 500: -0.012; 550: -0.011; 600: -0.010; 650: -0.009; 700: -0.009; 800: -0.008; 900: -0.007; 1000: -0.006 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm) | 100: 291.28 x 217.54; 150: 407.90 x 298.61; 200: 525.78 x 384.86; 250: 641.59 x 469.62; 300: 766.53 x 561.07; 350: 877.30 x 642.19; 400: 997.50 x 730.10; 450: 1120.00 x 820.00; 500: 1234.25 x 903.43; 550: 1387.80 x 1015.83; 600: 1506.37 x 1102.61; 650: 1629.10 x 1192.50; 700: 1748.93 x 1280.16; 800: 1990.49 x 1456.90; 900: 2230.42 x 1632.59; 1000: 2473.33 x 1810.40 |
| Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm) | 100: 256.47 x 202.50; 150: 359.20 x 283.60; 200: 462.94 x 365.52; 250: 564.91 x 446.03; 300: 674.92 x 532.88; 350: 772.50 x 609.93; 400: 878.32 x 693.40; 450: 986.42 x 778.83; 500: 1086.73 x 858.00; 550: 1221.90 x 964.79; 600: 1326.30 x 1047.20; 650: 1434.45 x 1132.58; 700: 1539.91 x 1215.84; 800: 1752.59 x 1383.77; 900: 1963.84 x 1550.57; 1000: 2177.70 x 1719.40 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 100: 174.07 x 145.64; 150: 243.79 x 203.98; 200: 314.20 x 262.89; 250: 383.40 x 320.79; 300: 458.07 x 383.20; 350: 524.31 x 438.68; 400: 596.13 x 498.77; 450: 669.50 x 560.16; 500: 737.58 x 617.10; 550: 829.35 x 693.90; 600: 900.20 x 753.18; 650: 973.58 x 814.58; 700: 1045.10 x 874.46; 800: 1189.51 x 995.25; 900: 1332.89 x 1115.21; 1000: 1478.10 x 1236.70 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

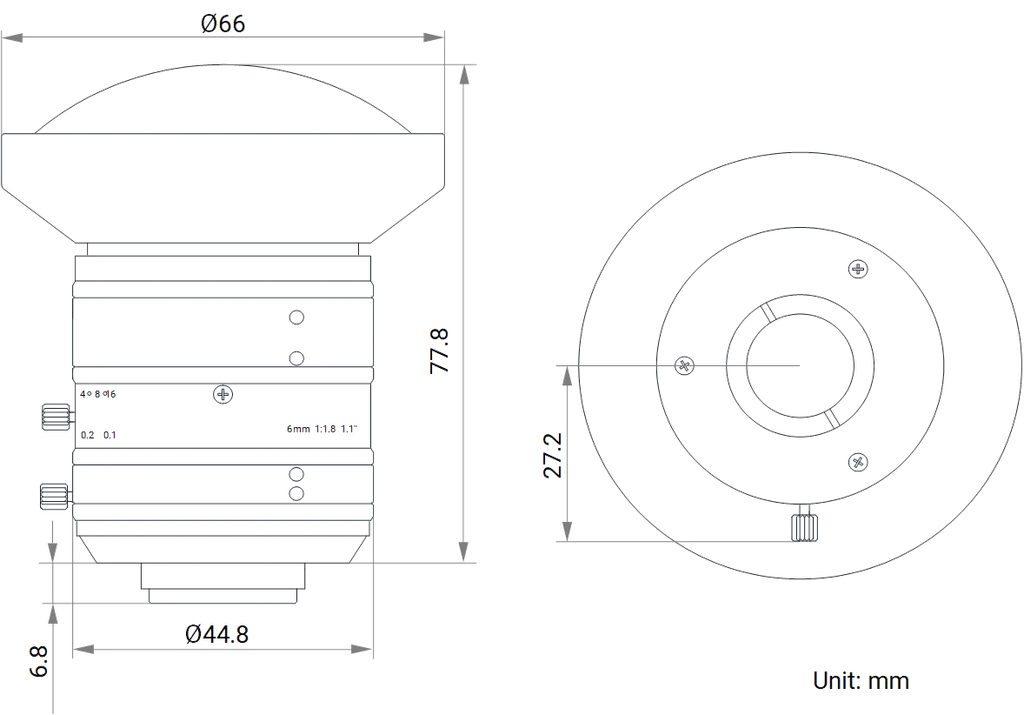

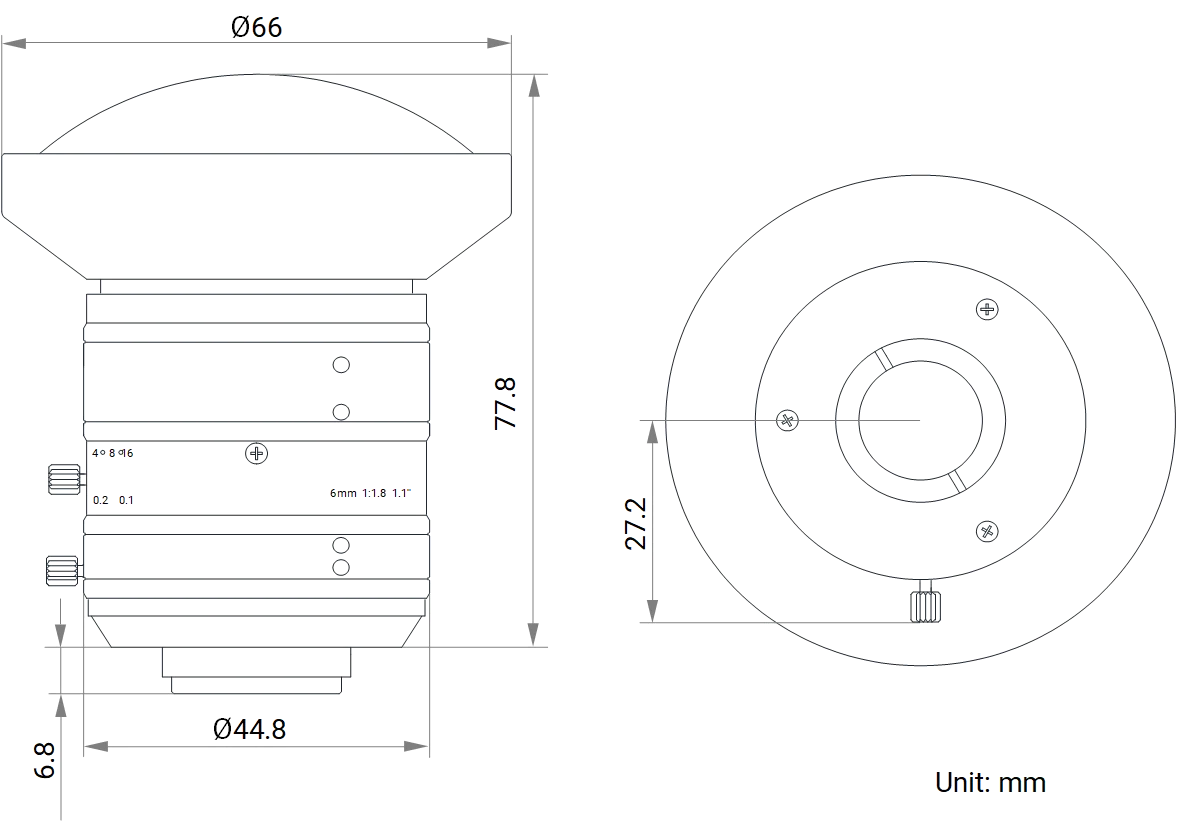

| Dimension | Ø66 mm × 77.8 mm (Ø2.6" x 3.1") |
| Weight | 353 g (0.8 lb.) |
| Shipping weight (estimated) | 0.59 kg |
