Machine vision lenses

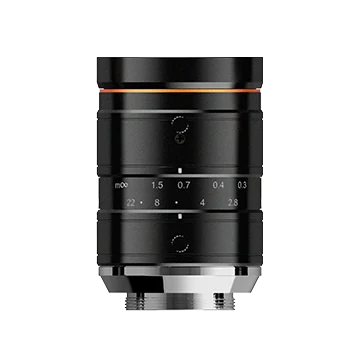

50mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø38 mm × 53.9 mm (LS-FFL-1400)

Model LS-FFL-1400

Focal length50 mm
MountC-mount
Sensor1.1"
ApertureF2.8 to F22

$309.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.27 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

50mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1400
Minimum object distance	0.3 m
Close-up with extension tube	15 mm tube: WD 125.35 mm, magnification -0.482; 15 mm tube: WD 193.13 mm, magnification -0.296; 10 mm tube: WD 152.68 mm, magnification -0.391; 10 mm tube: WD 279.23 mm, magnification -0.197; 5 mm tube: WD 199.88 mm, magnification -0.280; 5 mm tube: WD 537.93 mm, magnification -0.099; 2 mm tube: WD 249.24 mm, magnification -0.219; 2 mm tube: WD 1315.42 mm, magnification -0.039; 1 mm tube: WD 272.42 mm, magnification -0.199; 1 mm tube: WD 2614.12 mm, magnification -0.020

Optics

Focal length	50 mm
F-number	F2.8 to F22
Image size	Ø17.6 mm (1.1")
Distortion	0.04%
Field of view	D (17.52 mm): 19.9°; H (14.14 mm): 15.9°; V (10.35 mm): 11.9°
Iris control	Manual
Focus control	Manual
Filter thread	M35.5 × 0.5
Magnification at working distance (mm)	300: -0.178; 350: -0.151; 400: -0.132; 450: -0.116; 500: -0.104; 550: -0.095; 600: -0.087; 650: -0.079; 700: -0.074; 800: -0.067; 900: -0.057; 1000: -0.052
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	300: 79.60 x 58.26; 350: 93.83 x 68.68; 400: 107.34 x 78.57; 450: 122.14 x 89.40; 500: 136.23 x 99.72; 550: 149.45 x 109.40; 600: 163.61 x 119.75; 650: 179.35 x 131.27; 700: 191.46 x 140.14; 800: 211.47 x 154.79; 900: 247.70 x 181.31; 1000: 275.11 x 201.37
Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm)	300: 69.94 x 55.22; 350: 82.45 x 65.10; 400: 94.32 x 74.47; 450: 107.33 x 84.74; 500: 119.71 x 94.52; 550: 131.33 x 103.69; 600: 143.76 x 113.51; 650: 157.59 x 124.43; 700: 168.24 x 132.84; 800: 185.82 x 146.72; 900: 217.66 x 171.85; 1000: 241.75 x 190.87
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	300: 47.47 x 39.72; 350: 55.96 x 46.82; 400: 64.02 x 53.56; 450: 72.84 x 60.95; 500: 81.25 x 67.98; 550: 89.14 x 74.58; 600: 97.58 x 81.64; 650: 106.96 x 89.49; 700: 114.19 x 95.54; 800: 126.12 x 105.52; 900: 147.73 x 123.60; 1000: 164.08 x 137.28

Environment and compliance

Temperature	–10°C to 50°C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Mount	C-mount
Flange back length	17.526 mm
Dimension	Ø38 mm × 53.9 mm (Ø1.5" x 2.1")
Weight	121 g (0.3 lb.)
Shipping weight (estimated)	0.27 kg
