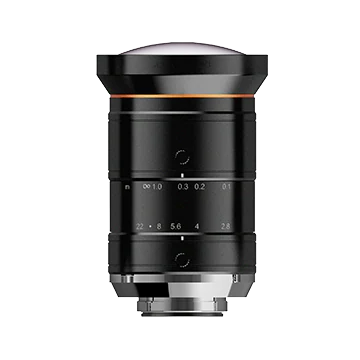

12mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø48 mm × 71.32 mm (LS-FFL-1396)
  • 12mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø48 mm × 71.32 mm (LS-FFL-1396)

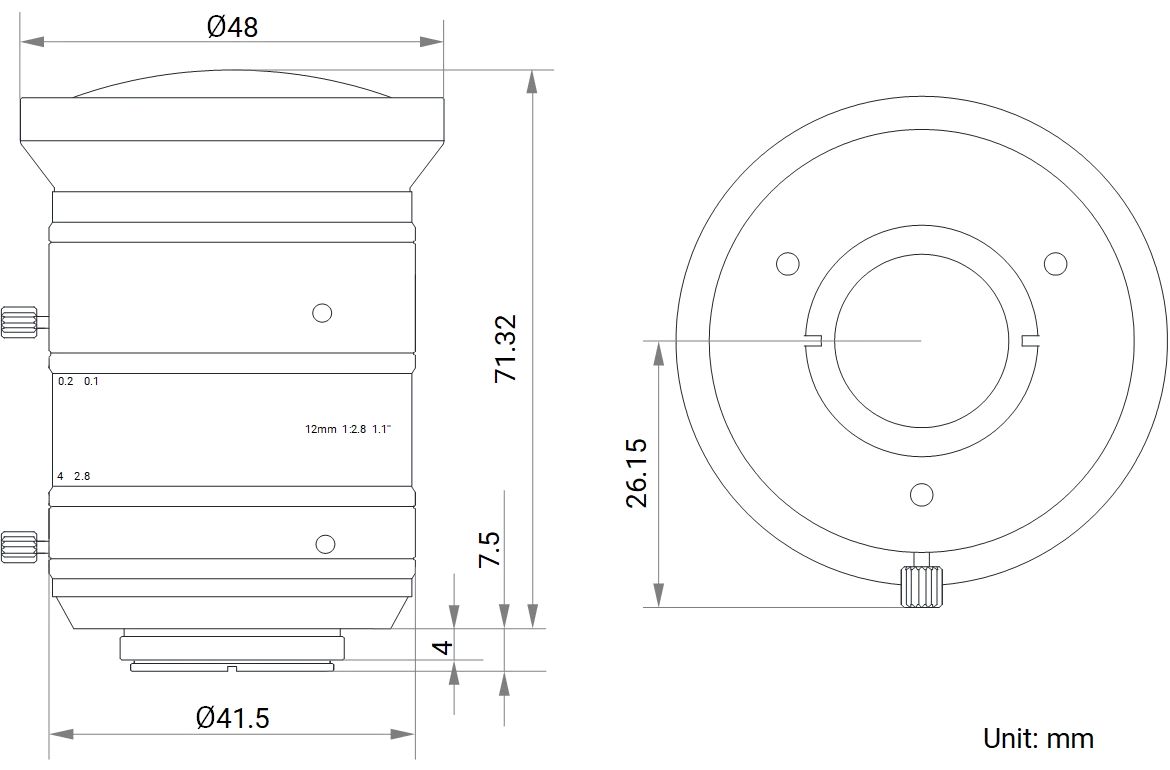

  • LS-FFL-1396 dimensions (mm)

Machine vision lenses

12mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø48 mm × 71.32 mm (LS-FFL-1396)

Model LS-FFL-1396

  • Focal length12 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8 to F22
$309.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.44 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

12mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø48 mm × 71.32 mm (LS-FFL-1396)LS-FFL-1396

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1396
Minimum object distance0.1 m
Close-up with extension tube5 mm tube, near focus: WD 6.42 mm, magnification -0.523; 5 mm tube, far focus: WD 8.12 mm, magnification -0.487; 2 mm tube, near focus: WD 27.65 mm, magnification -0.272; 2 mm tube, far focus: WD 34.45 mm, magnification -0.236; 1 mm tube, near focus: WD 47.19 mm, magnification -0.188; 1 mm tube, far focus: WD 63.34 mm, magnification -0.150

Optics

Focal length12 mm
F-numberF2.8 to F22
Image sizeØ17.6 mm (1.1")
Distortion1.5%
Field of viewD (17.52 mm): 66.7°; H (14.14 mm): 57°; V (10.35 mm): 45°
Iris controlManual
Focus controlManual
Magnification at working distance (mm)100: -0.100; 150: -0.071; 200: -0.057; 250: -0.045; 300: -0.039; 350: -0.033; 400: -0.029; 450: -0.026; 500: -0.024; 550: -0.021; 600: -0.020; 650: -0.019; 700: -0.017; 800: -0.015; 900: -0.014; 1000: -0.012
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)100: 144.95 x 106.1; 150: 198.44 x 145.25; 200: 250.77 x 183.55; 250: 312.08 x 228.43; 300: 364.22 x 266.60; 350: 425.47 x 311.43; 400: 481.91 x 352.74; 450: 538.72 x 394.32; 500: 595.31 x 435.74; 550: 652.92 x 477.91; 600: 711.97 x 521.14; 650: 765.85 x 560.58; 700: 823.74 x 602.95; 800: 938.30 x 686.80; 900: 1049.50 x 768.20; 1000: 1151.89 x 843.15
Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm)100: 127.63 x 100.77; 150: 174.37 x 137.68; 200: 220.35 x 173.98; 250: 274.23 x 216.52; 300: 320.05 x 252.70; 350: 373.87 x 295.20; 400: 423.47 x 334.35; 450: 473.38 x 373.76; 500: 523.11 x 413.03; 550: 573.73 x 453.00; 600: 625.63 x 493.97; 650: 672.97 x 531.35; 700: 723.84 x 571.51; 800: 824.50 x 650.99; 900: 922.22 x 728.15; 1000: 1012.20 x 799.19
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)100: 86.62 x 72.48; 150: 118.35 x 99.02; 200: 149.56 x 125.13; 250: 186.12 x 155.73; 300: 217.22 x 181.75; 350: 253.75 x 212.31; 400: 287.41 x 240.48; 450: 321.29 x 268.82; 500: 355.04 x 297.06; 550: 389.40 x 325.81; 600: 424.62 x 355.28; 650: 456.76 x 382.16; 700: 491.28 x 411.05; 800: 559.60 x 468.21; 900: 625.93 x 523.70; 1000: 686.99 x 574.80

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ48 mm × 71.32 mm (Ø1.9" x 2.8")
Weight245 g (0.5 lb.)
Shipping weight (estimated)0.44 kg
