Machine vision lenses

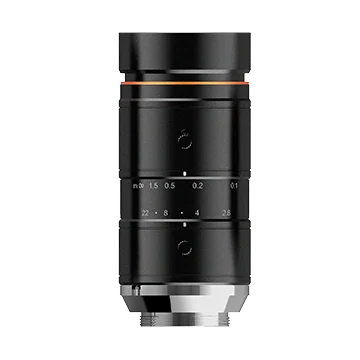

25mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø37 mm × 82 mm (LS-FFL-1398)
Model LS-FFL-1398
- Focal length25 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8 to F22
$309.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.35 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
25mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1398 |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 5 mm tube, near focus: WD 47.03 mm, magnification -0.415; 5 mm tube, far focus: WD 48.81 mm, magnification -0.400; 2 mm tube, near focus: WD 70.02 mm, magnification -0.300; 2 mm tube, far focus: WD 73.56 mm, magnification -0.288; 1 mm tube, near focus: WD 82.41 mm, magnification -0.260; 1 mm tube, far focus: WD 89.51 mm, magnification -0.240 |
Optics
| Focal length | 25 mm |
|---|---|
| F-number | F2.8 to F22 |
| Image size | Ø17.6 mm (1.1") |
| Distortion | 0.1% |
| Field of view | D (17.52 mm): 37.6°; H (14.14 mm): 30.4°; V (10.35 mm): 23° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5 × 0.5 |
| Magnification at working distance (mm) | 100: -0.223; 150: -0.154; 200: -0.118; 250: -0.096; 300: -0.080; 350: -0.069; 400: -0.061; 450: -0.054; 500: -0.049; 550: -0.045; 600: -0.041; 650: -0.038; 700: -0.036; 800: -0.031; 900: -0.027; 1000: -0.025 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor | 100: 63.41 x 46.41; 150: 92.00 x 67.34; 200: 120.07 x 87.89; 250: 147.59 x 108.03; 300: 177.10 x 129.63; 350: 205.34 x 150.30; 400: 232.27 x 170.01; 450: 262.38 x 192.05; 500: 289.15 x 211.65; 550: 314.85 x 230.46; 600: 343.06 x 251.11; 650: 370.90 x 271.48; 700: 399.11 x 292.13; 800: 454.11 x 332.39; 900: 524.75 x 384.10; 1000: 566.73 x 414.83 |
| Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm) | 100: 55.83 x 44.08; 150: 80.84 x 63.83; 200: 105.51 x 83.31; 250: 129.69 x 102.40; 300: 155.63 x 122.88; 350: 180.43 x 142.46; 400: 204.10 x 161.15; 450: 230.56 x 182.04; 500: 254.08 x 200.61; 550: 276.67 x 218.44; 600: 301.45 x 238.01; 650: 325.92 x 257.33; 700: 350.70 x 276.90; 800: 399.04 x 315.06; 900: 461.11 x 364.07; 1000: 498.00 x 393.20 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 100: 37.89 x 31.70; 150: 54.87 x 45.91; 200: 71.61 x 59.92; 250: 88.02 x 73.65; 300: 105.63 x 88.38; 350: 122.46 x 102.46; 400: 138.52 x 115.90; 450: 156.48 x 130.93; 500: 172.45 x 144.29; 550: 187.78 x 157.11; 600: 204.60 x 171.19; 650: 221.20 x 185.08; 700: 238.03 x 199.15; 800: 270.83 x 226.60; 900: 312.96 x 261.85; 1000: 338.00 x 282.80 |
Environment and compliance
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

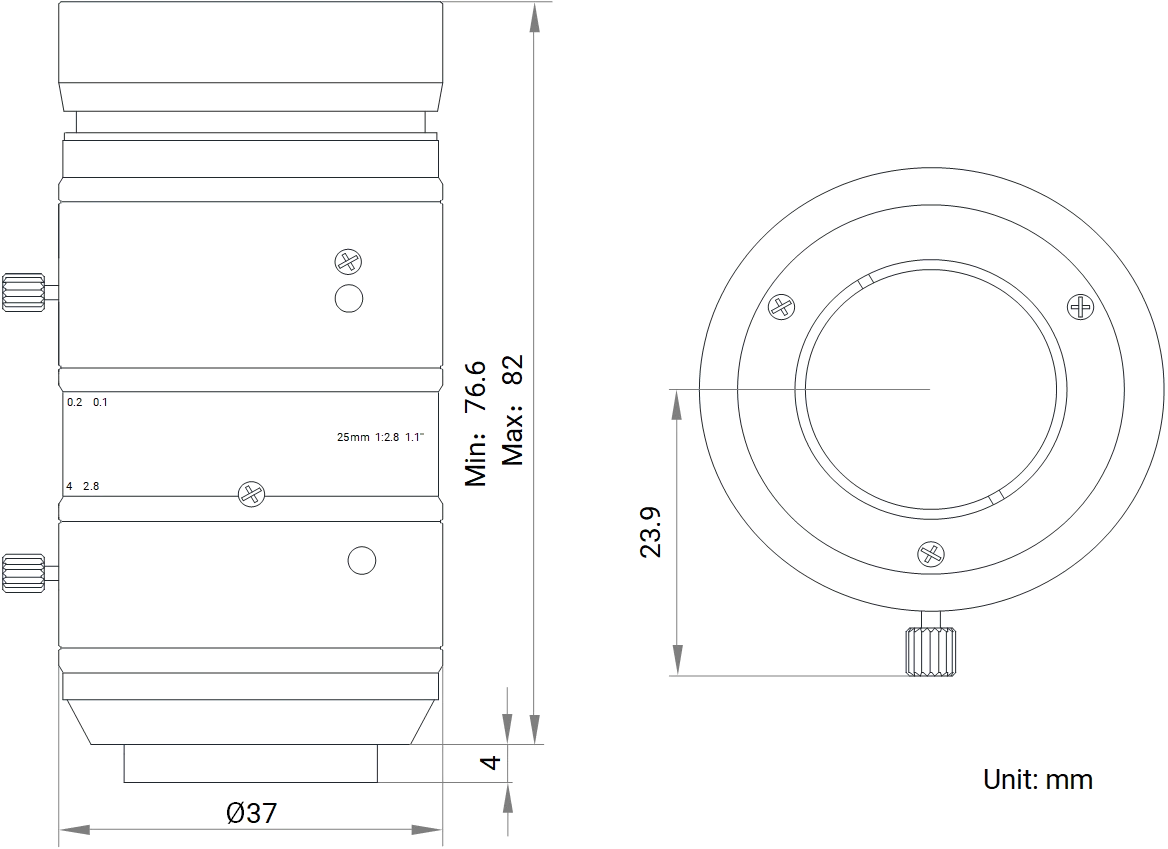

| Dimension | Ø37 mm × 82 mm (Ø1.5" x 3.2") |
| Weight | 180 g (0.4 lb.) |
| Shipping weight (estimated) | 0.35 kg |
