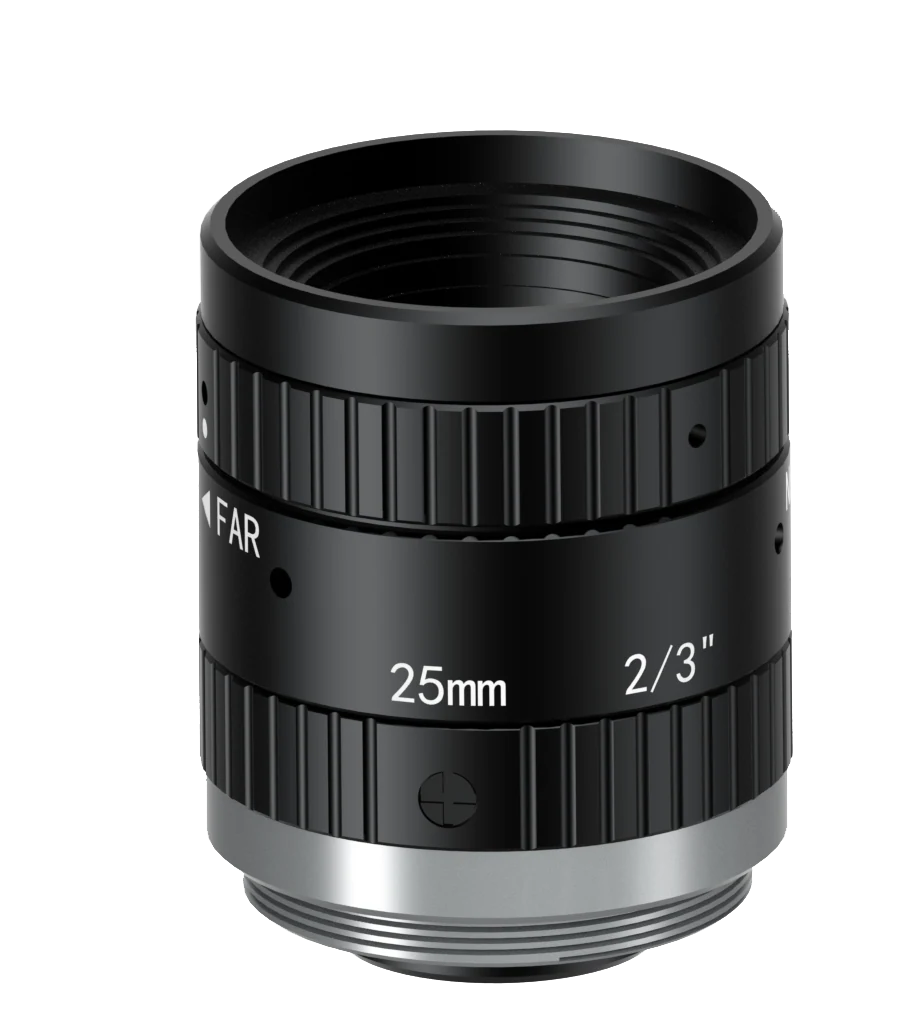

25mm, F1.8, 2/3", 5MP Lens, C-Mount (LS-FFL-1497)
  • 25mm, F1.8, 2/3", 5MP Lens, C-Mount (LS-FFL-1497)

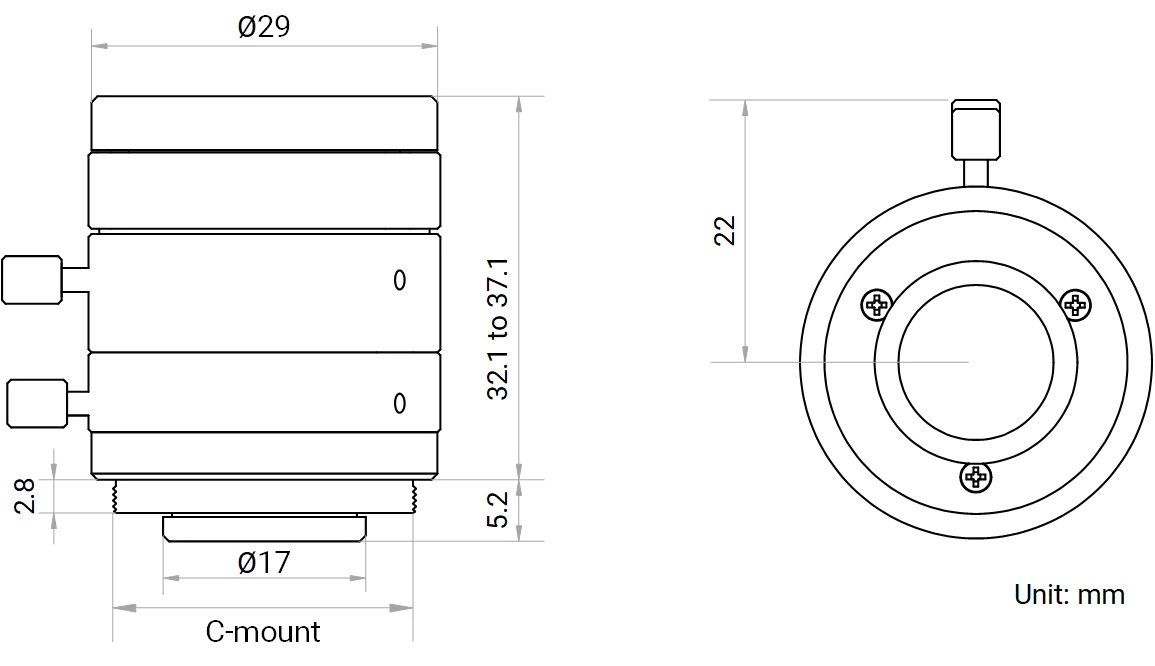

  • LS-FFL-1497 dimensions (mm)

Machine vision lenses

25mm, F1.8, 2/3", 5MP Lens, C-Mount (LS-FFL-1497)

Model LS-FFL-1497

  • Focal length25 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.8 to F16
$209.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.18 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

25mm, F1.8, 2/3", 5MP Lens, C-Mount (LS-FFL-1497)LS-FFL-1497

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25mm, F1.8, 2/3", 5MP Lens, C-Mount. High resolution and consistency of image clarity. Lower distortion and higher relative illumination rate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1497
Minimum object distance0.2 m
Close-up with extension tube30 mm tube, near focus: WD 24.4 mm, magnification -1.278; 30 mm tube, far focus: WD 25.0 mm, magnification -1.204; 25 mm tube, near focus: WD 27.9 mm, magnification -1.086; 25 mm tube, far focus: WD 29.1 mm, magnification -1.001; 20 mm tube, near focus: WD 33.0 mm, magnification -0.895; 20 mm tube, far focus: WD 35.2 mm, magnification -0.800; 15 mm tube, near focus: WD 40.8 mm, magnification -0.704; 15 mm tube, far focus: WD 45.3 mm, magnification -0.599; 10 mm tube, near focus: WD 54.3 mm, magnification -0.514; 10 mm tube, far focus: WD 65.7 mm, magnification -0.399; 5 mm tube, near focus: WD 83.9 mm, magnification -0.324; 5 mm tube, far focus: WD 127.9 mm, magnification -0.198; 2 mm tube, near focus: WD 128.0 mm, magnification -0.209; 2 mm tube, far focus: WD 324.4 mm, magnification -0.077; 1 mm tube, near focus: WD 156.0 mm, magnification -0.171; 1 mm tube, far focus: WD 689.6 mm, magnification -0.036

Optics

Focal length25 mm
F-numberF1.8 to F16
Image sizeØ11 mm (2/3'')
TV distortion–0.51%
Field of viewD (11.1 mm): 24.1°; H (8.45 mm): 18.4°; V (7.07 mm): 15.4°
Iris controlManual
Focus controlManual
Filter threadM27 × 0.5
Magnification at working distance (mm)200: -0.133; 250: -0.105; 300: -0.086; 350: -0.073; 400: -0.064; 450: -0.057; 500: -0.051; 550: -0.046; 600: -0.042; 650: -0.039; 700: -0.036; 800: -0.031; 900: -0.028; 1000: -0.025
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)200: 63.5 x 53.0; 250: 80.5 x 67.3; 300: 97.6 x 81.5; 350: 114.7 x 95.8; 400: 131.7 x 110.0; 450: 148.8 x 124.3; 500: 165.8 x 138.5; 550: 182.9 x 152.8; 600: 199.9 x 167.0; 650: 217.0 x 181.3; 700: 234.0 x 195.5; 800: 268.2 x 224.0; 900: 302.3 x 252.5; 1000: 336.4 x 281.1
Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm)200: 55.4 x 36.8; 250: 70.2 x 46.7; 300: 85.1 x 56.6; 350: 100.0 x 66.5; 400: 114.9 x 76.4; 450: 129.8 x 86.3; 500: 144.7 x 96.2; 550: 159.5 x 106.1; 600: 174.4 x 116.0; 650: 189.3 x 125.9; 700: 204.2 x 135.8; 800: 233.9 x 155.6; 900: 263.7 x 175.5; 1000: 293.4 x 195.2
Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm)200: 46.6 x 34.9; 250: 59.1 x 44.3; 300: 71.7 x 53.7; 350: 84.2 x 63.1; 400: 96.7 x 72.5; 450: 109.3 x 81.9; 500: 121.8 x 91.3; 550: 134.3 x 100.7; 600: 146.8 x 110.1; 650: 159.4 x 119.5; 700: 171.9 x 128.9; 800: 197.0 x 147.7; 900: 222.0 x 166.5; 1000: 247.1 x 185.3

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ29 mm × 32.1 mm to 37.1 mm (Ø1.1" × 1.3" to 1.5")
Weight54.0 g (0.1 Ib.)
Shipping weight (estimated)0.18 kg
