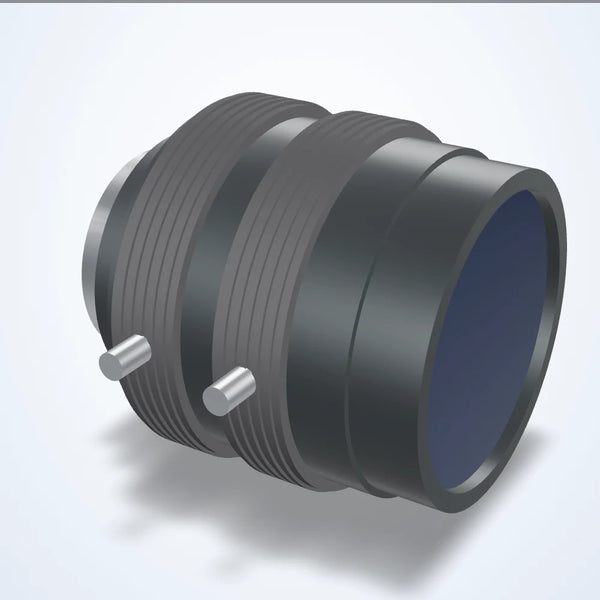

25 mm lens, 1", C-mount, F1.4-16, SWIR
LS-FFL-0160
- Focal length 25 mm
- Mount C-mount
- Sensor 1"
$1,389.00Quote
Lead time confirmed with your quote
Lenses
C-mount machine vision lenses
Choose the lens beyond its mountChoose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.
Products

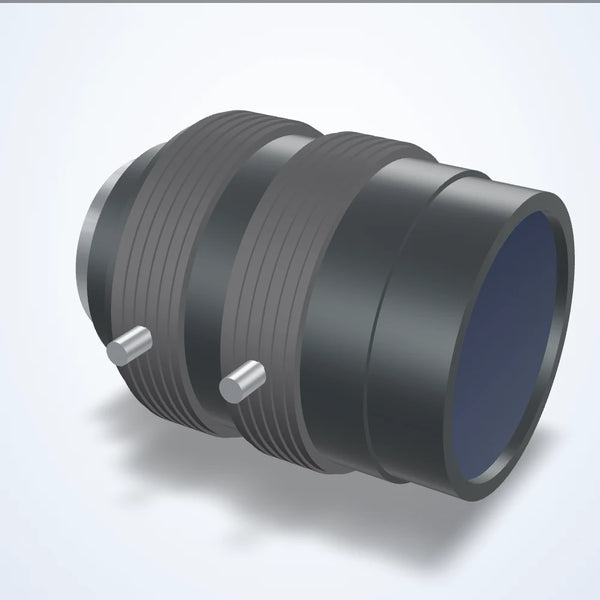

16 mm lens, 1", C-mount, F1.4-16, SWIR
LS-FFL-0144
- Focal length 16 mm
- Mount C-mount
- Sensor 1"
$1,389.00Quote
Lead time confirmed with your quote

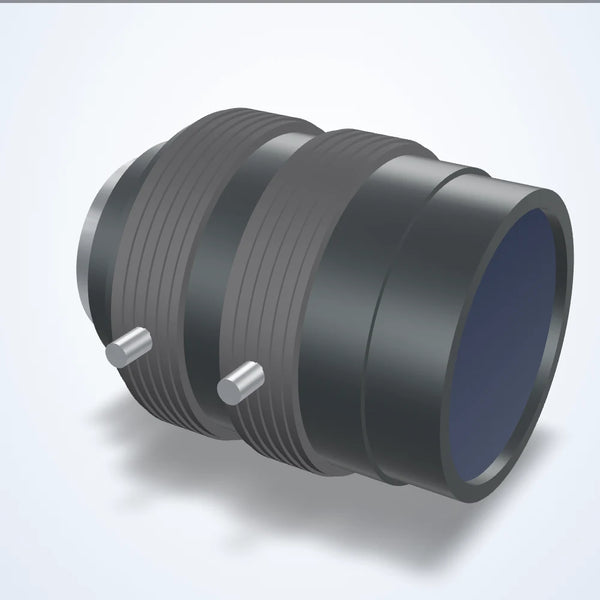

12.5 mm lens, 1", C-mount, F1.4-16, SWIR
LS-FFL-0130
- Focal length 12.5 mm
- Mount C-mount
- Sensor 1"
$1,389.00Quote
Lead time confirmed with your quote

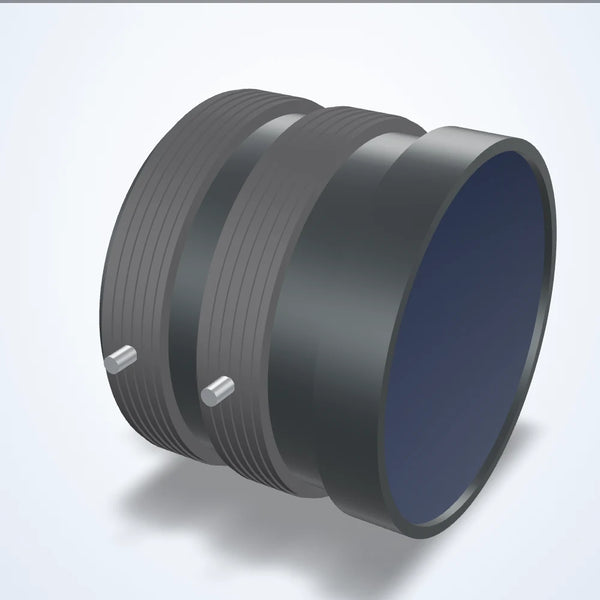

4.7 mm lens, 1", C-mount
LS-FFL-0194
- Focal length 4.7 mm
- Mount C-mount
- Sensor 1"
$1,209.00Quote
Lead time confirmed with your quote
6 mm lens, 1", C-mount
LS-FFL-0215
- Focal length 6 mm
- Mount C-mount
- Sensor 1"
$589.00Quote
Lead time confirmed with your quote
8 mm lens, 1", C-mount, length at 0.1 m 59.25 mm
LS-FFL-0223
- Focal length 8 mm
- Mount C-mount
- Sensor 1"
$369.00Quote
Lead time confirmed with your quote
75 mm lens, 1", C-mount, F1.8-16
LS-FFL-0220
- Focal length 75 mm
- Magnification with 10mm ring 0.21×
- Mount C-mount
$329.00Quote
Lead time confirmed with your quote

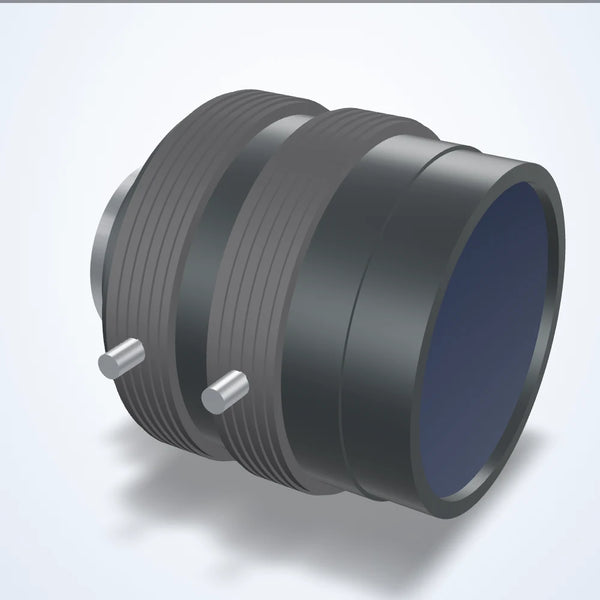

50 mm lens, 1", C-mount, F1.4-16, Visible
LS-FFL-0199
- Focal length 50 mm
- Magnification with 10mm ring 0.3×
- Mount C-mount
$329.00Quote
Lead time confirmed with your quote
35 mm lens, 1", C-mount, F1.4-16, Visible
LS-FFL-0177
- Focal length 35 mm
- Magnification with 10mm ring 0.4×
- Mount C-mount
$299.00Quote
Lead time confirmed with your quote
25 mm lens, 1", C-mount, F1.4-16, Visible
LS-FFL-0159
- Focal length 25 mm
- Magnification with 1mm ring 0.12×
- Mount C-mount
$299.00Quote
Lead time confirmed with your quote
16 mm lens, 1", C-mount, F1.4-16, Visible
LS-FFL-0143
- Focal length 16 mm
- Magnification with 1mm ring 0.11×
- Mount C-mount
$299.00Quote
Lead time confirmed with your quote
12.5 mm lens, 1", C-mount, F1.4-16, Visible
LS-FFL-0129
- Focal length 12.5 mm
- Magnification with 1mm ring 0.12×
- Mount C-mount
$299.00Quote
Lead time confirmed with your quote
6.5 mm lens, 1.1", C-mount
LS-FFL-0214
- Focal length 6.5 mm
- Mount C-mount
- Sensor 1.1"
$1,389.00Quote
Lead time confirmed with your quote
8.5 mm lens, 1.1", C-mount
LS-FFL-0222
- Focal length 8.5 mm
- Magnification with 1mm ring 0.19×
- Mount C-mount
$939.00Quote
Lead time confirmed with your quote
16 mm lens, 1.1", C-mount
LS-FFL-0142
- Focal length 16 mm
- Magnification with 1mm ring 0.2×
- Mount C-mount
$929.00Quote
Lead time confirmed with your quote
50 mm lens, 1.1", C-mount
LS-FFL-0198
- Focal length 50 mm
- Magnification with 10mm ring 0.46×
- Mount C-mount
$879.00Quote
Lead time confirmed with your quote
35 mm lens, 1.1", C-mount, focus range 0.2 m - ∞
LS-FFL-0176
- Focal length 35 mm
- Magnification with 10mm ring 0.46×
- Mount C-mount
$879.00Quote
Lead time confirmed with your quote
25 mm lens, 1.1", C-mount
LS-FFL-0158
- Focal length 25 mm
- Magnification with 10mm ring 0.61×
- Mount C-mount
$879.00Quote
Lead time confirmed with your quote
12 mm lens, 1.1", C-mount, F1.8-16
LS-FFL-0128
- Focal length 12 mm
- Magnification with 1mm ring 0.18×
- Mount C-mount
$849.00Quote
Lead time confirmed with your quote

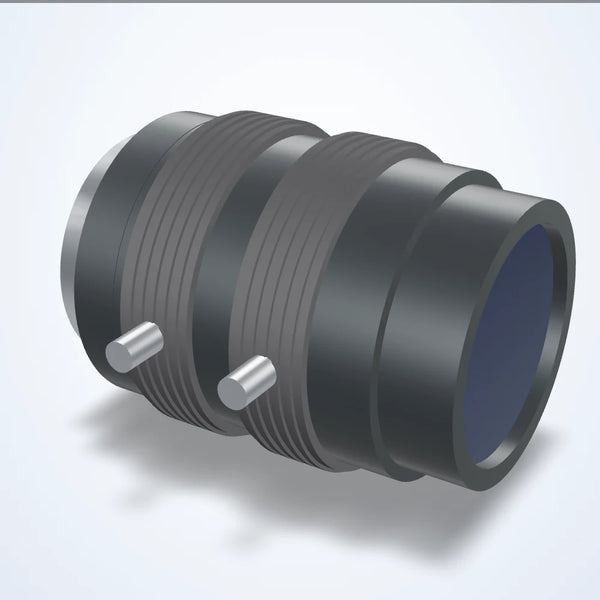

8 mm lens, 2/3", C-mount, 17.5 mm dia., 1.4 to closed
LS-FFL-0229
- Focal length 8 mm
- Magnification with 1mm ring 0.2×
- Mount C-mount
$239.00Quote
Lead time confirmed with your quote

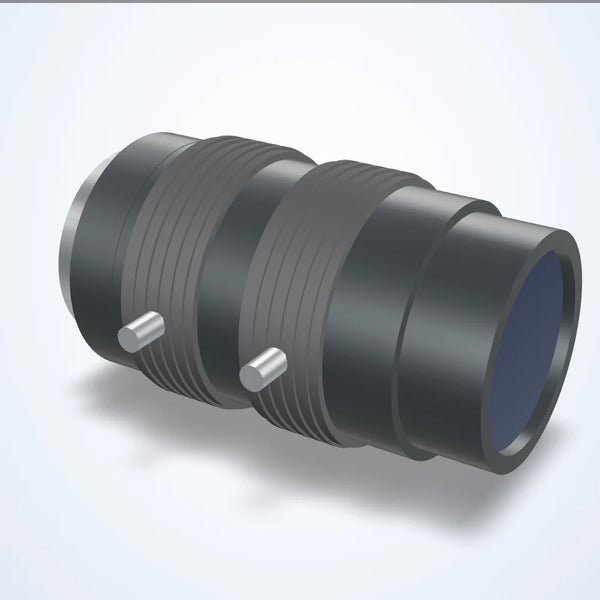

50 mm lens, 2/3", C-mount, front diameter 21.7 mm, F2.8-22
LS-FFL-0205
- Focal length 50 mm
- Magnification with 10mm ring 0.48×
- Mount C-mount
$209.00Quote
Lead time confirmed with your quote
35 mm lens, 2/3", C-mount, front diameter 21.5. mm
LS-FFL-0183
- Focal length 35 mm
- Magnification with 10mm ring 0.46×
- Mount C-mount
$209.00Quote
Lead time confirmed with your quote
25 mm lens, 2/3", C-mount, Visible, 24 mm dia., dimensions 33.5 x 39.5
LS-FFL-0165
- Focal length 25 mm
- Magnification with 1mm ring 0.16×
- Mount C-mount
$209.00Quote
Lead time confirmed with your quote
16 mm lens, 2/3", C-mount, 20.2 mm dia., dimensions 33.5 x 36.5
LS-FFL-0149
- Focal length 16 mm
- Magnification with 1mm ring 0.14×
- Mount C-mount
$209.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-FFL-016025 mm lens, 1", C-mount, F1.4-16, SWIR
| 25 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $1,389.00Quote | Lead time confirmed with your quote | |
 LS-FFL-014416 mm lens, 1", C-mount, F1.4-16, SWIR
| 16 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $1,389.00Quote | Lead time confirmed with your quote | |
 LS-FFL-013012.5 mm lens, 1", C-mount, F1.4-16, SWIR
| 12.5 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $1,389.00Quote | Lead time confirmed with your quote | |
 LS-FFL-01944.7 mm lens, 1", C-mount
| 4.7 mm | C-mount | 1" | F2.4-11 | 120 lp/mm | - | $1,209.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02156 mm lens, 1", C-mount
| 6 mm | C-mount | 1" | F1.8-11 | 120 lp/mm | - | $589.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02238 mm lens, 1", C-mount, length at 0.1 m 59.25 mm
| 8 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $369.00Quote | Lead time confirmed with your quote | |
 LS-FFL-022075 mm lens, 1", C-mount, F1.8-16
| 75 mm | C-mount | 1" | F1.8-16 | 120 lp/mm | 0.21× | $329.00Quote | Lead time confirmed with your quote | |
 LS-FFL-019950 mm lens, 1", C-mount, F1.4-16, Visible
| 50 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | 0.3× | $329.00Quote | Lead time confirmed with your quote | |
|
LS-FFL-017735 mm lens, 1", C-mount, F1.4-16, Visible
| 35 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | 0.4× | $299.00Quote | Lead time confirmed with your quote | |
|
LS-FFL-015925 mm lens, 1", C-mount, F1.4-16, Visible
| 25 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $299.00Quote | Lead time confirmed with your quote | |
|
LS-FFL-014316 mm lens, 1", C-mount, F1.4-16, Visible
| 16 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $299.00Quote | Lead time confirmed with your quote | |
|
LS-FFL-012912.5 mm lens, 1", C-mount, F1.4-16, Visible
| 12.5 mm | C-mount | 1" | F1.4-16 | 120 lp/mm | - | $299.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02146.5 mm lens, 1.1", C-mount
| 6.5 mm | C-mount | 1.1" | F2.5-16 | - | - | $1,389.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02228.5 mm lens, 1.1", C-mount
| 8.5 mm | C-mount | 1.1" | F2.5-16 | 200 lp/mm | - | $939.00Quote | Lead time confirmed with your quote | |
 LS-FFL-014216 mm lens, 1.1", C-mount
| 16 mm | C-mount | 1.1" | F1.8-16 | - | - | $929.00Quote | Lead time confirmed with your quote | |
 LS-FFL-019850 mm lens, 1.1", C-mount
| 50 mm | C-mount | 1.1" | F1.8-16 | - | 0.46× | $879.00Quote | Lead time confirmed with your quote | |
 LS-FFL-017635 mm lens, 1.1", C-mount, focus range 0.2 m - ∞
| 35 mm | C-mount | 1.1" | F1.8-16 | - | 0.46× | $879.00Quote | Lead time confirmed with your quote | |
 LS-FFL-015825 mm lens, 1.1", C-mount
| 25 mm | C-mount | 1.1" | F1.8-16 | - | 0.61× | $879.00Quote | Lead time confirmed with your quote | |
 LS-FFL-012812 mm lens, 1.1", C-mount, F1.8-16
| 12 mm | C-mount | 1.1" | F1.8-16 | - | - | $849.00Quote | Lead time confirmed with your quote | |
 LS-FFL-02298 mm lens, 2/3", C-mount, 17.5 mm dia., 1.4 to closed
| 8 mm | C-mount | 2/3" | 1.4-Close | 120 lp/mm | - | $239.00Quote | Lead time confirmed with your quote | |
 LS-FFL-020550 mm lens, 2/3", C-mount, front diameter 21.7 mm, F2.8-22
| 50 mm | C-mount | 2/3" | F2.8-22 | 120 lp/mm | 0.48× | $209.00Quote | Lead time confirmed with your quote | |
 LS-FFL-018335 mm lens, 2/3", C-mount, front diameter 21.5. mm
| 35 mm | C-mount | 2/3" | F2.0-16 | 120 lp/mm | 0.46× | $209.00Quote | Lead time confirmed with your quote | |
 LS-FFL-016525 mm lens, 2/3", C-mount, Visible, 24 mm dia., dimensions 33.5 x 39.5
| 25 mm | C-mount | 2/3" | F1.4-16 | 120 lp/mm | - | $209.00Quote | Lead time confirmed with your quote | |
 LS-FFL-014916 mm lens, 2/3", C-mount, 20.2 mm dia., dimensions 33.5 x 36.5
| 16 mm | C-mount | 2/3" | F1.4-16 | 120 lp/mm | - | $209.00Quote | Lead time confirmed with your quote |
Choose the lens beyond its mount
A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.
- Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
- Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
- Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
