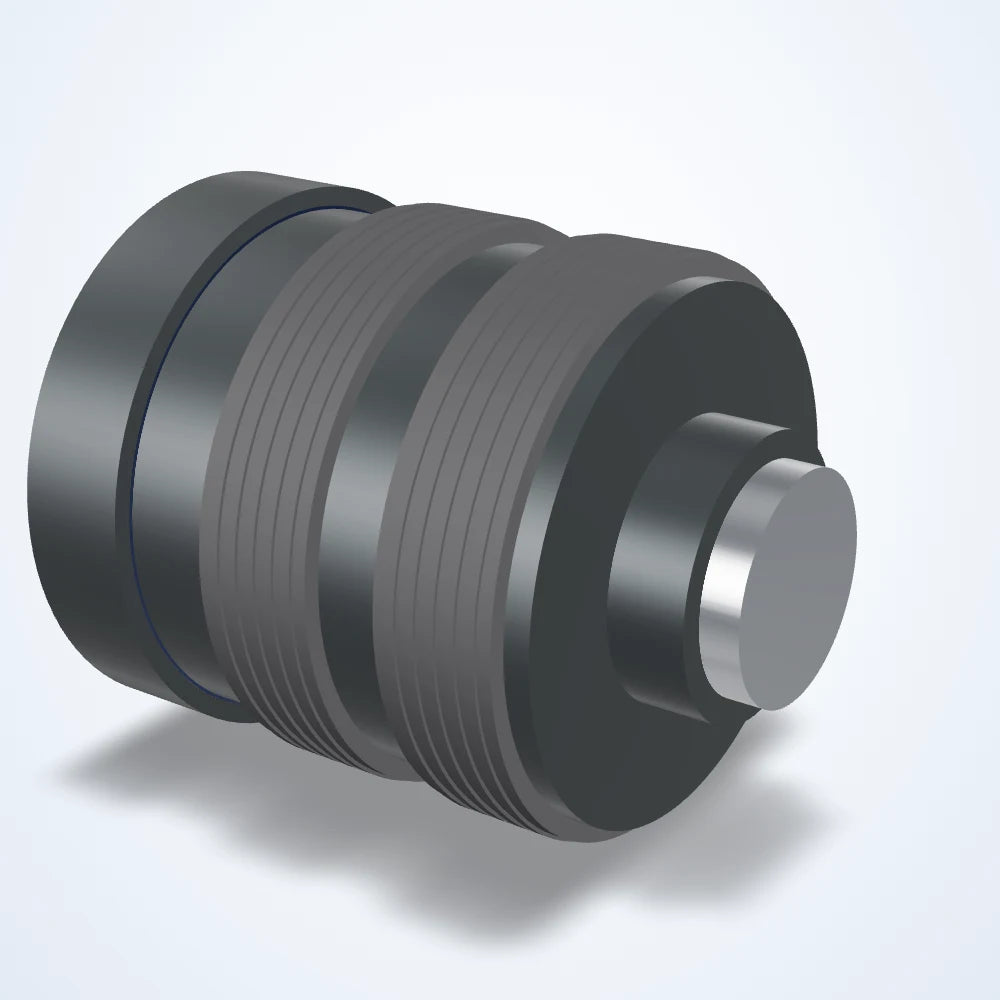

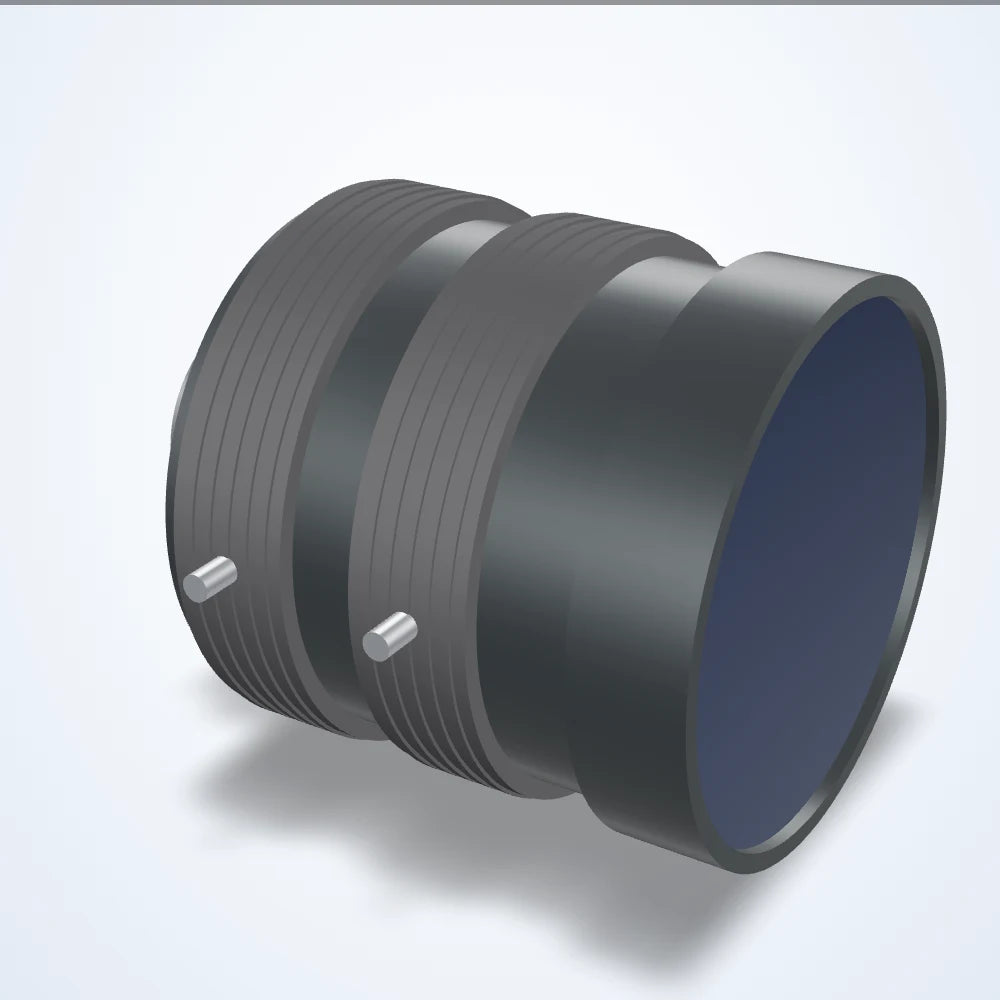

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8.5 mm lens, 1.1", C-mount (LS-FFL-0222)
Model LS-FFL-0222
- Focal length8.5 mm
- Magnification0.19×
- MountC-mount
- Sensor1.1"
- Aperture2.5-16
- Resolution200
$939.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0222 |
|---|---|
| Angle of view | H 79.2 x V 63.8 deg (D 91.2 deg) |
| Angle of view @ 1.1″ | 79.2° × 63.8° |
| Angle of view @ 1″ | 73.9° × 58.8° |
| Angle of view @ 2/3″ | 54.5° × 42.1° |
| Entrance pupil position | 21.2 (E.P.) |
| Exit pupil | -125.7mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 40.0mm / Rear 18.0mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 28 mm |
| Shooting range at mod | 184(H)×138(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 8.5 mm |
|---|---|
| Aperture (F) | 2.5-16 |
| Distortion | 0.55% (TV) |
| Back focus | 12.9mm in air |
| Filter thread | M62x0.75 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 17.6 mm |
| Image size dimensions | 14.1 mm x 10.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.19× |
Sensor and imaging
| Max. sensor format | 1.1" |
|---|---|
| Resolution (line pairs / mm @ center) | 200 |
| Resolution center/corner | Center 160lp/mm, corner 100lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

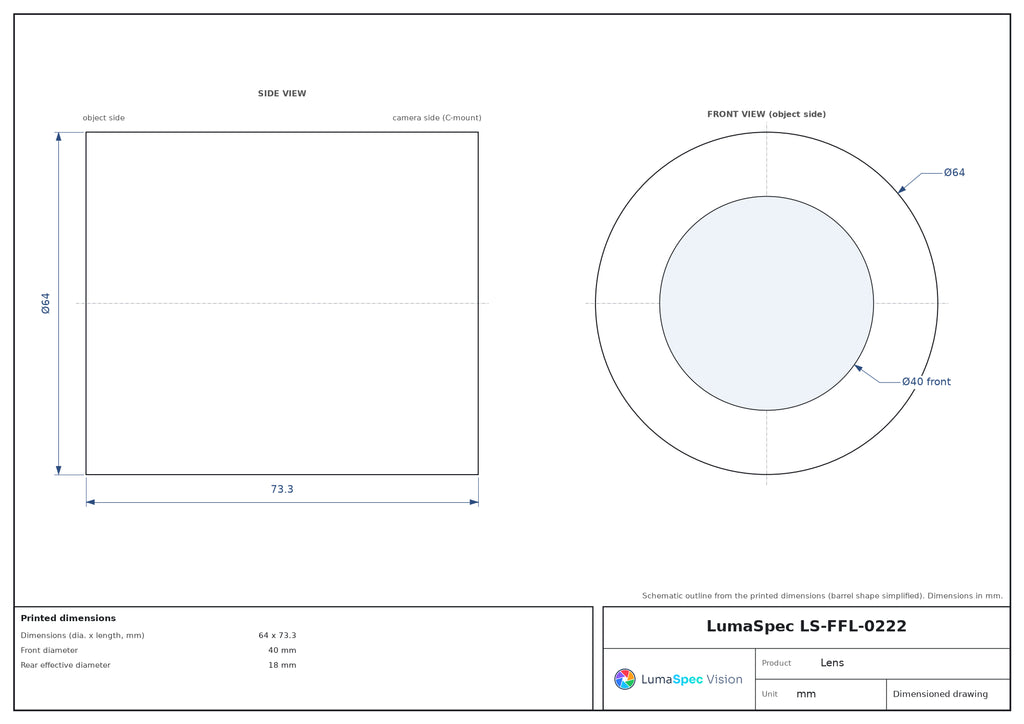

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 64 x 73.3 |
| Front diameter | 40 mm |
| Picture size (largest format) | 10.6x14.1mm |
| Weight (g) | 230 |
