6.5 mm lens, 1.1", C-mount (LS-FFL-0214)

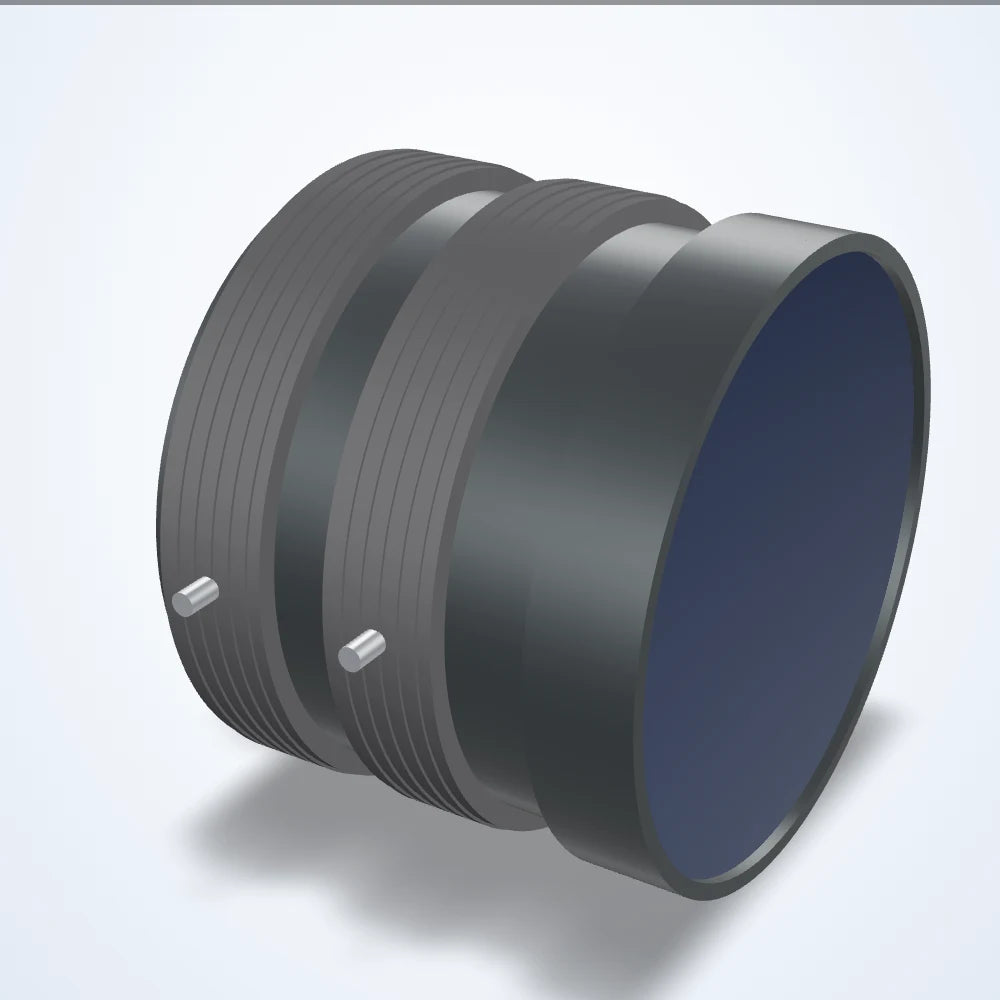

  • 6.5 mm lens, 1.1", C-mount (LS-FFL-0214)

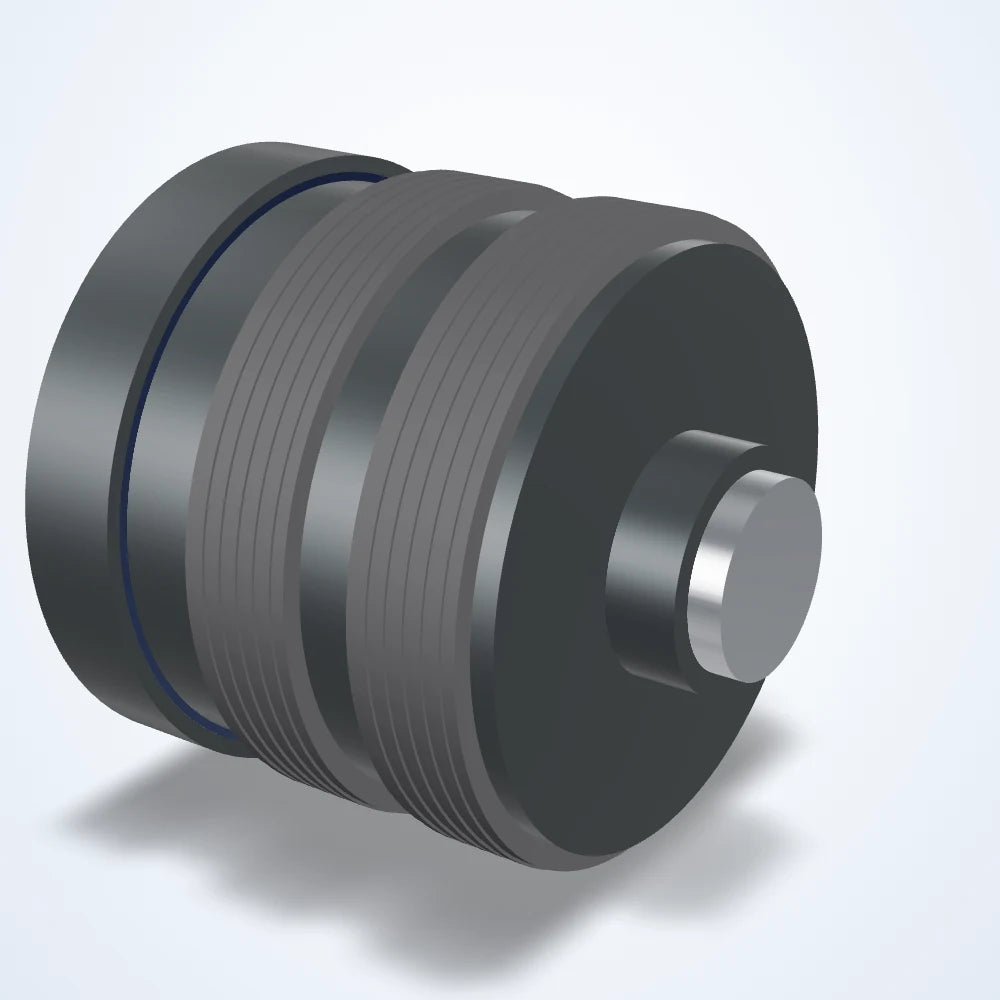

  • 6.5 mm lens, 1.1", C-mount (LS-FFL-0214) - view 2

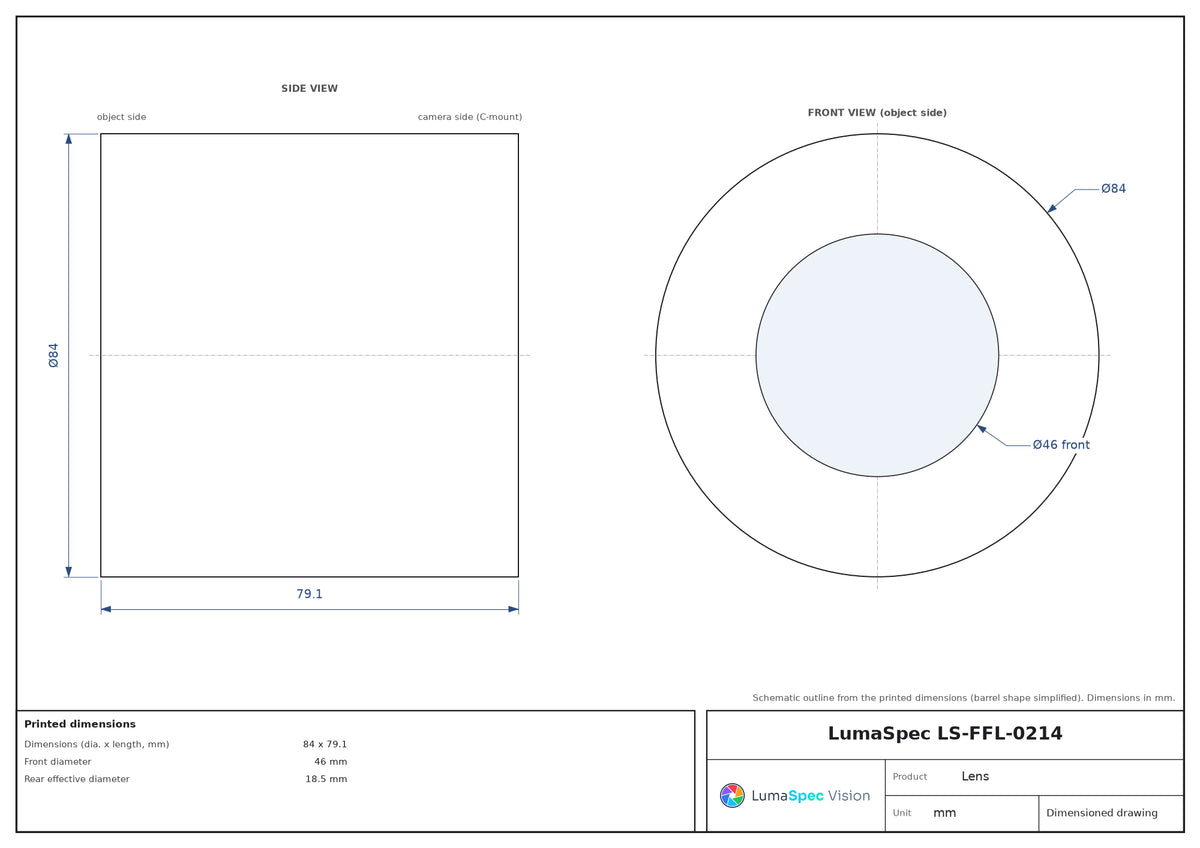

  • LS-FFL-0214 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

6.5 mm lens, 1.1", C-mount (LS-FFL-0214)

Model LS-FFL-0214

  • Focal length6.5 mm
  • MountC-mount
  • Sensor1.1"
  • Aperture2.5-16
  • ResolutionCenter 200lp/mm, corner 100lp/mm
$1,389.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0214
Angle of viewH 95.7 x V 78.7 deg (D 109.1 deg)
Angle of view @ 1.1″95.7° × 78.7°
Angle of view @ 1″89.9° × 73.0°
Angle of view @ 2/3″68.1° × 53.5°
Entrance pupil position21.6 (E.P.)
Exit pupil-61.7mm
Flange back17.526mm in air
Front / rear effective dia.Front 46.0mm / Rear 18.5mm
Lens typeFixed Focal Length
Minimum object distance (m)0.1
Shooting range at mod256(H)×190(V)
SpectrumVisible
Thumb screwM2

Optics

Focal length6.5 mm
Aperture (F)2.5-16
Distortion-1.51% (TV)
Back focus10.9mm in air
Filter threadM82x0.75
Focus controlManual
Focus range0.1 m - ∞
Image circle17.6 mm
Image size dimensions14.1 mm x 10.6 mm
Iris controlManual

Sensor and imaging

Max. sensor format1.1"
Resolution center/cornerCenter 200lp/mm, corner 100lp/mm

Environment and compliance

Operating temperature range-10 to +50 °C
Storage temperature range-20~+60 C

Mechanical

MountC-mount
Dimensions (dia. x length, mm)84 x 79.1
Front diameter46 mm
Picture size (largest format)10.6x14.1mm
Weight (g)300

Other models in the Lens series, 1.1", C-mount (S18) series

See all 7 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0128 12 mm $849.00 Quote Lead time confirmed with your quote View
LS-FFL-0158 25 mm $879.00 Quote Lead time confirmed with your quote View
LS-FFL-0176 35 mm $879.00 Quote Lead time confirmed with your quote View
LS-FFL-0198 50 mm $879.00 Quote Lead time confirmed with your quote View
LS-FFL-0142 16 mm $929.00 Quote Lead time confirmed with your quote View
LS-FFL-0222 8.5 mm $939.00 Quote Lead time confirmed with your quote View
