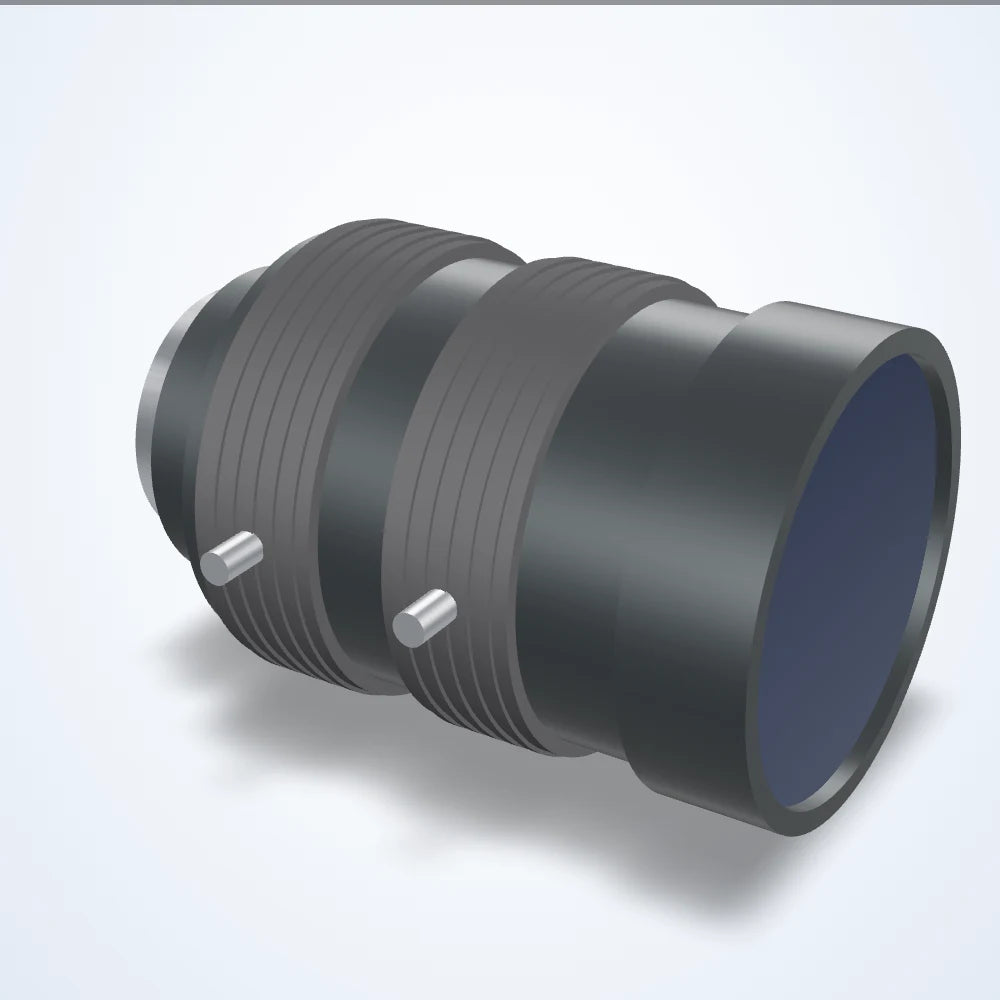

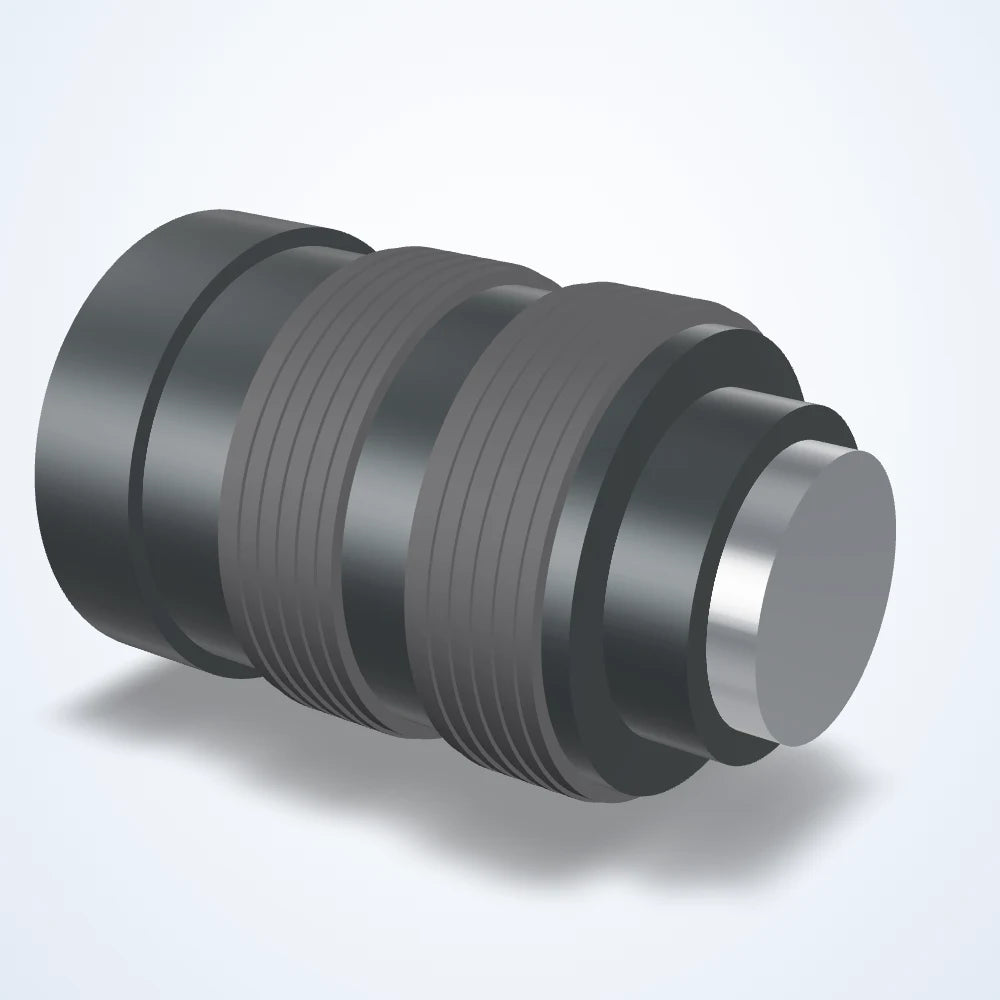

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1.1", C-mount, focus range 0.2 m - ∞ (LS-FFL-0176)
Model LS-FFL-0176
- Focal length35 mm
- Magnification0.46×
- MountC-mount
- Sensor1.1"
- Aperture1.8-16
- ResolutionCenter 200lp/mm, corner 100lp/mm
$879.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0176 |
|---|---|
| Angle of view | H 22.1 x V 16.7 deg (D 27.5 deg) |
| Angle of view @ 1.1″ | 22.1° × 16.7° |
| Angle of view @ 1″ | 20.2° × 15.2° |
| Angle of view @ 2/3″ | 14.0° × 10.5° |
| Entrance pupil position | 44.9 (E.P.) |
| Exit pupil | -40.0mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 33.4mm / Rear 16.2mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 10mm ring | 71 mm |
| Minimum object distance with 1mm ring | 170 mm |
| Minimum object distance with 20mm ring | 42 mm |
| Minimum object distance with 5mm ring | 106 mm |
| Shooting range at mod | 84(H)×63(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | 0.01% (TV) |
| Back focus | 15.5mm in air |
| Filter thread | M40.5x0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 17.6 mm |
| Image size dimensions | 14.1 mm x 10.6 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.46× |
| Magnification with 1mm ring | 0.2× |
| Magnification with 20mm ring | 0.75× |
| Magnification with 5mm ring | 0.31× |
Sensor and imaging
| Max. sensor format | 1.1" |
|---|---|
| Resolution center/corner | Center 200lp/mm, corner 100lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

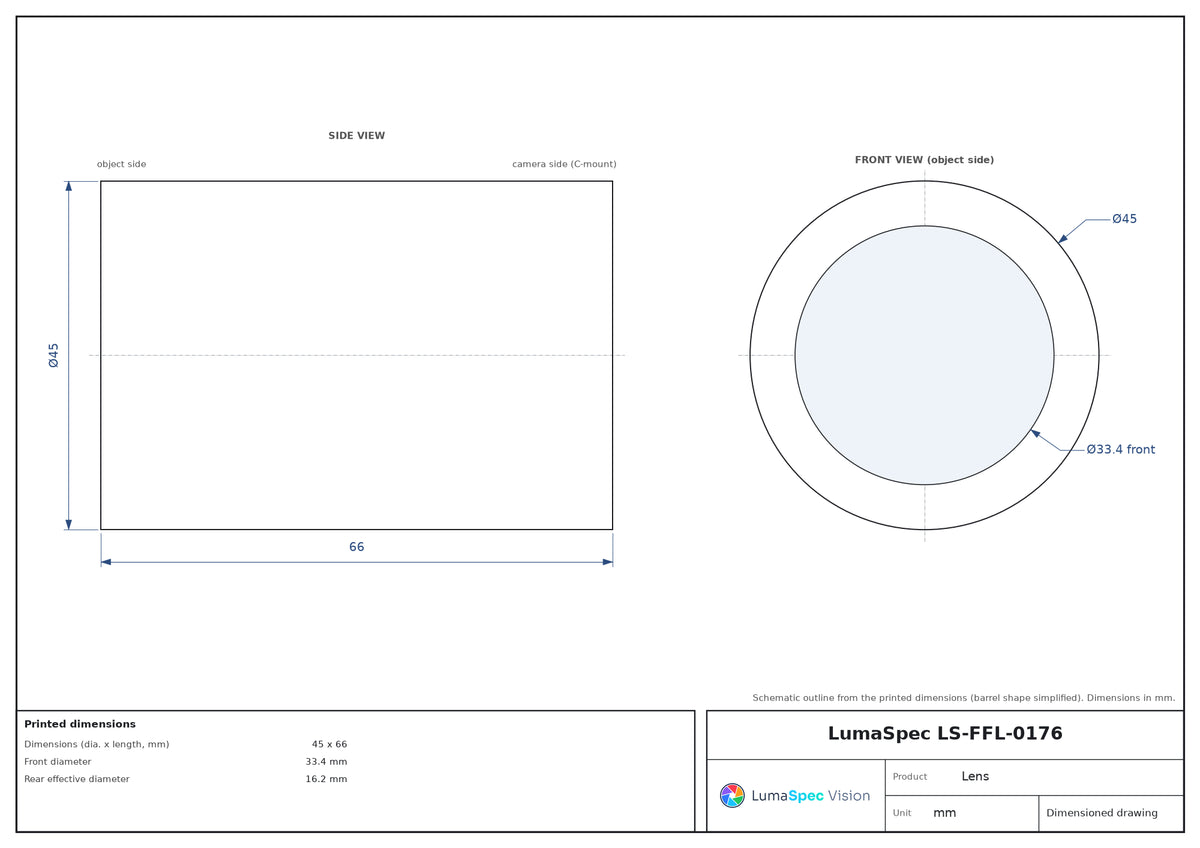

| Dimensions (dia. x length, mm) | 45 x 66 |
| Front diameter | 33.4 mm |
| Picture size (largest format) | 10.6x14.1mm |
| Weight (g) | 205 |
