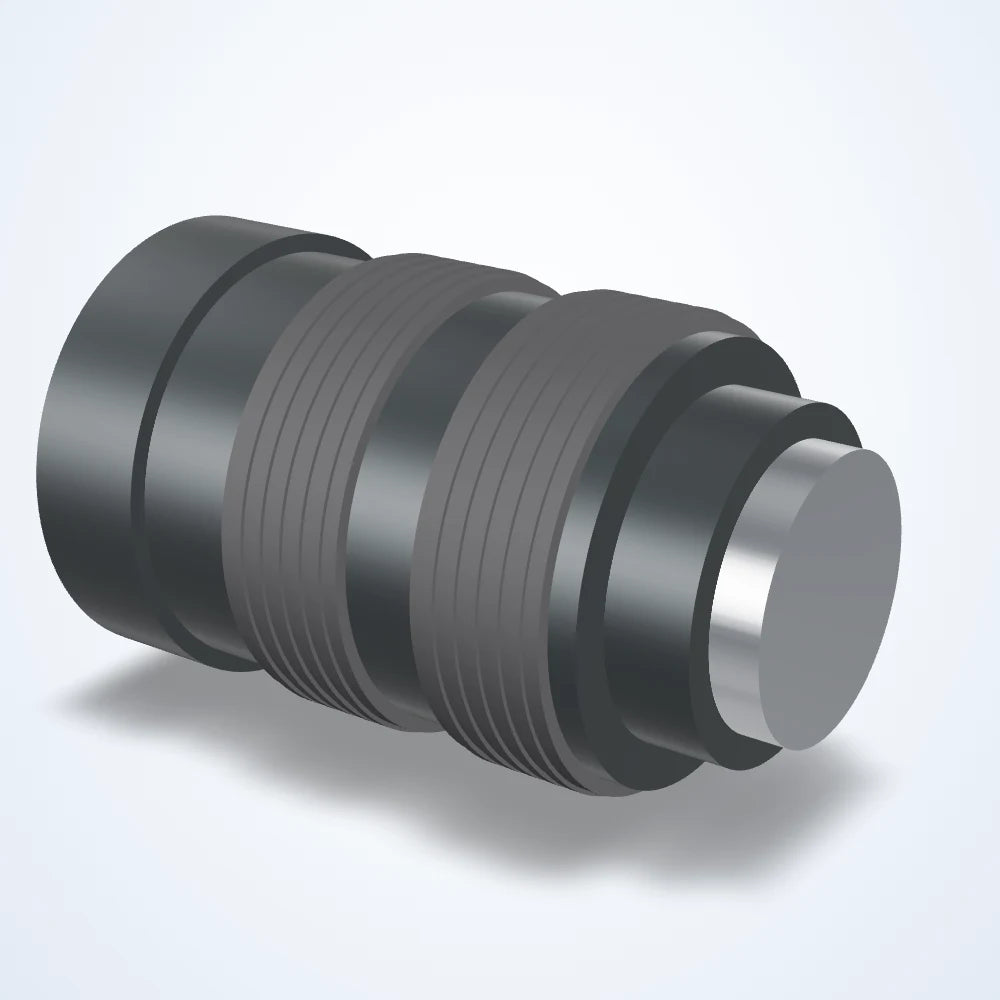

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 1.1", C-mount (LS-FFL-0142)
Model LS-FFL-0142
- Focal length16 mm
- Magnification0.2×
- MountC-mount
- Sensor1.1"
- Aperture1.8-16
- ResolutionCenter 200 lp/mm / Corner 100 lp/mm
$929.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0142 |
|---|---|
| Angle of view | 48.0 x 36.7 deg (H x V), 58.3 deg diagonal |
| Angle of view @ 1.1″ | 48.0° × 36.7° |
| Angle of view @ 1″ | 43.6° × 33.4° |
| Angle of view @ 2/3″ | 30.8° × 23.3° |
| Entrance pupil position | 23.6 mm from front |
| Exit pupil | -58.9mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 26.5mm / Rear 17.0mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 64 mm |
| Minimum object distance with 5mm ring | 20 mm |
| Shooting range at mod | 102(H)×77(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | -0.4% (TV, 1.1") |
| Back focus | 11.9mm in air |
| Field of view at mod (1.1") | V 77mm, H 102mm, D 127mm |
| Filter thread | M35.5x0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 17.6 mm |
| Image size dimensions | 14.1 mm x 10.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.2× |
| Magnification with 5mm ring | 0.45× |
Sensor and imaging
| Max. sensor format | 1.1" |
|---|---|
| Resolution center/corner | Center 200 lp/mm / Corner 100 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

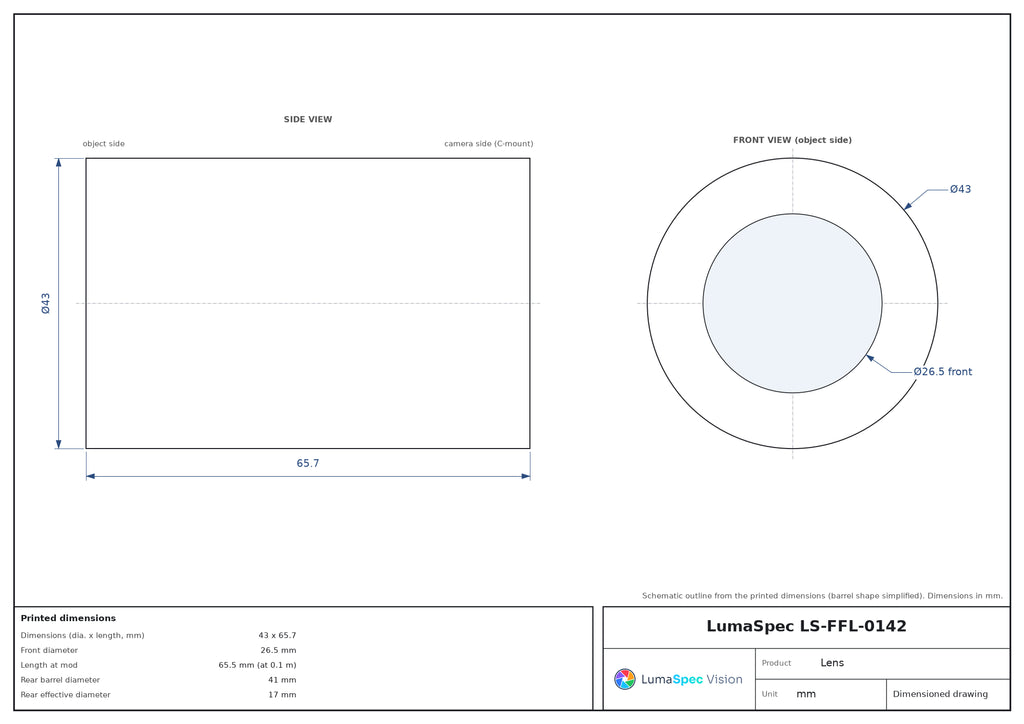

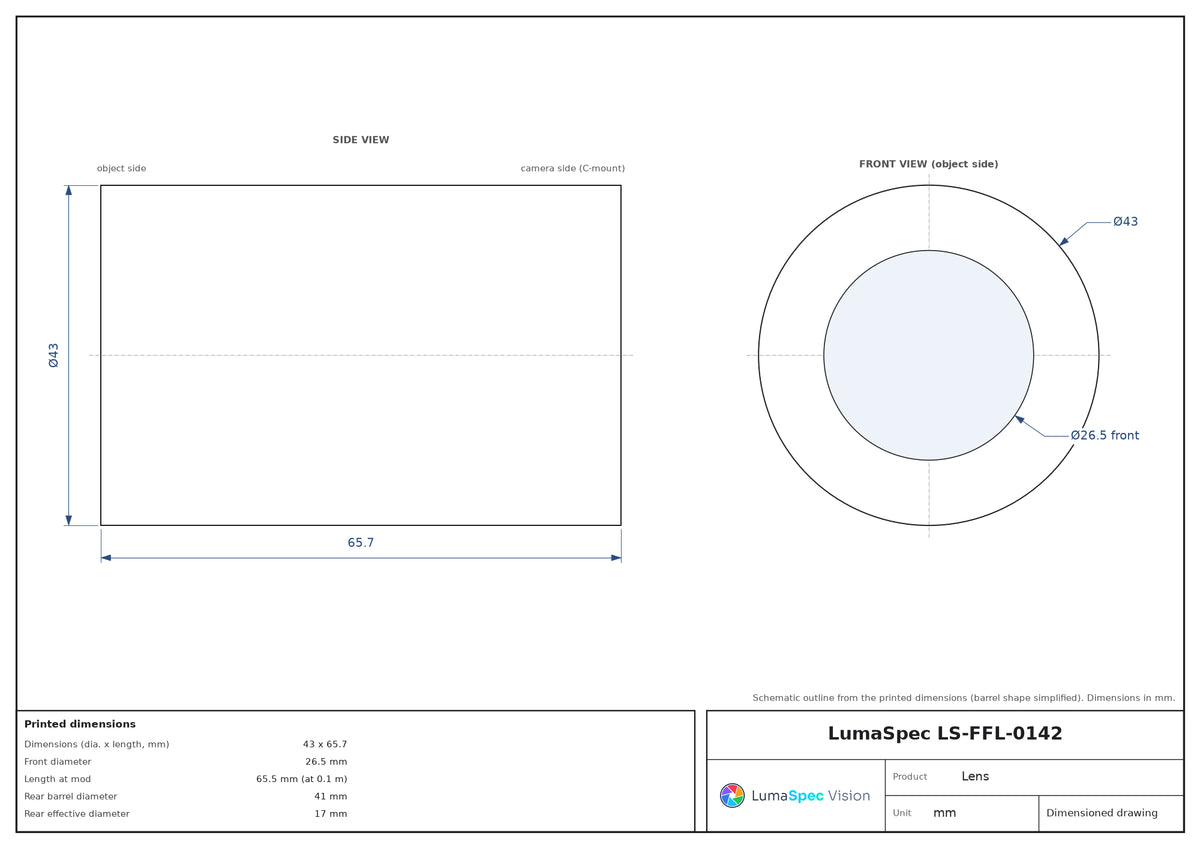

| Dimensions (dia. x length, mm) | 43 x 65.7 |
| Front diameter | 26.5 mm |
| Length at mod | 65.5 mm (at 0.1 m) |
| Mount thread | 1-32UNF |
| Rear barrel diameter | 41 mm |
| Weight (g) | 200 |
Other models in the Lens series, 1.1", C-mount (S18) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0128 | 12 mm | $849.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0158 | 25 mm | $879.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0176 | 35 mm | $879.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0198 | 50 mm | $879.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0222 | 8.5 mm | $939.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0214 | 6.5 mm | $1,389.00 Quote | Lead time confirmed with your quote | View |
