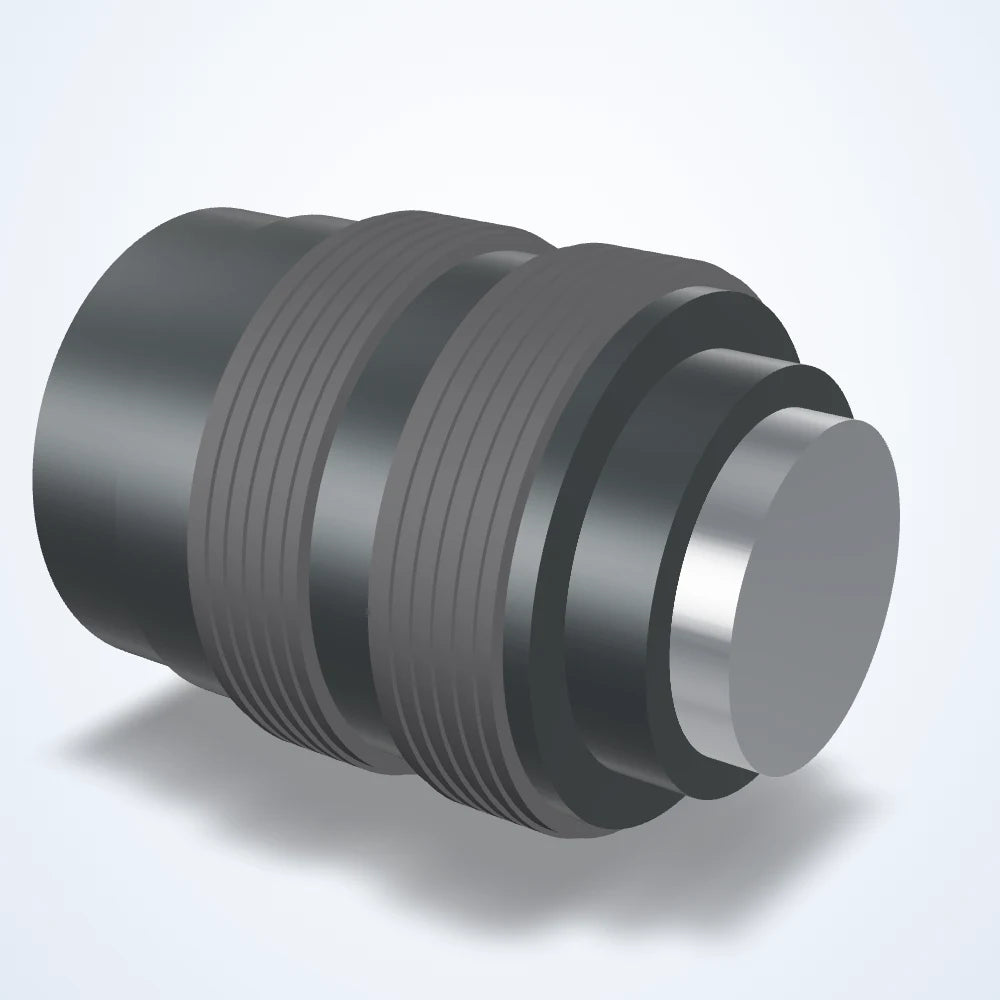

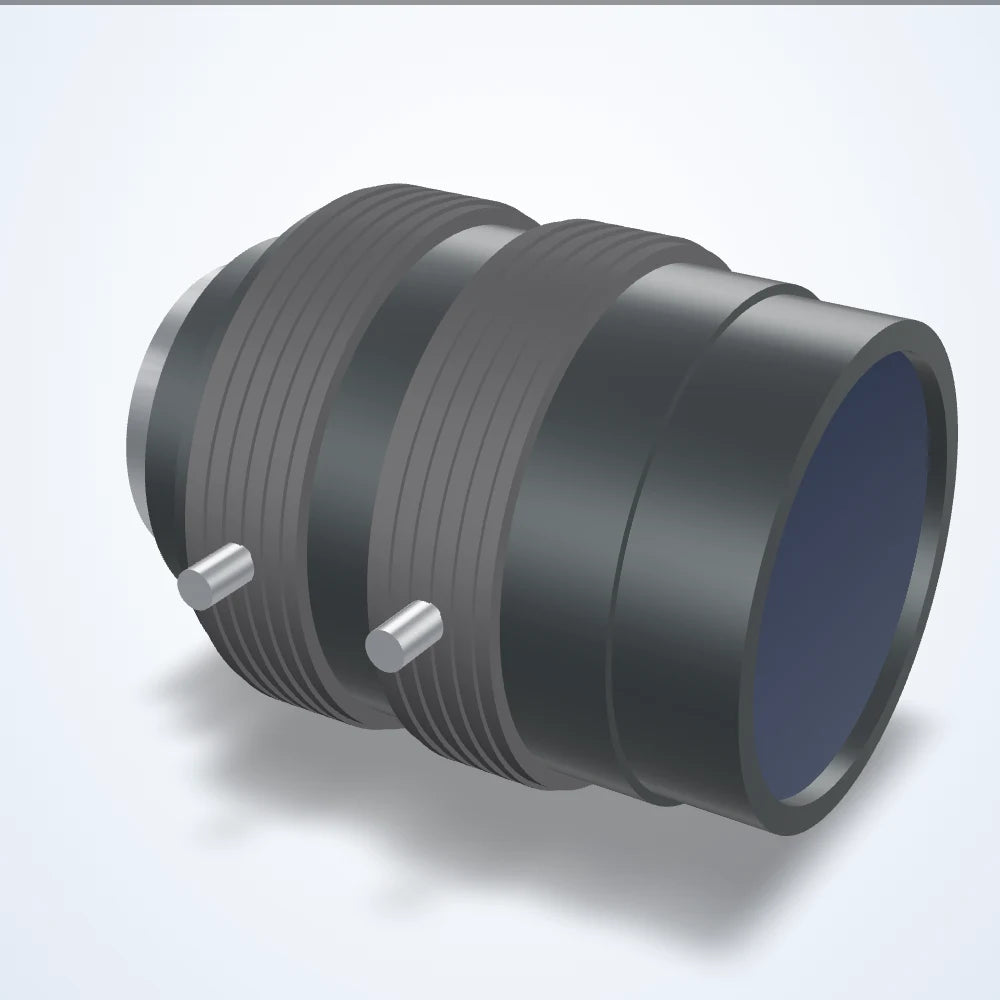

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 1", C-mount, F1.4-16, SWIR (LS-FFL-0144)
Model LS-FFL-0144
- Focal length16 mm
- MountC-mount
- Sensor1"
- Aperture1.4-16
- Resolution120
$1,389.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0144 |
|---|---|
| Angle of view | 44.3 x 33.6 deg (H x V), 54.3 deg diagonal |
| Angle of view @ 1/1.8″ | 25.3° × 19.0° |
| Angle of view @ 1″ | 44.3° × 33.6° |
| Angle of view @ 2/3″ | 30.8° × 23.2° |
| Entrance pupil position | 24.7 mm from front |
| Exit pupil | -128.5mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 21.5mm / Rear 18.8mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Shooting range at mod (1") | V 186.2mm, H 251.5mm, D 318.3mm |
| Spectrum | SWIR |
| Thumb screw | M2, position selectable (120 deg); front view shows 3 positions |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -1.0% (TV) |
| Back focus | 12.6mm in air |
| Filter thread | M35.5x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100 lp/mm / Corner 80 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

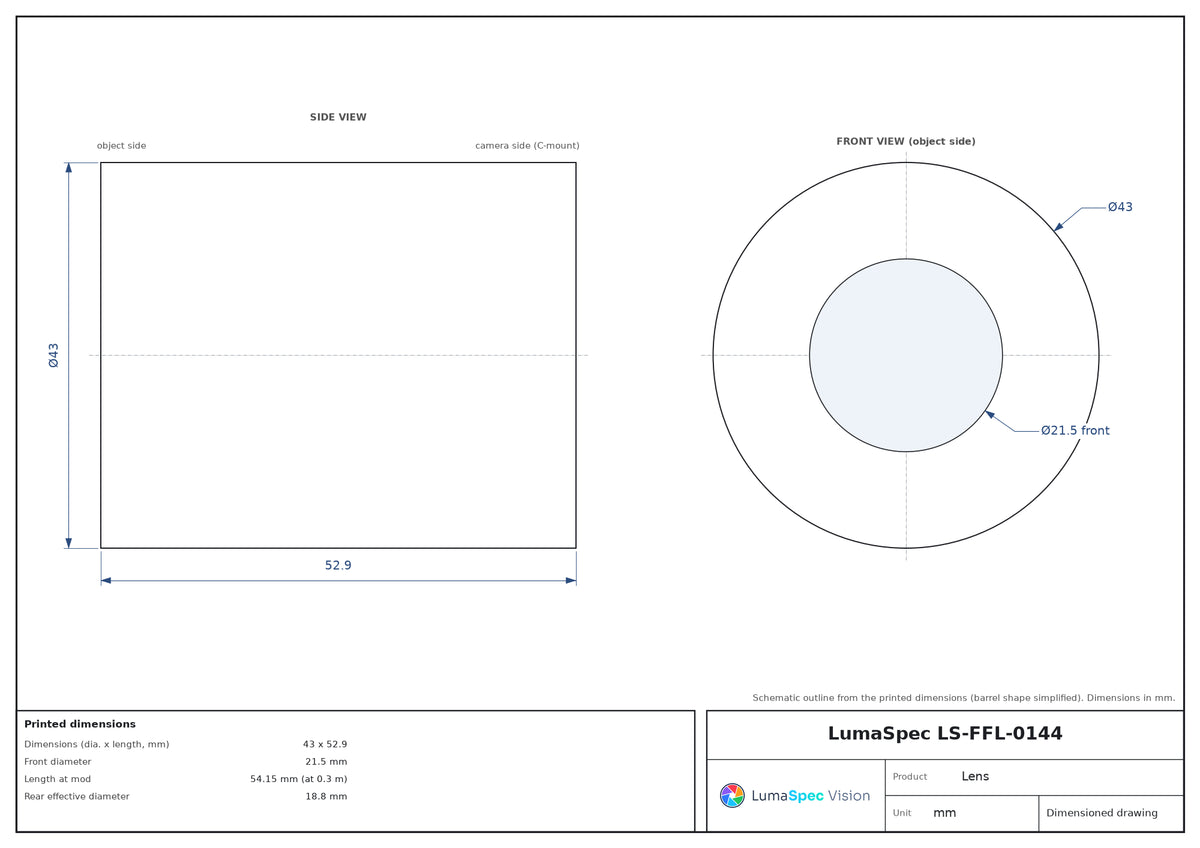

| Dimensions (dia. x length, mm) | 43 x 52.9 |
| Front diameter | 21.5 mm |
| Length at mod | 54.15 mm (at 0.3 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 150 |
