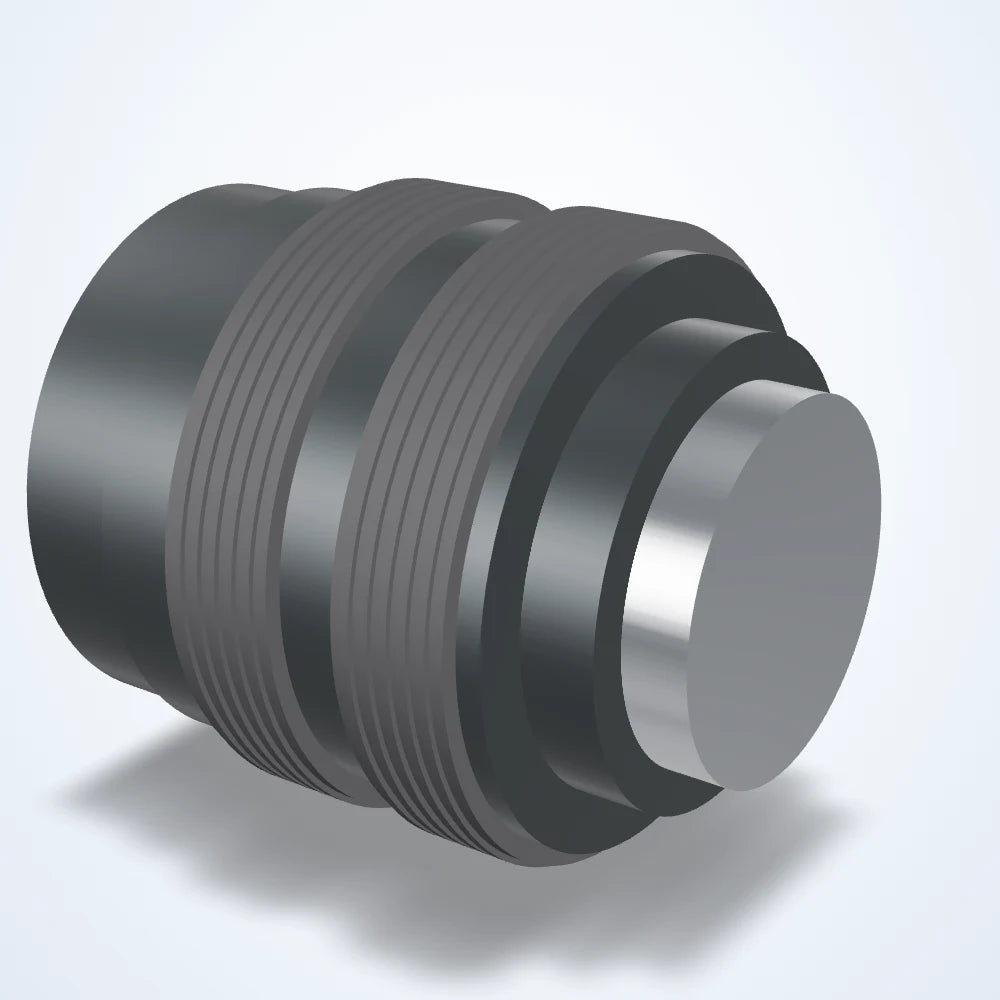

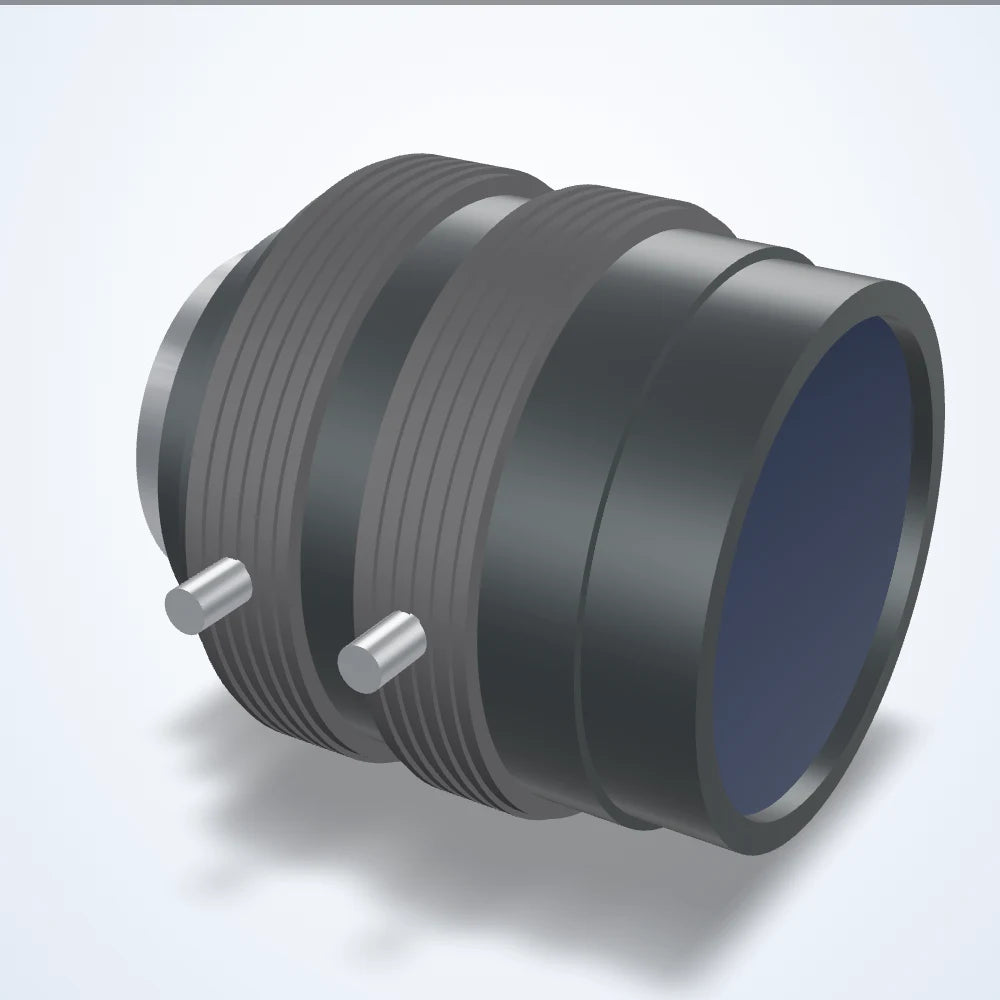

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1", C-mount, F1.4-16, SWIR (LS-FFL-0178)
Model LS-FFL-0178
- Focal length35 mm
- MountC-mount
- Sensor1"
- Aperture1.4-16
- Resolution120
$1,389.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0178 |
|---|---|
| Angle of view | H 20.9 x V 15.8 deg (D 26.1 deg) |
| Angle of view @ 1/1.8″ | 11.8° × 8.8° |
| Angle of view @ 1″ | 20.9° × 15.8° |
| Angle of view @ 2/3″ | 14.4° × 10.8° |
| Entrance pupil position | 29.5 (E.P.) |
| Exit pupil | -50.9mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 24.3mm / Rear 19.1mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Shooting range at mod | 110.1(H)×82.0(V) |
| Spectrum | SWIR |
| Thumb screw | M2, position selectable (120deg) |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -0.5% (TV) |
| Back focus | 16.8mm in air |
| Filter thread | M35.5x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

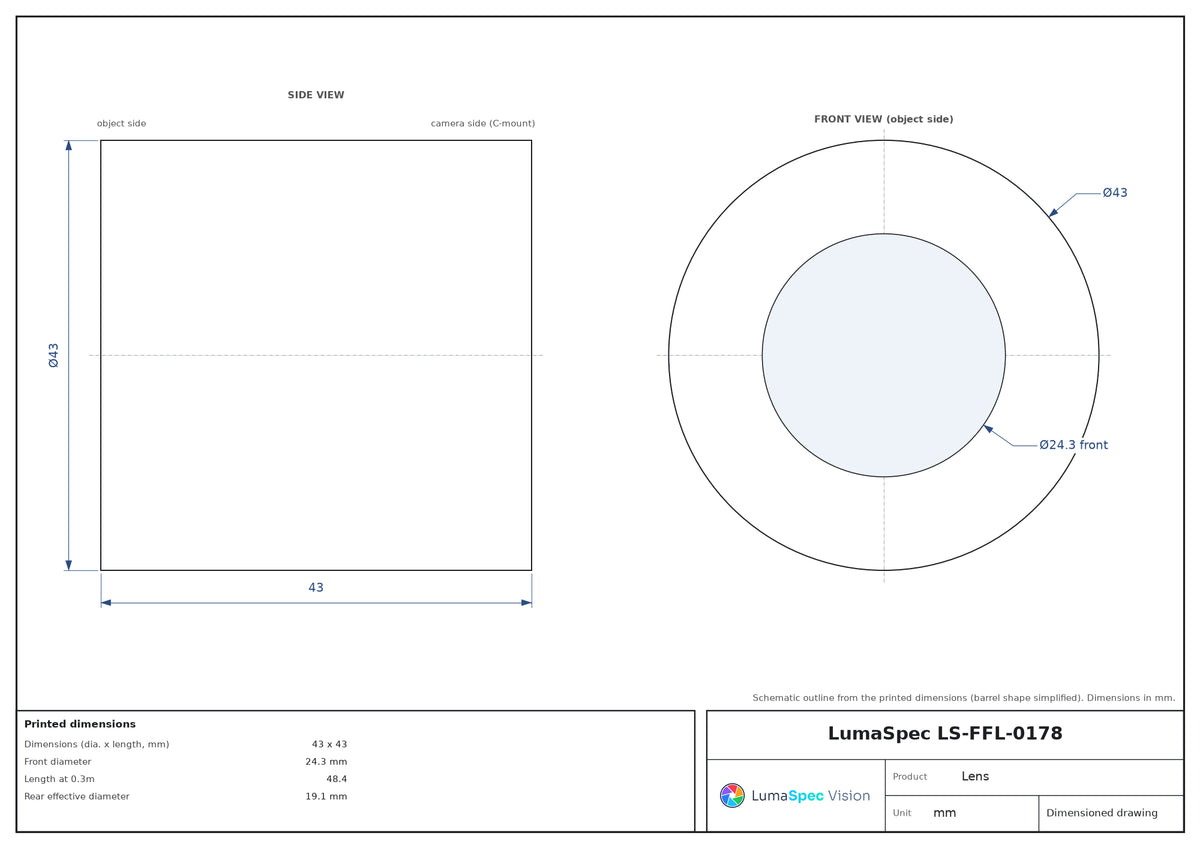

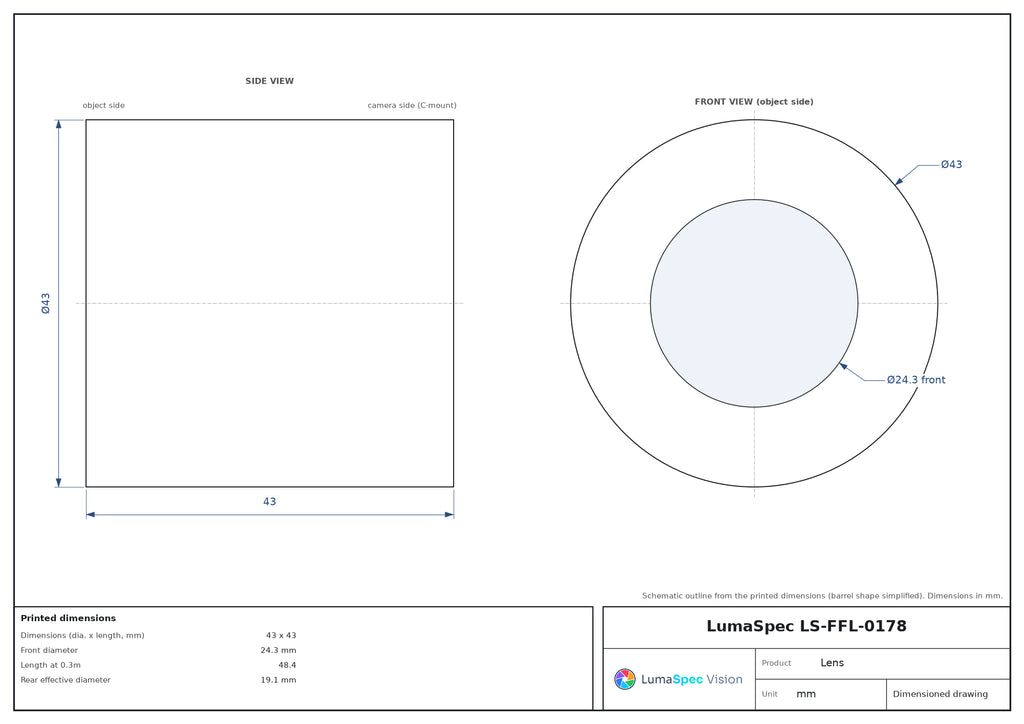

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 43 x 43 |
| Front diameter | 24.3 mm |
| Length at 0.3m | 48.4 |
| Picture size (largest format) | 9.6x12.8mm |
| Weight (g) | 135 |
