Machine vision lenses
25 mm lens, 1", C-mount, F1.4-16, SWIR (LS-FFL-0160)
Model LS-FFL-0160
- Focal length25 mm
- MountC-mount
- Sensor1"
- Aperture1.4-16
- Resolution120
$1,389.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0160 |
|---|---|
| Angle of view | 29.3 x 22.0 deg (H x V), 36.6 deg diagonal |
| Angle of view @ 1/1.8″ | 16.5° × 12.4° |
| Angle of view @ 1″ | 29.3° × 22.0° |
| Angle of view @ 2/3″ | 20.2° × 15.1° |
| Entrance pupil position | 27.2 mm from front |
| Exit pupil | -57.9mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 21.0mm / Rear 19.4mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Shooting range at mod (1") | V 119.2mm, H 160.7mm, D 204.3mm |
| Spectrum | SWIR |
| Thumb screw | M2, position selectable (120 deg); front view shows 3 positions |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | -1.0% (TV) |
| Back focus | 16.5mm in air |
| Filter thread | M35.5x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100 lp/mm / Corner 80 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

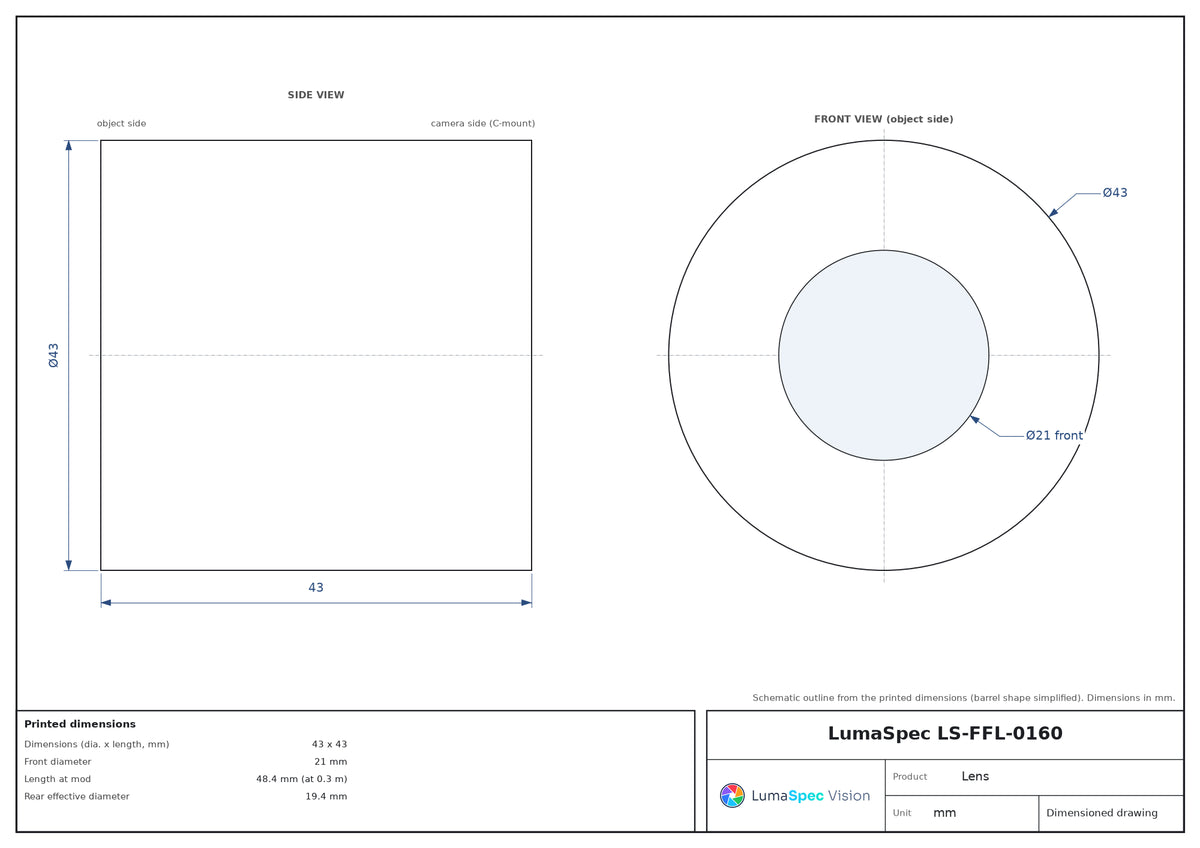

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 43 x 43 |
| Front diameter | 21 mm |
| Length at mod | 48.4 mm (at 0.3 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 135 |
