4.7 mm lens, 1", C-mount (LS-FFL-0194)

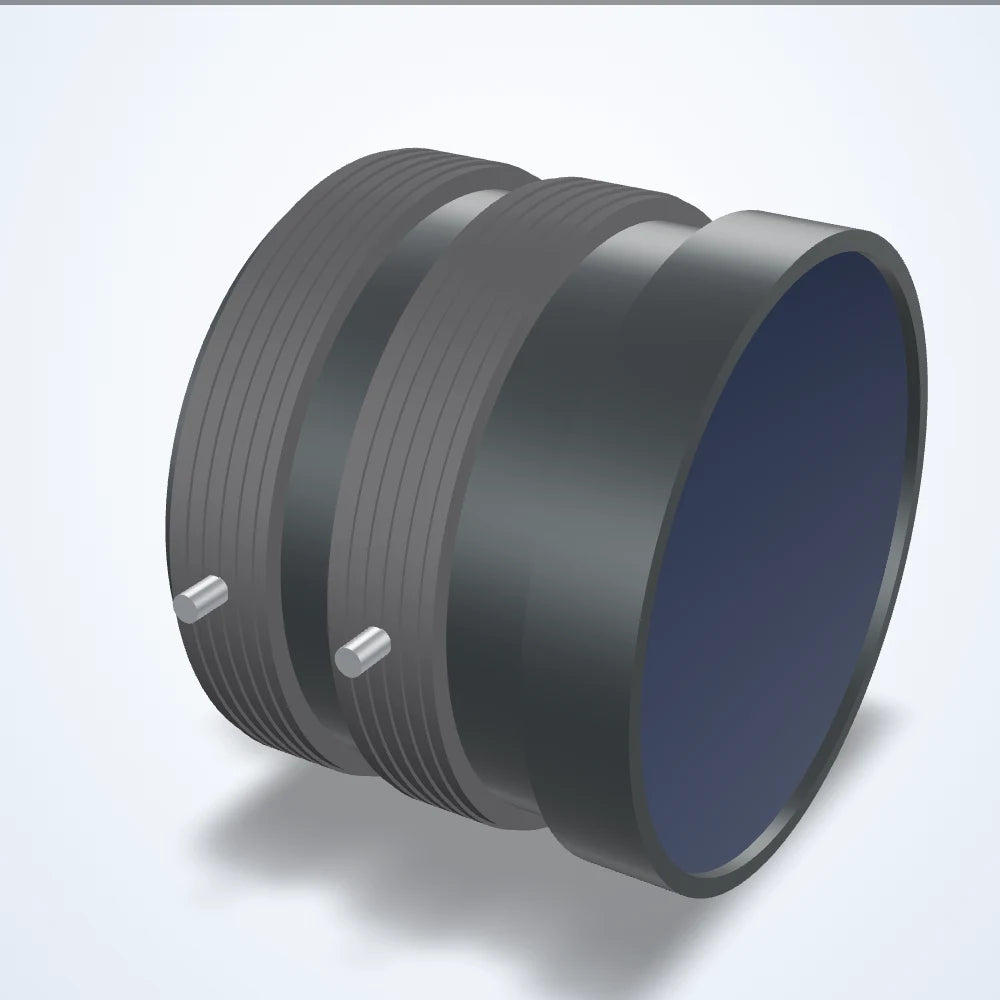

  • 4.7 mm lens, 1", C-mount (LS-FFL-0194)

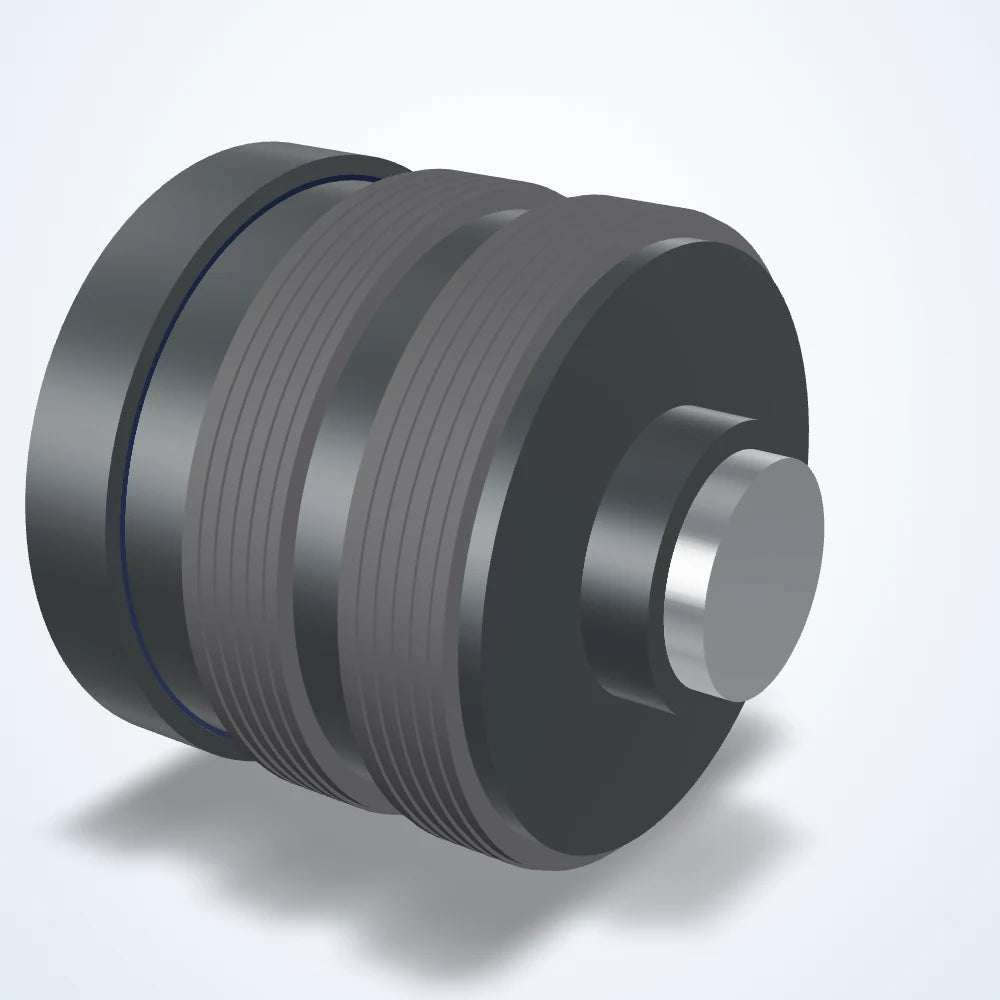

  • 4.7 mm lens, 1", C-mount (LS-FFL-0194) - view 2

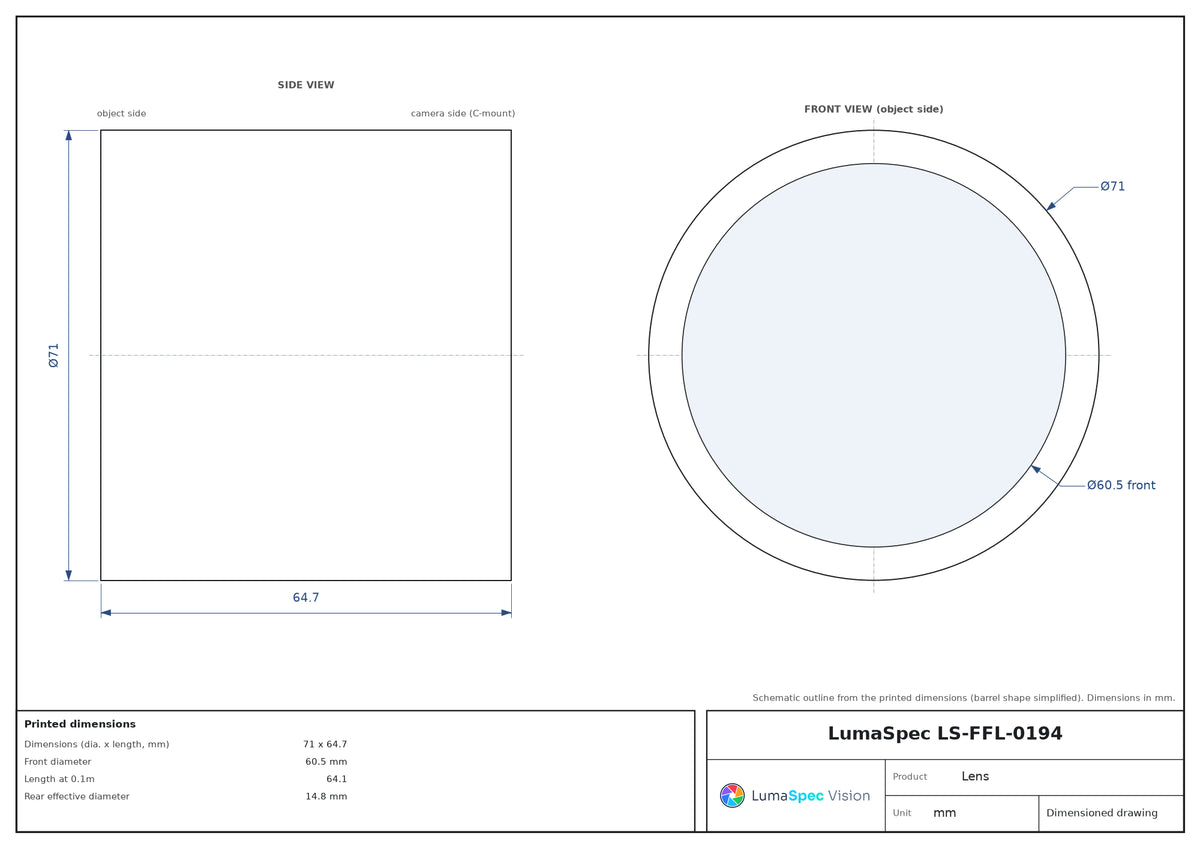

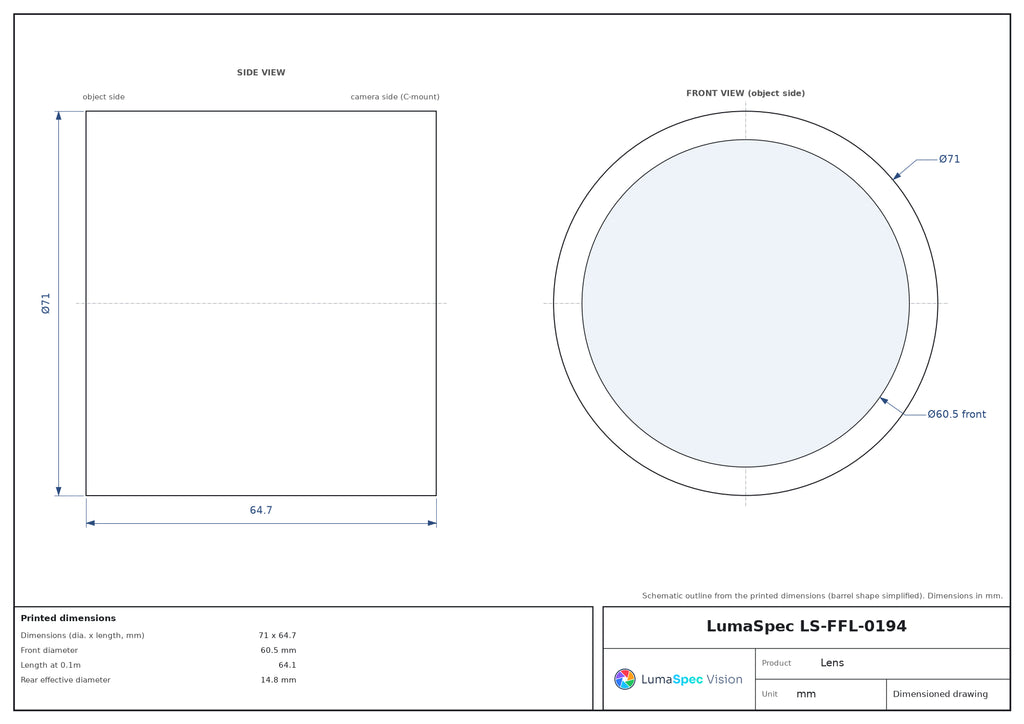

  • LS-FFL-0194 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

4.7 mm lens, 1", C-mount (LS-FFL-0194)

Model LS-FFL-0194

  • Focal length4.7 mm
  • MountC-mount
  • Sensor1"
  • Aperture2.4-11
  • Resolution120
$1,209.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0194
Angle of viewH 112.2 x V 95.4 deg (D 123.0 deg)
Angle of view @ 1/1.8″77.4° × 60.8°
Angle of view @ 1″112.2° × 95.4°
Angle of view @ 2/3″90.0° × 72.2°
Element11 groups 15 elements
Entrance pupil position21.1 (ENP.)
Exit pupil-128.6mm
Flange back17.526mm in air
Front / rear effective dia.Front 60.5mm / Rear 14.8mm
Lens coatingWide band multi coating
Lens typeFixed Focal Length
Minimum object distance (m)0.1
Shooting range at mod375.6(H)×272.1(V)
SpectrumVisible
Thumb screwM2

Optics

Focal length4.7 mm
Aperture (F)2.4-11
Distortion-0.58% (TV)
Back focus9.0mm in air
Filter screw size- (none)
Focus controlManual
Focus range0.1 m - ∞
Image circle16 mm
Image size dimensions12.8 mm x 9.6 mm
Iris controlManual

Sensor and imaging

Max. sensor format1"
Resolution (line pairs / mm @ center)120
Resolution center/cornerCenter 100lp/mm, corner 50lp/mm

Environment and compliance

Operating temperature range-10 to +50 °C
Storage temperature range-20~+60 C

Mechanical

MountC-mount
Dimensions (dia. x length, mm)71 x 64.7
Front diameter60.5 mm
Length at 0.1m64.1
Picture size (largest format)9.6x12.8mm
Weight (g)360
