6 mm lens, 1", C-mount (LS-FFL-0215)

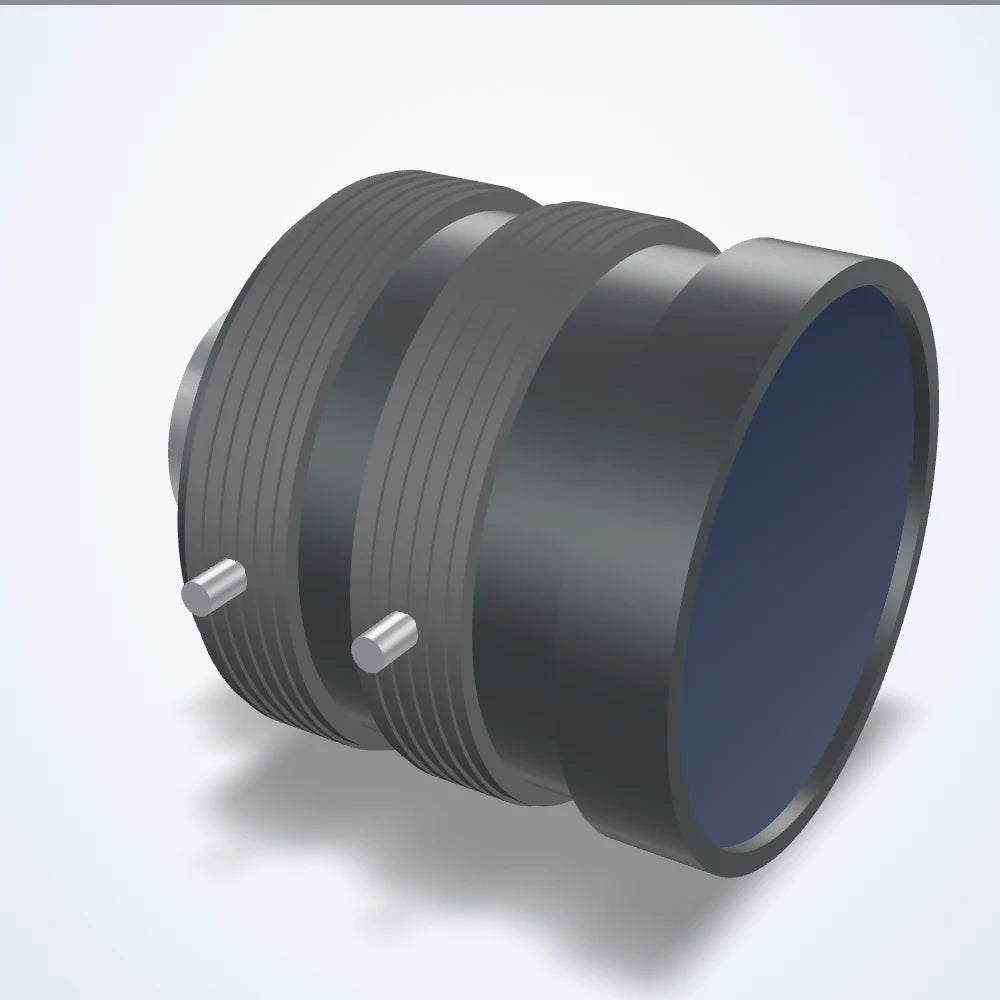

  • 6 mm lens, 1", C-mount (LS-FFL-0215)

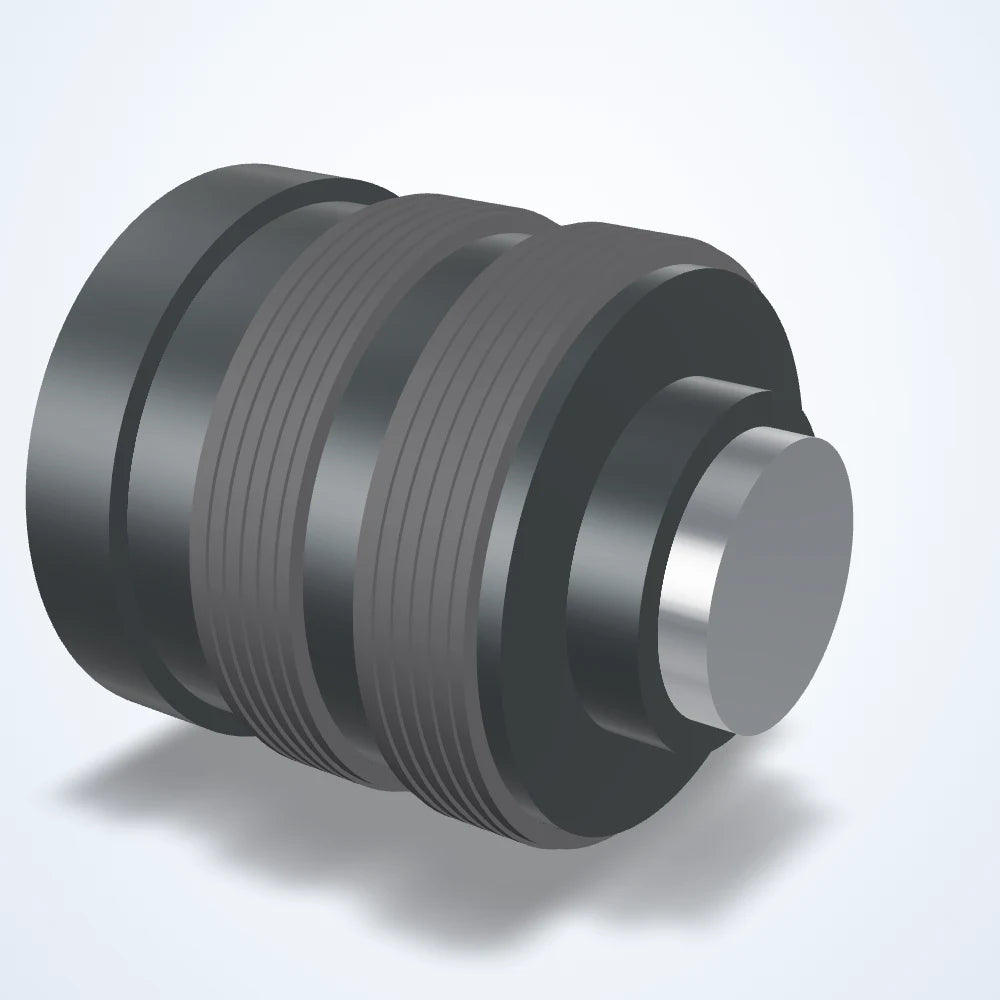

  • 6 mm lens, 1", C-mount (LS-FFL-0215) - view 2

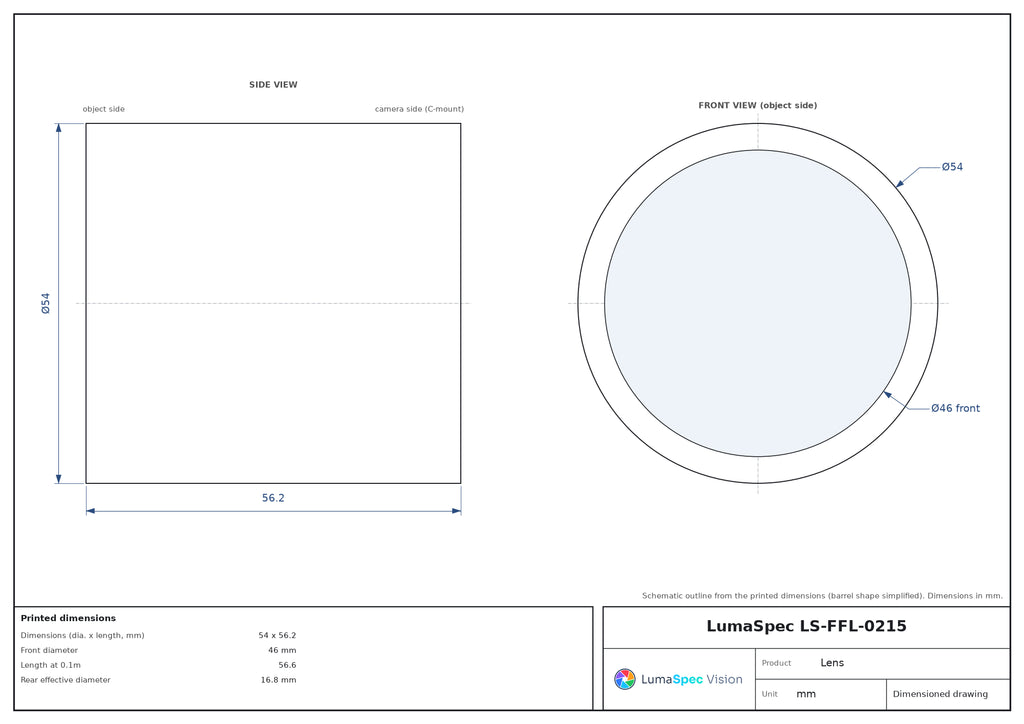

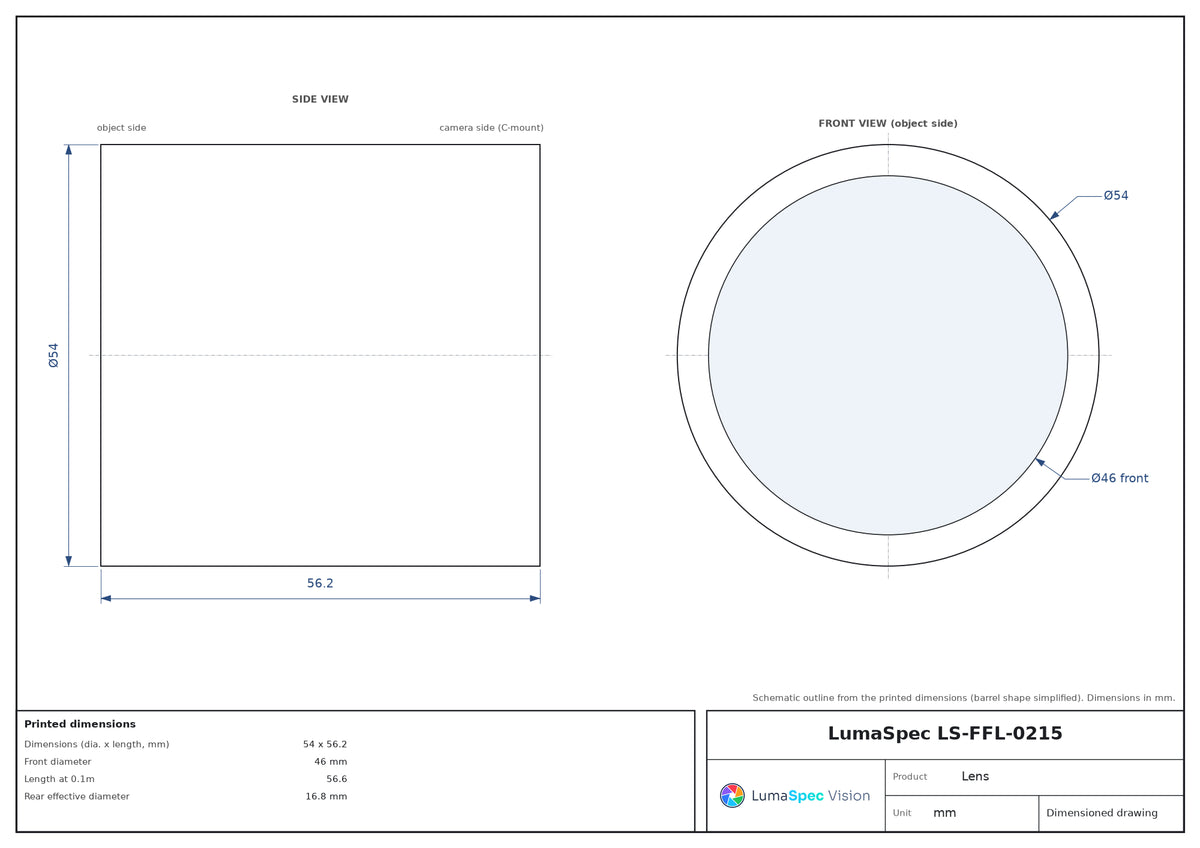

  • LS-FFL-0215 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

6 mm lens, 1", C-mount (LS-FFL-0215)

Model LS-FFL-0215

  • Focal length6 mm
  • MountC-mount
  • Sensor1"
  • Aperture1.8-11
  • Resolution120
$589.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

6 mm lens, 1", C-mount (LS-FFL-0215)LS-FFL-0215

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0215
Angle of viewH 96.8 x V 79.4 deg (D 108.3 deg)
Angle of view @ 1/1.8″62.6° × 48.2°
Angle of view @ 1″96.8° × 79.4°
Angle of view @ 2/3″74.1° × 58.0°
Entrance pupil position18.4 (E.P.)
Exit pupil-293.3mm
Flange back17.526mm in air
Front / rear effective dia.Front 46.0mm / Rear 16.8mm
Lens typeFixed Focal Length
Minimum object distance (m)0.1
Shooting range at mod267.4(H)×196.3(V)
SpectrumVisible
Thumb screwM2

Optics

Focal length6 mm
Aperture (F)1.8-11
Distortion-0.2% (TV)
Back focus11.1mm in air
Filter screw size----- (none)
Focus controlManual
Focus range0.1 m - ∞
Image circle16 mm
Image size dimensions12.8 mm x 9.6 mm
Iris controlManual

Sensor and imaging

Max. sensor format1"
Resolution (line pairs / mm @ center)120

Environment and compliance

Operating temperature range-10 to +50 °C
Storage temperature range-20~+60 C

Mechanical

MountC-mount
Dimensions (dia. x length, mm)54 x 56.2
Front diameter46 mm
Length at 0.1m56.6
Picture size (largest format)9.6x12.8mm
Weight (g)215

Other models in the Lens series, 1", C-mount (S19) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0129 12.5 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0143 16 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0159 25 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0177 35 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0199 50 mm $329.00 Quote Lead time confirmed with your quote View
LS-FFL-0220 75 mm $329.00 Quote Lead time confirmed with your quote View
LS-FFL-0223 8 mm $369.00 Quote Lead time confirmed with your quote View
LS-FFL-0194 4.7 mm $1,209.00 Quote Lead time confirmed with your quote View
