Machine vision lenses
50 mm lens, 1", C-mount, F1.4-16, Visible (LS-FFL-0199)
Model LS-FFL-0199
- Focal length50 mm
- Magnification0.3×
- MountC-mount
- Sensor1"
- Aperture1.4-16
- Resolution120
$329.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0199 |
|---|---|
| Angle of view | H 14.5 x V 10.8 deg (D 18.0 deg) |
| Angle of view @ 1/1.8″ | 8.2° × 6.2° |
| Angle of view @ 1″ | 14.5° × 10.8° |
| Angle of view @ 2/3″ | 10.0° × 7.5° |
| Entrance pupil position | 35.7 (E.P.) |
| Exit pupil | -44.4mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 35.0mm / Rear 15.5mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.5 |
| Minimum object distance with 10mm ring | 189 mm |
| Minimum object distance with 1mm ring | 424 mm |
| Minimum object distance with 20mm ring | 124 mm |
| Minimum object distance with 5mm ring | 269 mm |
| Shooting range at mod | 121.8(H)×91.3(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | 0.05% (TV) |
| Back focus | 14.8mm in air |
| Filter thread | M40.5x0.5 |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.3× |
| Magnification with 1mm ring | 0.13× |
| Magnification with 20mm ring | 0.5× |
| Magnification with 5mm ring | 0.2× |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

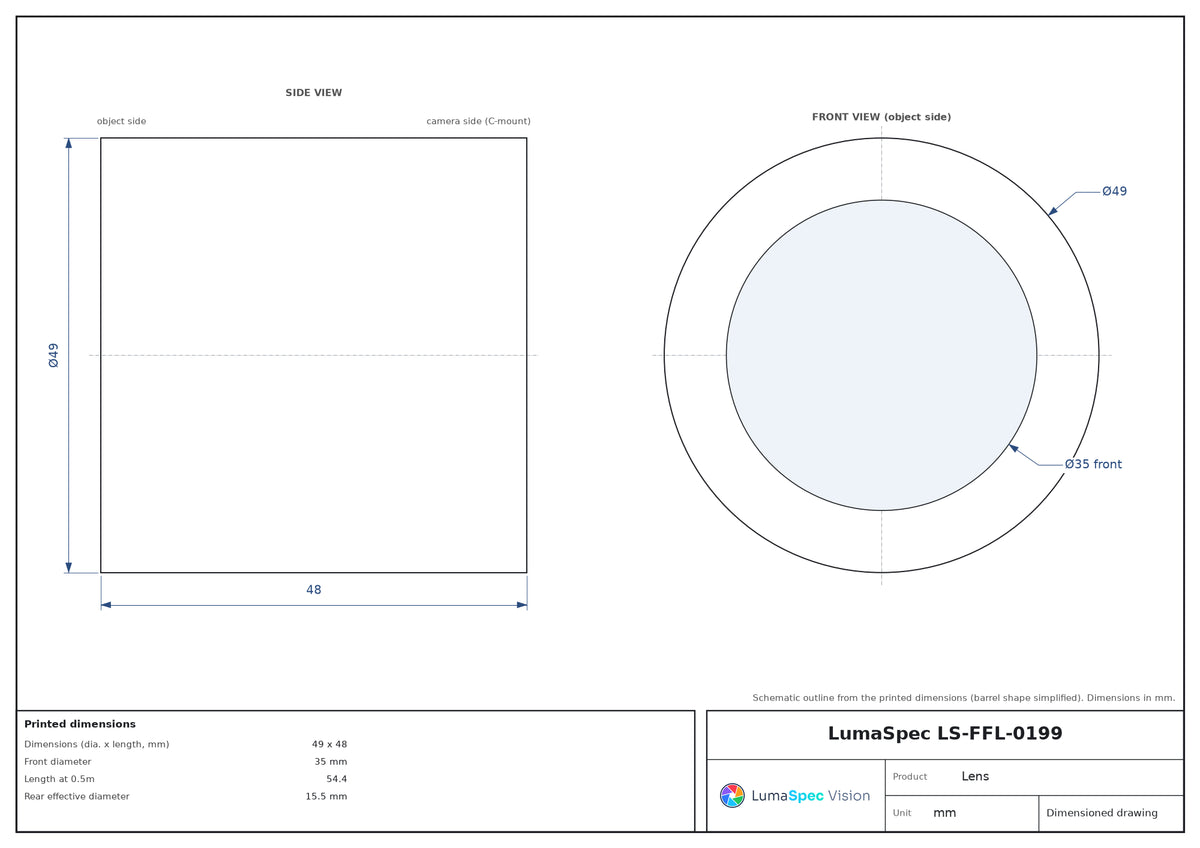

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 49 x 48 |
| Front diameter | 35 mm |
| Length at 0.5m | 54.4 |
| Picture size (largest format) | 9.6x12.8mm |
| Weight (g) | 210 |
