Machine vision lenses

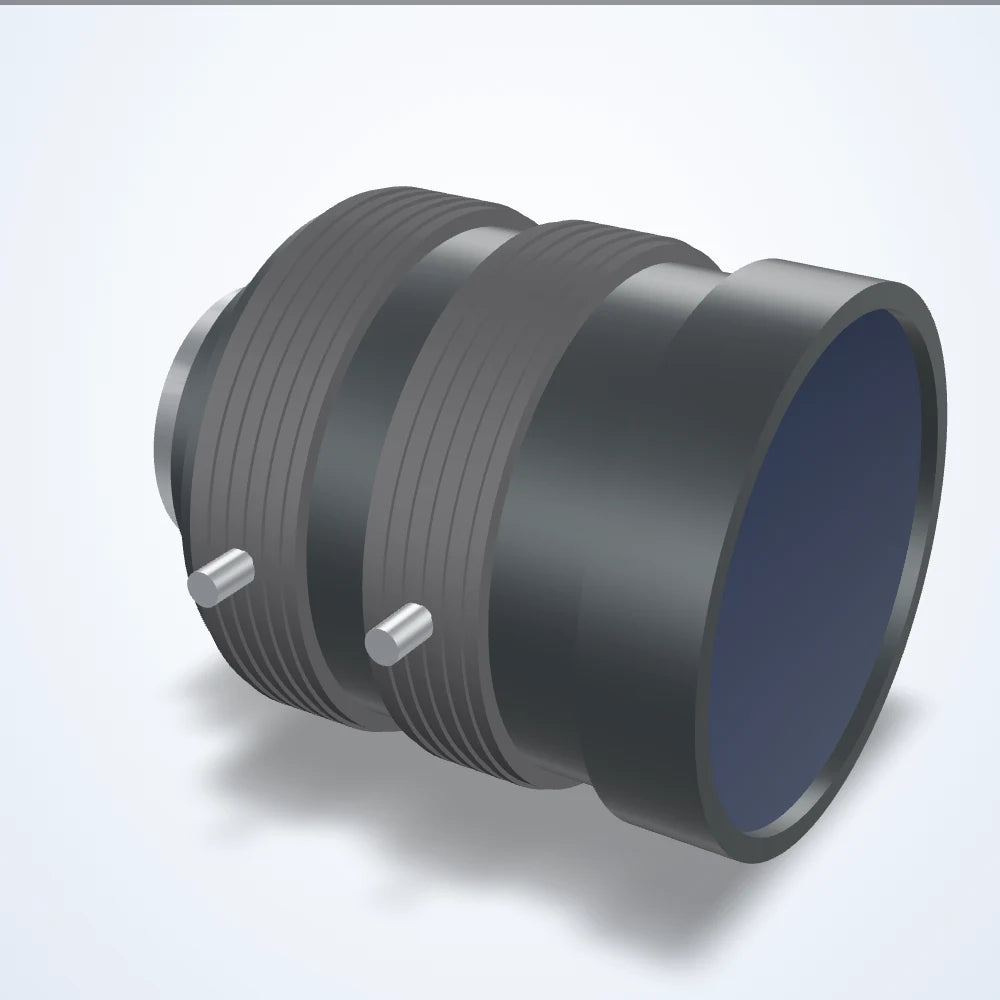

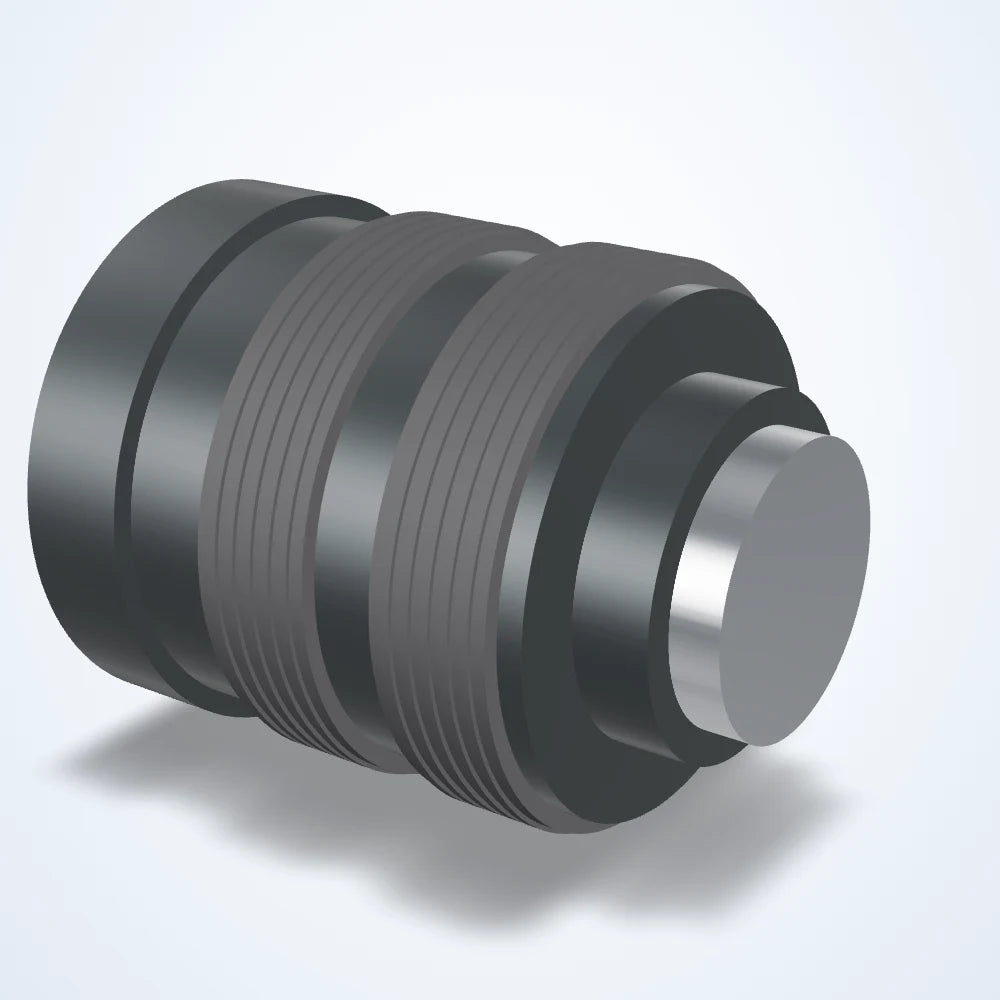

75 mm lens, 1", C-mount, F1.8-16 (LS-FFL-0220)
Model LS-FFL-0220
- Focal length75 mm
- Magnification0.21×
- MountC-mount
- Sensor1"
- Aperture1.8-16
- Resolution120
$329.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0220 |
|---|---|
| Angle of view | H 9.7 x V 7.3 deg (D 12.0 deg) |
| Angle of view @ 1/1.8″ | 5.5° × 4.1° |
| Angle of view @ 1″ | 9.7° × 7.3° |
| Angle of view @ 2/3″ | 6.7° × 5.0° |
| Entrance pupil position | 70.6 (E.P.) |
| Exit pupil | -55.5mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 41.2mm / Rear 16.0mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 1.0 |
| Minimum object distance with 10mm ring | 289 mm |
| Minimum object distance with 1mm ring | 858 mm |
| Minimum object distance with 20mm ring | 251 mm |
| Minimum object distance with 5mm ring | 553 mm |
| Shooting range at mod | 165.5(H)×123.9(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | -0.2% (TV) |
| Back focus | 14.5mm in air |
| Filter thread | M46x0.75 |
| Focus control | Manual |
| Focus range | 1.0 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.21× |
| Magnification with 1mm ring | 0.091× |
| Magnification with 20mm ring | 0.34× |
| Magnification with 5mm ring | 0.14× |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

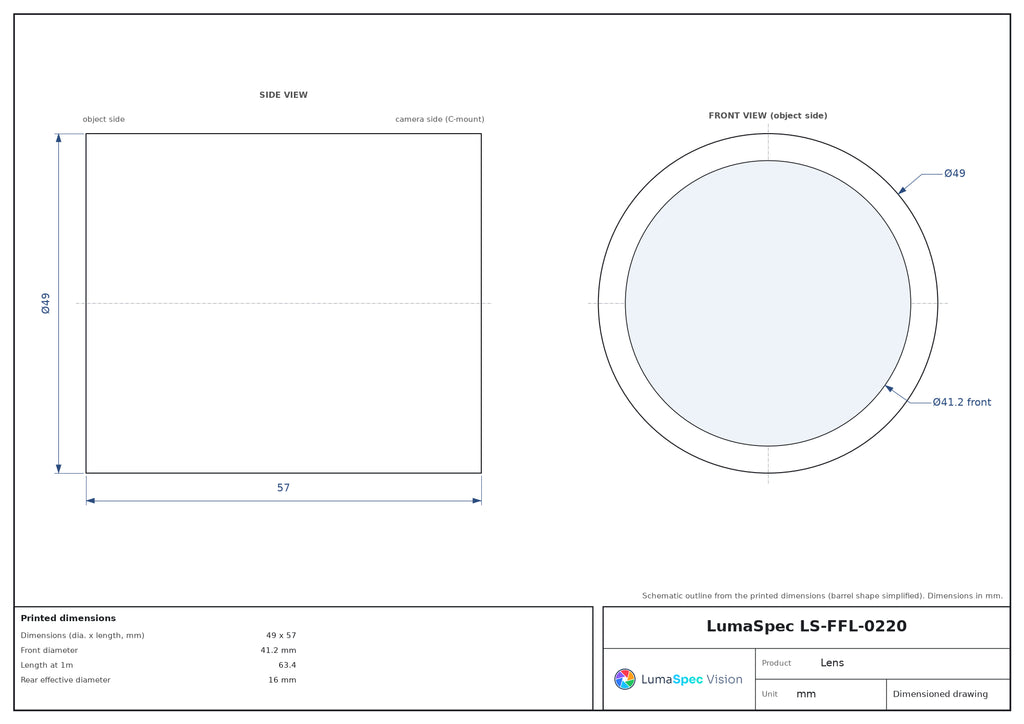

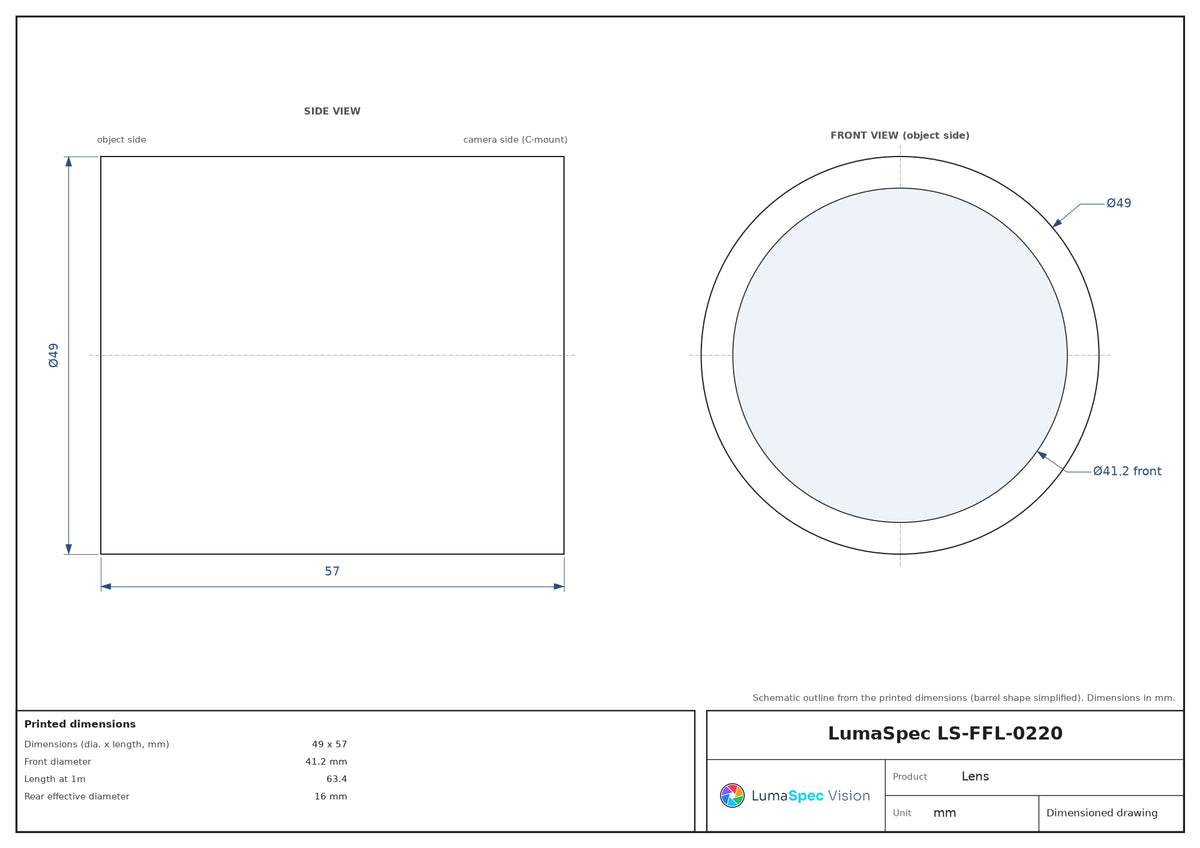

| Dimensions (dia. x length, mm) | 49 x 57 |
| Front diameter | 41.2 mm |
| Length at 1m | 63.4 |
| Picture size (largest format) | 9.6x12.8mm |
| Weight (g) | 195 |
