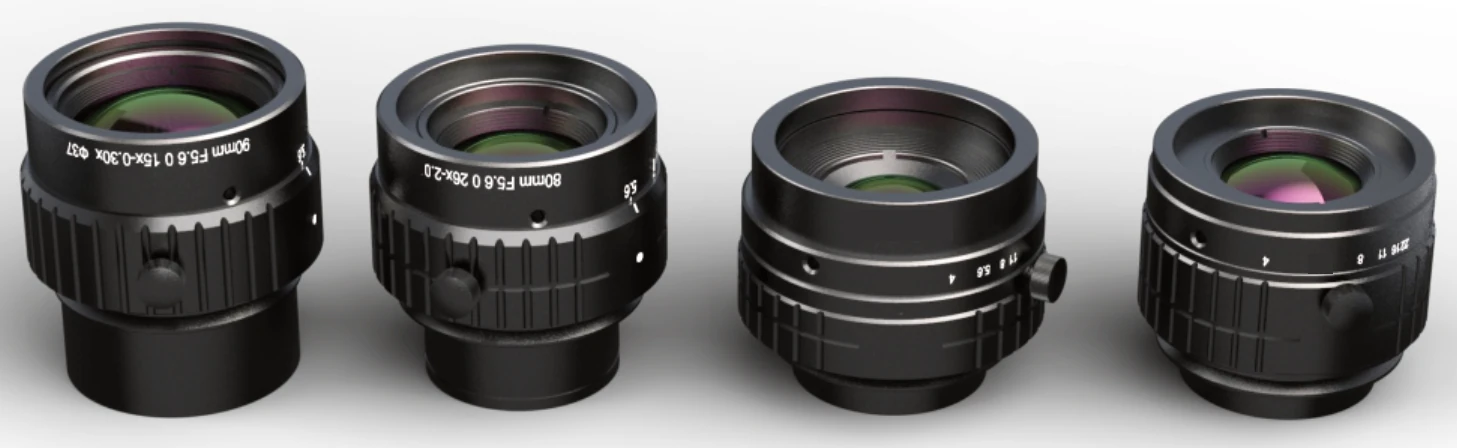

8K high resolution line scan lens
The 8K high resolution line scan lens is a range of 7 line scan lenses from LumaSpec Vision, from $1,439.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 35 mm, M42, M58, M7-mount, 40 mm, 40 mm, M42, M58, M7-mount, 60 mm, 60 mm, M42, M58, M7-mount, 80 mm, M58, M72, M9-mount, 90 mm, M58, M72, M9-mount |
|---|---|
| Mount | M42, M58 |
| Focal length | 25-50 mm, 50-100 mm |
| Sensor format | 4/3" - APS-C, APS-H / Full frame, Medium / large |
Features
- Large image sensor can cover dia. 62mm image plane
- Supporting 8K 5um / 7um high resolution line scan camera
- V mount design, stable, reliable and flexible
- Have 0.01 - 3 double (magnification), multiple models
- Large image sensor can coverφ62mm image plane
- Supporting 8K 5 μm/ 7μm high resolution line scan camera
- Have 0.01 - 3 double, multiple models
Typical uses
- Printing inspection
- Glass cover-plate inspection
- AOI
- Photovoltaic inspection
All 7 models in the 8K high resolution line scan lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-L3545 | 35 mm, M42, M58, M7-mount | $1,439.00 | 2 in stock | View |
| LS-L4028 | 40 mm, M42, M58, M7-mount | $1,459.00 | 3 in stock | View |
| LS-L4056 | 40 mm | $1,459.00 | 5 in stock | View |
| LS-L6040 | 60 mm, M42, M58, M7-mount | $1,519.00 | 5 in stock | View |
| LS-L6056 | 60 mm | $1,519.00 | 5 in stock | View |
| LS-L8056 | 80 mm, M58, M72, M9-mount | $1,589.00 | 5 in stock | View |
| LS-L9040 | 90 mm, M58, M72, M9-mount | $1,619.00 | 3 in stock | View |
