Line scan lenses · 4 models · from $1,459.00

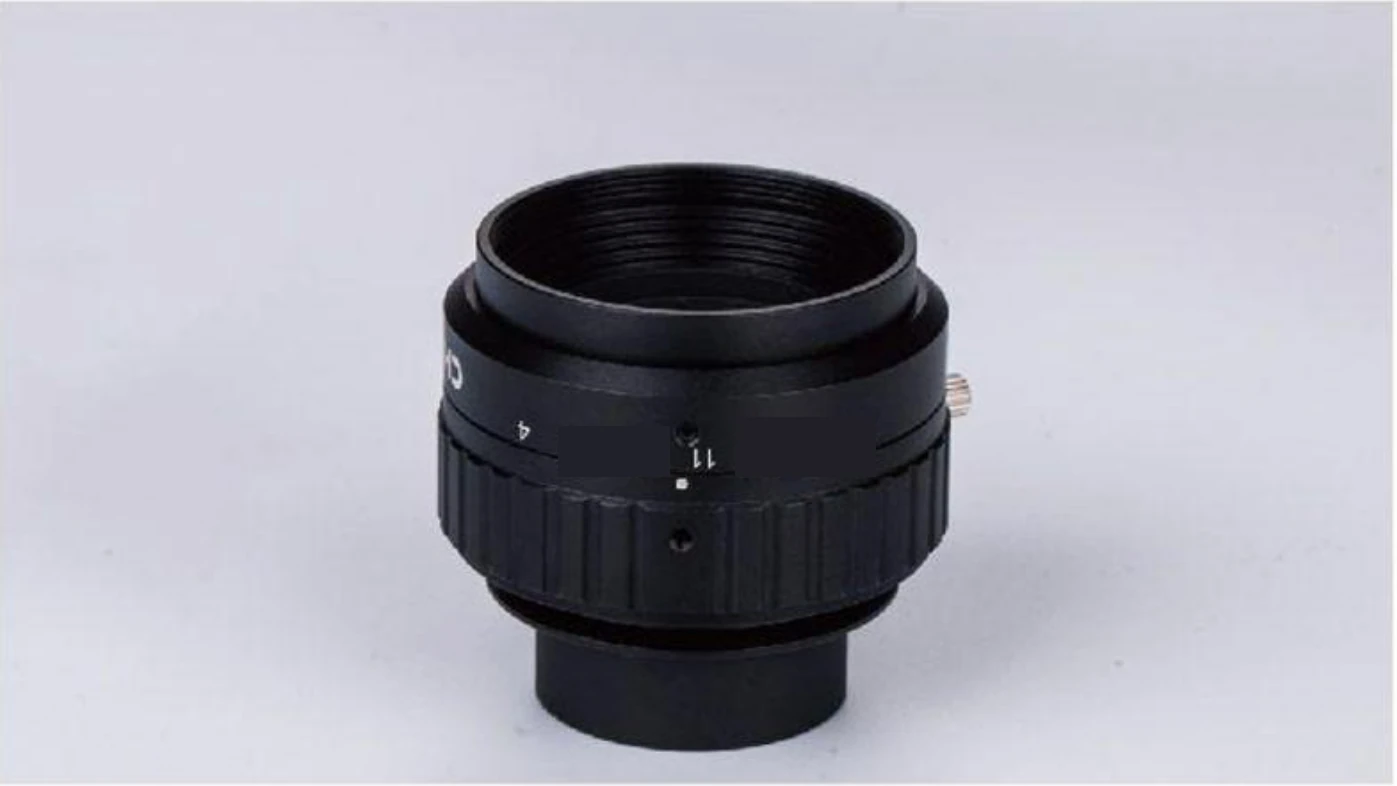

8K line scan lens
The 8K line scan lens is a range of 4 line scan lenses from LumaSpec Vision, from $1,459.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 40 mm, M72×P0.75-mount, 60 mm, V-Mount, 80 mm, V-Mount, 100 mm, V-Mount |
|---|---|
| Mount | V-mount |
| Image circle | 45-60 mm, 60-90 mm |
| Focal length | 25-50 mm, 50-100 mm, 100 mm + |
| Sensor format | Medium / large |
Features
- Specially designed for 8k7µ line scan camera
- Standard EFL and magnification available
- Magnification from 0.02x-0.4x
- V-mount as standard, adaptable to various camera mount
- Applied to big size detection such as lithium battery
Typical uses
- Industrial: height - detecting metal markings
- Electronic component: blemish / stain - LED appearance inspection
- Electronic component: yes or no / identify - identify the battery pack colour
- Industrial: blemish / stain - check the electrode coating for defects
All 4 models in the 8K line scan lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-LS4005B | 40 mm, M72×P0.75-mount | $1,459.00 | 5 in stock | View |
| LS-LS6016A | 60 mm, V-Mount | $1,519.00 | 3 in stock | View |
| LS-LS8003A | 80 mm, V-Mount | $1,589.00 | 3 in stock | View |
| LS-LS0802A | 100 mm, V-Mount | $1,659.00 | 3 in stock | View |
