Line scan lenses · 7 models · from $2,039.00

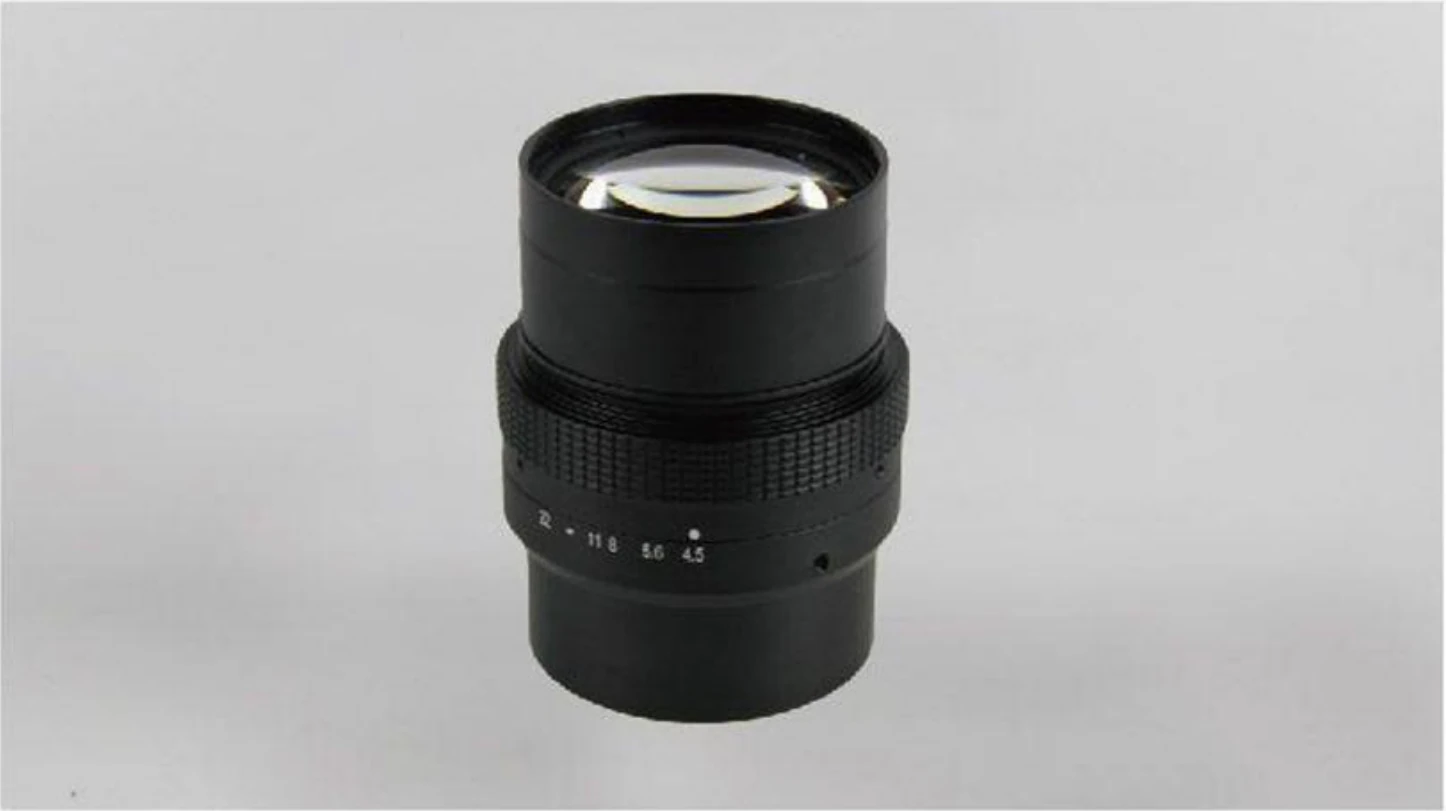

12K line scan lens
The 12K line scan lens is a range of 7 line scan lenses from LumaSpec Vision, from $2,039.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 116 mm, V-Mount |
|---|---|
| Mount | V-mount |
| Image circle | 60-90 mm |
| Focal length | 100 mm + |
| Sensor format | Medium / large |
Features
- Max image circle is up to dia. 66
- Suitable for 8k/12k line scan cameras
- Standard magnification from 0.2x to 1.24x
- Big aperture, FNO.4.5
- Ultra-low optical distortion
Typical uses
- Industrial: height - detecting metal markings
- Liquid crystal, semiconductor: count - SD card number calculation
- Liquid crystal, semiconductor: geometrical measurement - detect IC wire bending
All 7 models in the 12K line scan lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-LS1202A | 116 mm, V-Mount | $2,039.00 | 5 in stock | View |
| LS-LS1203A | 116 mm, V-Mount | $2,039.00 | 5 in stock | View |
| LS-LS1205A | 116 mm, V-Mount | $2,039.00 | 4 in stock | View |
| LS-LS1207A | 116 mm, V-Mount | $2,039.00 | 3 in stock | View |
| LS-LS1208A | 116 mm, V-Mount | $2,039.00 | 5 in stock | View |
| LS-LS1210A | 116 mm, V-Mount | $2,039.00 | 4 in stock | View |
| LS-LS1212A | 116 mm, V-Mount | $2,039.00 | 5 in stock | View |
