Line scan lenses

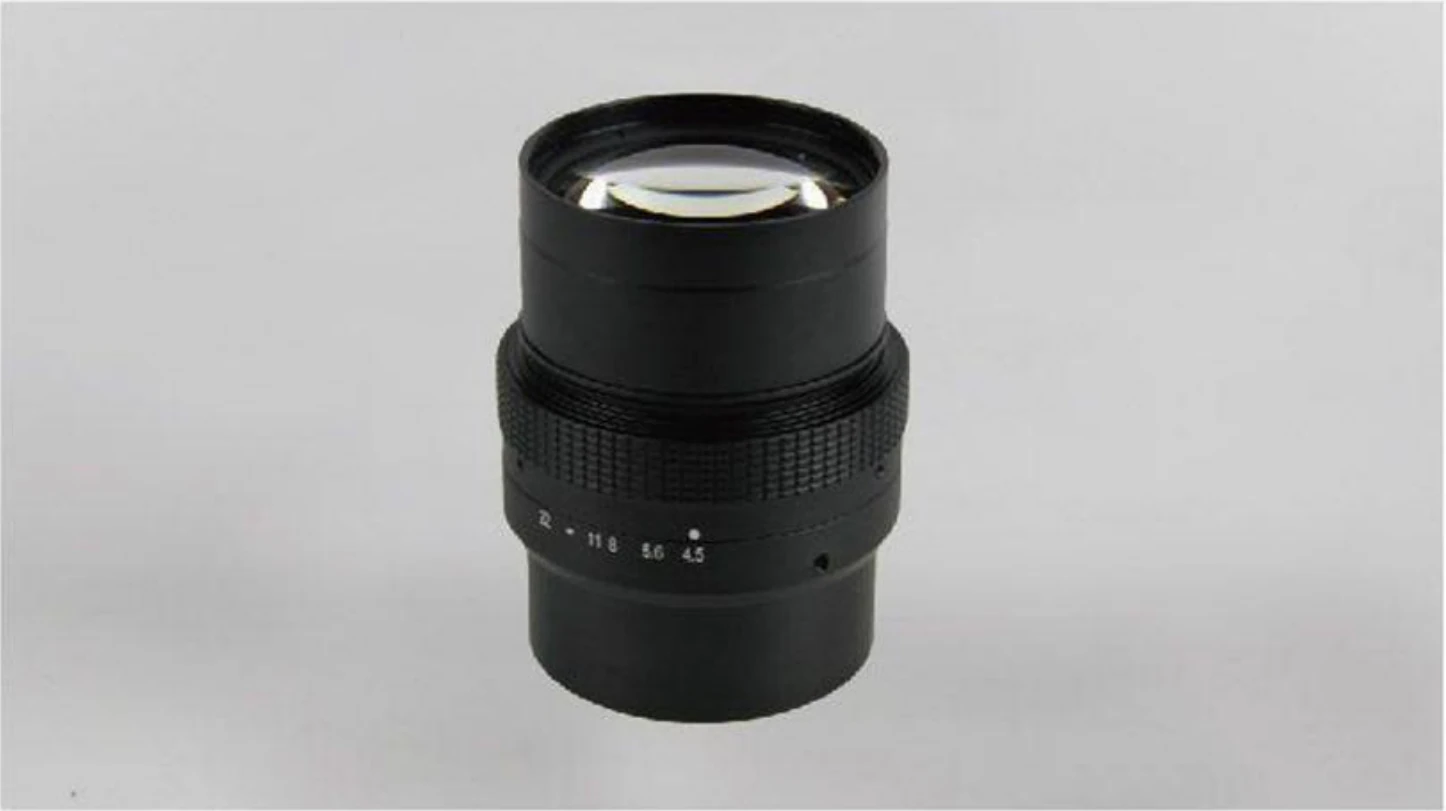

12K line scan lens, 116 mm, V-Mount (LS-LS1212A)
Model LS-LS1212A
Line scan lenses with max image circle up to dia. 66 mm, suitable for 8K/12K line scan cameras, standard magnification 0.2x to 1.24x, big aperture F4.5 and ultra-low optical distortion.
Features
- Max image circle is up to dia. 66
- Suitable for 8k/12k line scan cameras
- Standard magnification from 0.2x to 1.24x
- Big aperture, FNO.4.5
- Ultra-low optical distortion
Specifications
| Model | LS-LS1212A |
|---|---|
| Focal length | 116mm |
| Max image size | dia. 62 |
| Mount | V-Mount |
| Distortion | <0.005% |
| Line scan format | 12K 5µ |
| Note | Feature text says max image circle dia. 66 mm; header box and table give dia. 62. |
| EFL | 116mm |
| Standard magnification | 1.24X |
| Image size (dia.) | dia. 62 |
| F/NO | 4.5-22 |
| Optical distortion | <0.005% |
| Working distance | 149.9 |
| Conjugate distance | 434.66 |
| Flange distance | 232.2 |
| Filter size | M52×P0.75 |
| Sensor format | dia. 62 mm image circle |
| Aperture | F4.5-22 |
| Shipping weight | 0.94 kg |
Applications
- Industrial: height - detecting metal markings
- Liquid crystal, semiconductor: count - SD card number calculation
- Liquid crystal, semiconductor: geometrical measurement - detect IC wire bending
- Industrial: height - detecting metal markings
