Line scan lenses · 4 models · from $1,019.00

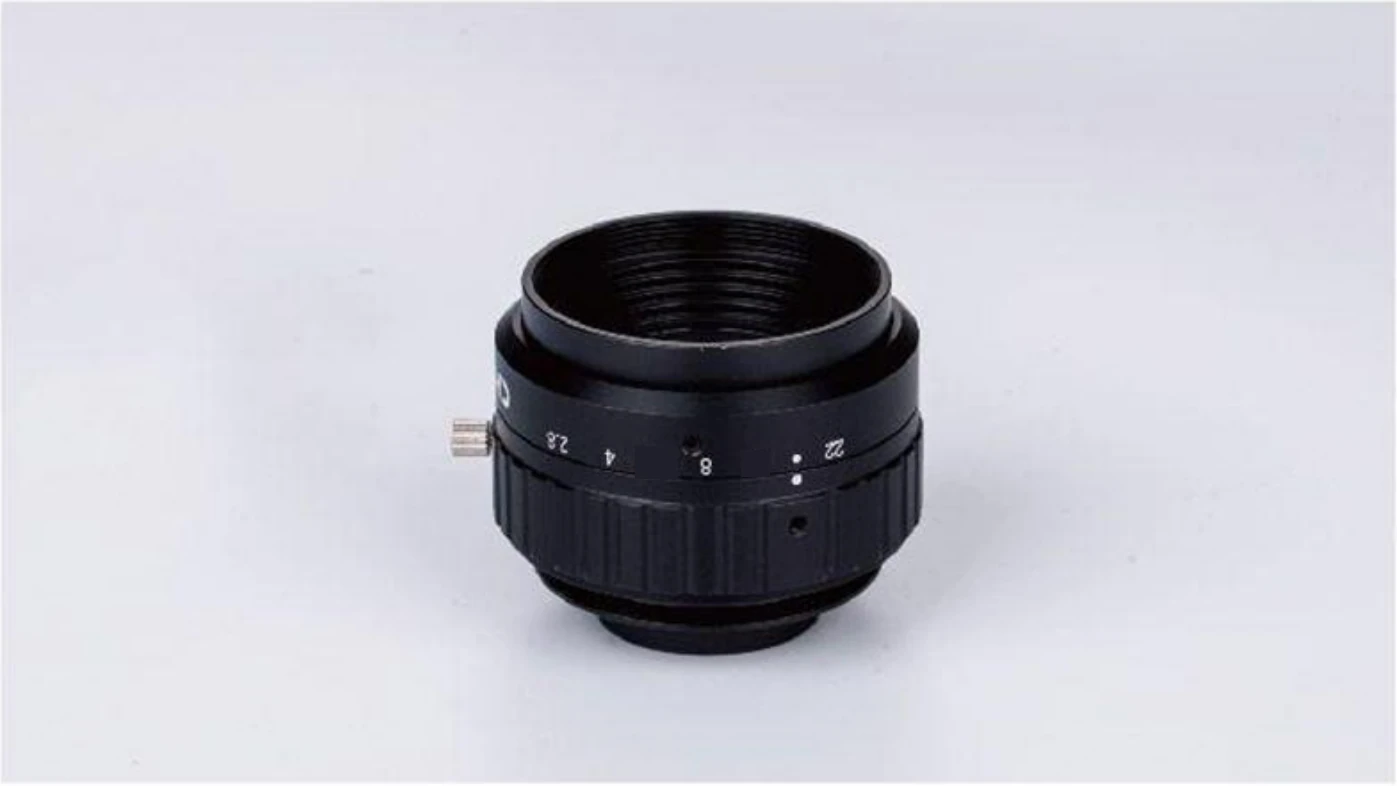

4K line scan lens
The 4K line scan lens is a range of 4 line scan lenses from LumaSpec Vision, from $1,019.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 20 mm, M42×P1-mount, 29 mm, V-Mount, 35 mm, V-Mount, 40 mm, V-Mount |
|---|---|
| Mount | V-mount |
| Image circle | 22-30 mm |
| Focal length | 12-25 mm, 25-50 mm |
| Sensor format | 4/3" - APS-C |
Features
- Designed for compact line scan camera
- Standard EFL and magnification available
- Magnification from 0.02x-0.33x
- V-mount as standard, adaptable to various camera mount
- Applied to printing and packaging inspection
Typical uses
- Industrial: height - detecting metal markings
- Electronic component: blemish / stain - LED appearance inspection
- Electronic component: yes or no / identify - identify the battery pack colour
- Industrial: blemish / stain - check the electrode coating for defects
All 4 models in the 4K line scan lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-LS2003C | 20 mm, M42×P1-mount | $1,019.00 | 5 in stock | View |
| LS-LS2801A | 29 mm, V-Mount | $1,049.00 | 2 in stock | View |
| LS-LS3508A | 35 mm, V-Mount | $1,069.00 | 3 in stock | View |
| LS-LS4010A | 40 mm, V-Mount | $1,079.00 | 5 in stock | View |
