Line scan lenses · 14 models · from $2,369.00

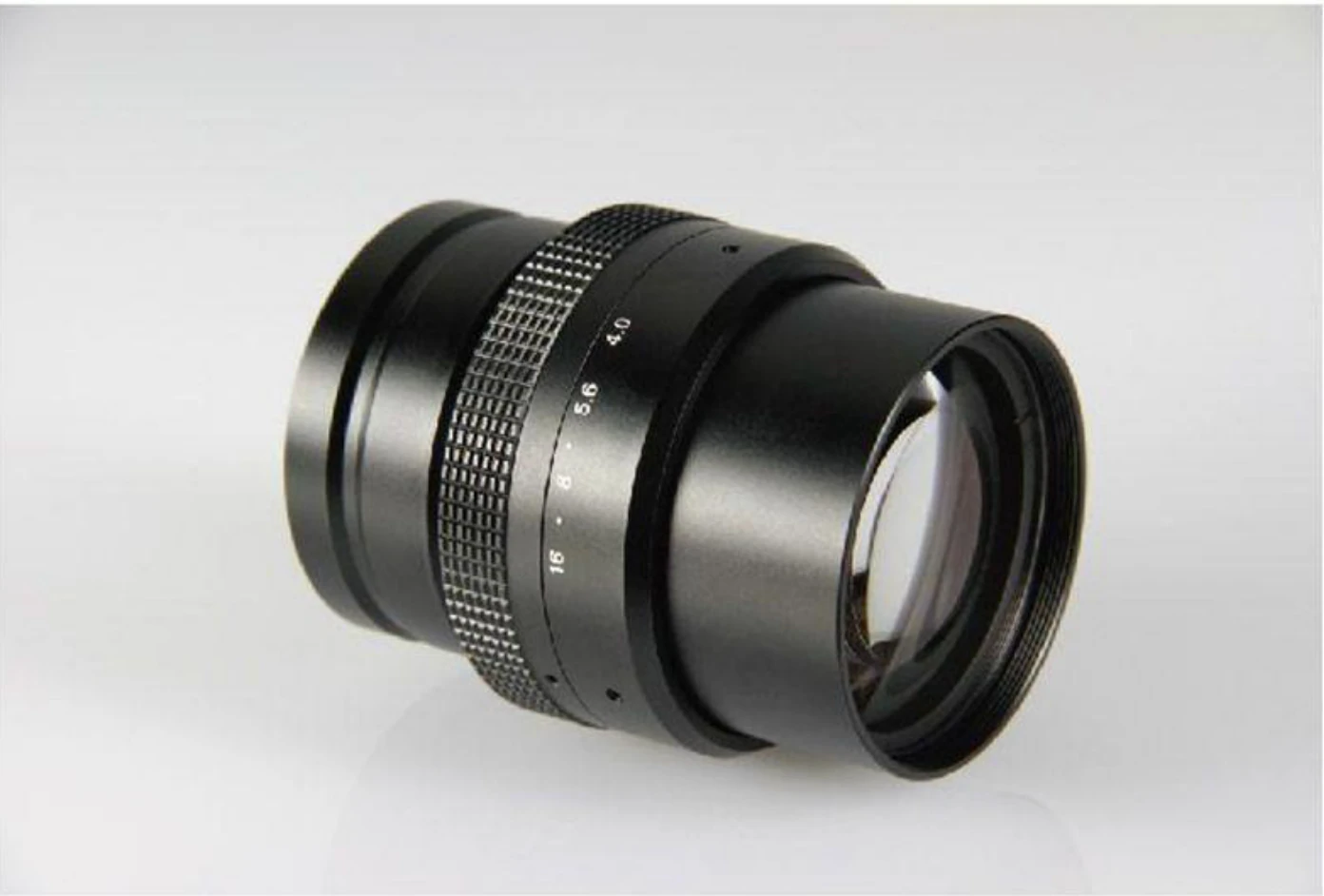

16K 5µ line scan lens
The 16K 5µ line scan lens is a range of 14 line scan lenses from LumaSpec Vision, from $2,369.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 116 mm, V-Mount, 120 mm, V-Mount, 147.6 mm, V-Mount |
|---|---|
| Mount | V-mount |
| Image circle | 60-90 mm |
| Focal length | 100 mm + |
| Sensor format | Medium / large |
Features
- Specially designed for 16K5µ super high resolution line scan camera
- Lens real resolution is up to 160lp/mm
- Provide higher contrast for cameras
- Max image circle is up to 82mm
- Compatible with 16K3.5µ/12K5µ camera
- Optical distortion is <1 pixel size
- Magnification from 0.26x-3x
Typical uses
- Industrial: height - detecting metal markings
- Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
- Electronic component: blemish / stain - detecting camera defects
- Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors
All 14 models in the 16K 5µ line scan lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-LS1626B | 116 mm, V-Mount | $2,369.00 | 2 in stock | View |
| LS-LS1662A | 116 mm, V-Mount | $2,369.00 | 4 in stock | View |
| LS-LS1683A | 116 mm, V-Mount | $2,369.00 | 3 in stock | View |
| LS-LS1687A | 116 mm, V-Mount | $2,369.00 | 2 in stock | View |
| LS-LS1613A | 116 mm, V-Mount | $2,369.00 | 3 in stock | View |
| LS-LS1615A | 116 mm, V-Mount | $2,369.00 | 2 in stock | View |
| LS-LS1617A | 116 mm, V-Mount | $2,369.00 | 5 in stock | View |
| LS-LS1620A | 116 mm, V-Mount | $2,369.00 | 4 in stock | View |
| LS-LS1630A | 116 mm, V-Mount | $2,369.00 | 2 in stock | View |
| LS-LS1603B | 120 mm, V-Mount | $2,379.00 | 2 in stock | View |
| LS-LS1605B | 120 mm, V-Mount | $2,379.00 | 3 in stock | View |
| LS-LS1620B | 120 mm, V-Mount | $2,379.00 | 5 in stock | View |
| LS-LS1630B | 120 mm, V-Mount | $2,379.00 | 4 in stock | View |
| LS-LS1667B | 147.6 mm, V-Mount | $2,469.00 | 2 in stock | View |
