Line scan lenses · 6 models · from $1,329.00

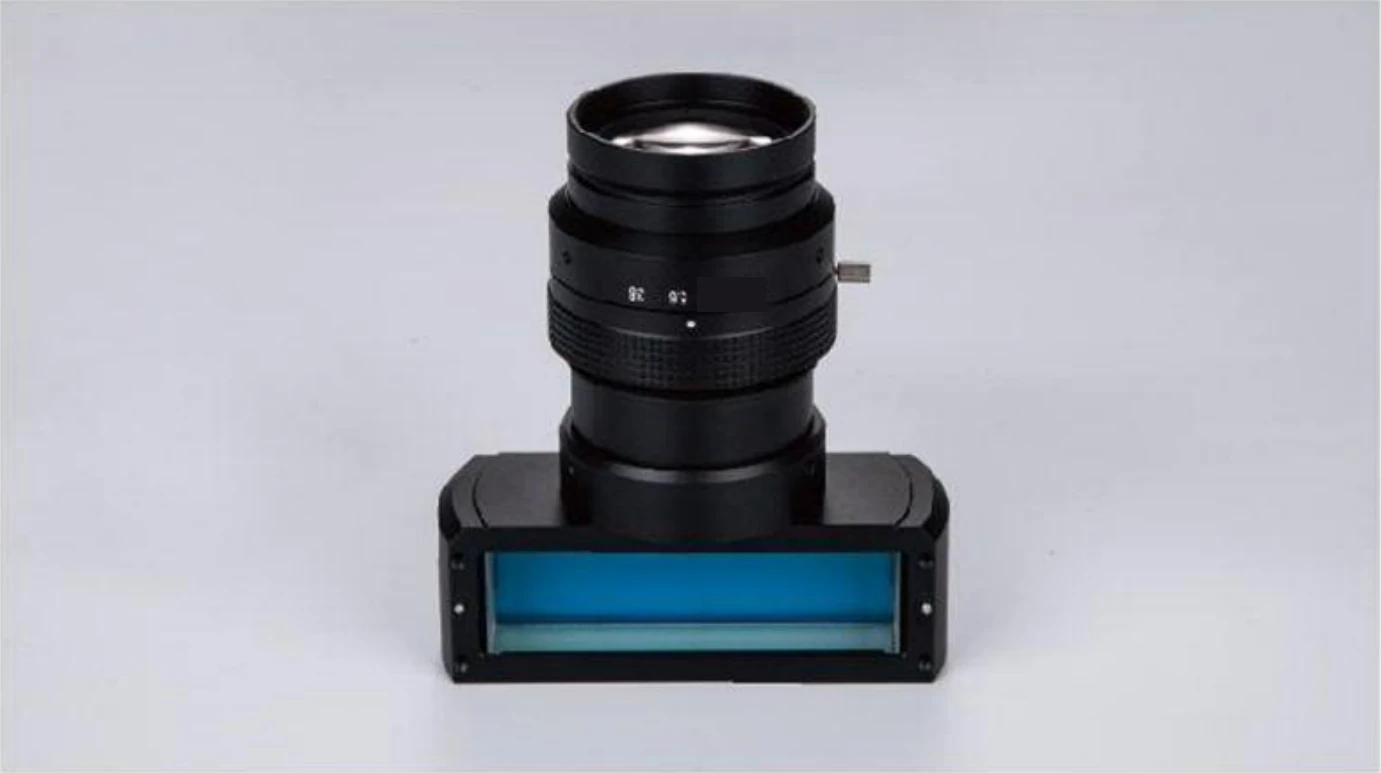

Coaxial illumination line scan lens
The Coaxial illumination line scan lens is a range of 6 line scan lenses from LumaSpec Vision, from $1,329.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 116 mm, V-Mount, 120 mm, V-Mount, 145 mm, V-Mount |
|---|---|
| Mount | V-mount |
| Image circle | 60-90 mm |
| Focal length | 100 mm + |
| Sensor format | Medium / large |
Features
- Designed for coaxial lighting system
- Avoid the resolution deduction caused by using the beam splitter
- Achieve the detection requirements of high resolution and high contrast
- 16K/5µ and compatible with 16K/3.5µ and 12K/5µ line scan cameras
- With 30 x 80mm beam splitter
- Ultra-low optical distortion, less than 0.001%, or 1 pixel
- Big aperture, FNO. 3.8
Typical uses
- Industrial: height - detecting metal markings
- Electronic component: yes or no / identify - check the number of tiny chips and poor imprint
- Electronic component: blemish / stain - detecting camera defects
- Electronic equipment: yes or no / identify - detect poorly bundled / broken lead wires of motors
All 6 models in the Coaxial illumination line scan lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-LS1610L-P01 | 116 mm, V-Mount | $1,329.00 | 4 in stock | View |
| LS-LS1613L-P01 | 116 mm, V-Mount | $1,329.00 | 2 in stock | View |
| LS-LS1617L-P01 | 116 mm, V-Mount | $1,329.00 | 3 in stock | View |
| LS-LS1620L-P01 | 120 mm, V-Mount | $1,349.00 | 5 in stock | View |
| LS-LS1630L-P01 | 120 mm, V-Mount | $1,349.00 | 2 in stock | View |
| LS-LS1615L-P01 | 145 mm, V-Mount | $1,429.00 | 5 in stock | View |
