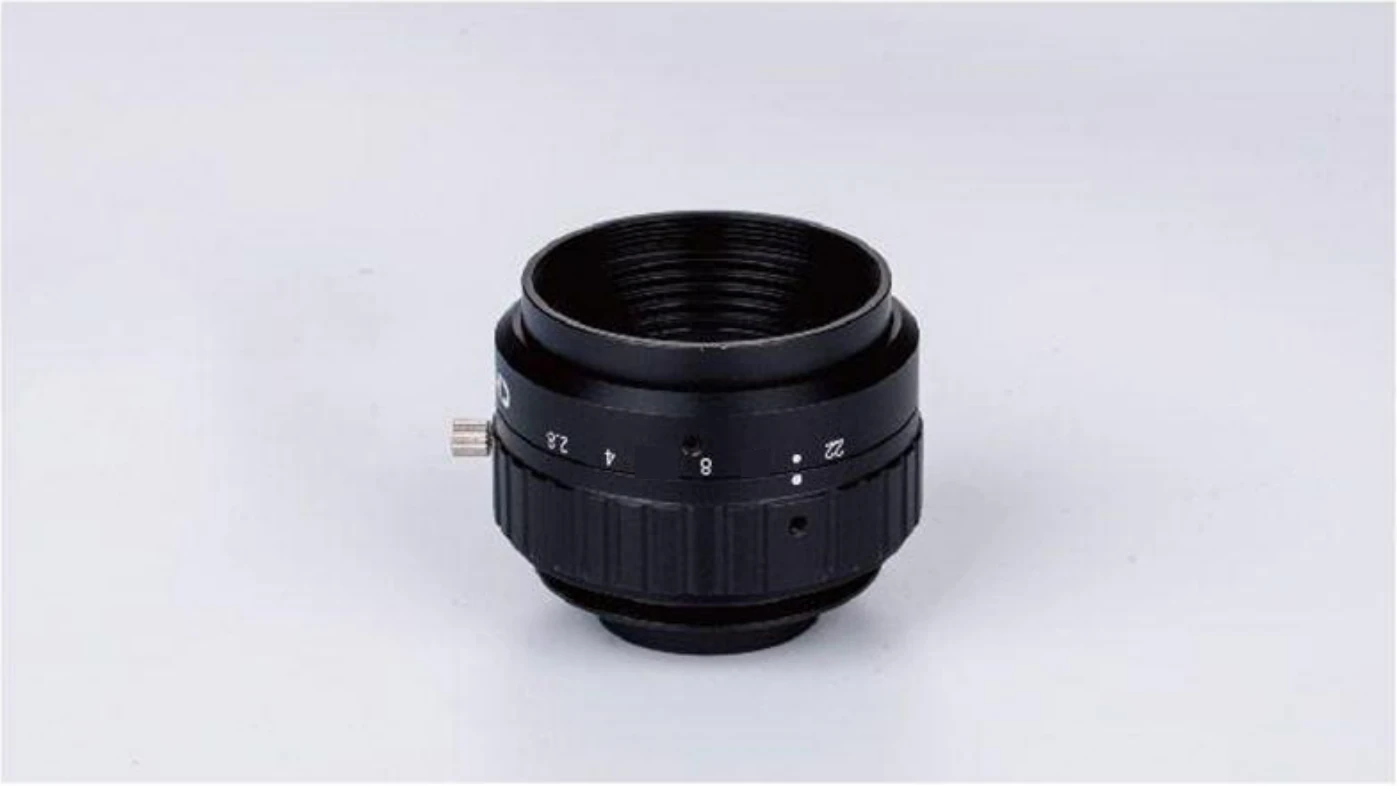

4K line scan lens, 20 mm, M42×P1-mount (LS-LS2003C)
Model LS-LS2003C
Line scan lenses designed for compact line scan cameras, with standard EFL and magnification options from 0.02x-0.33x; V-mount as standard, adaptable to various camera mounts; applied to printing and packaging inspection.
Features
- Designed for compact line scan camera
- Standard EFL and magnification available
- Magnification from 0.02x-0.33x
- V-mount as standard, adaptable to various camera mount
- Applied to printing and packaging inspection
Specifications
| Model | LS-LS2003C |
|---|---|
| Focal length range | 20-40mm |
| Max image size | dia. 30 |
| Mount | V-Mount |
| Distortion | <0.01% |
| Line scan format | 4K 7µ |
| EFL | 20mm |
| Standard magnification | 0.0358X |
| Image size (dia.) | dia. 30 |
| F/NO | 4.5-C |
| Optical distortion | 0.2% |
| Working distance | 557.4 |
| Conjugate distance | 619.1 |
| Flange distance | 12 |
| Central resolution | 160lp/mm |
| Sensor format | dia. 30 mm image circle |
| Aperture | F4.5-C |
| Shipping weight | 0.94 kg |
Applications
- Industrial: height - detecting metal markings
- Electronic component: blemish / stain - LED appearance inspection
- Electronic component: yes or no / identify - identify the battery pack colour
- Industrial: blemish / stain - check the electrode coating for defects
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
