Line scan lenses

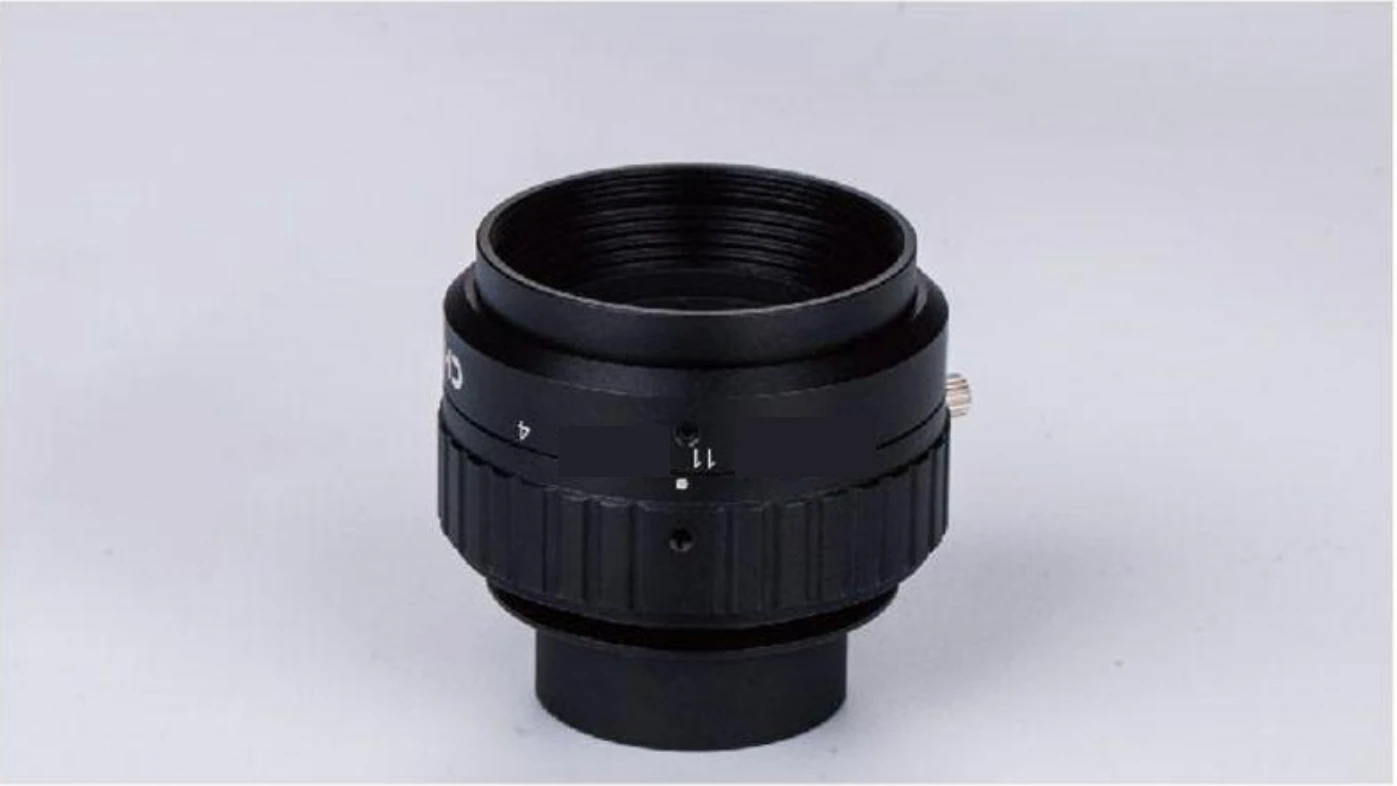

8K line scan lens, 40 mm, M72×P0.75-mount (LS-LS4005B)
Model LS-LS4005B
Line scan lenses specially designed for 8K 7 µm line scan cameras, standard EFL and magnification from 0.02x-0.4x, V-mount as standard; applied to big-size detection such as lithium batteries.
Features
- Specially designed for 8k7µ line scan camera
- Standard EFL and magnification available
- Magnification from 0.02x-0.4x
- V-mount as standard, adaptable to various camera mount
- Applied to big size detection such as lithium battery
Specifications
| Model | LS-LS4005B |
|---|---|
| Focal length range | 40-100mm |
| Magnification range | 0.02X-0.4X |
| Mount | V-Mount |
| Distortion | <0.01% |
| Line scan format | 8K 7µ |
| EFL | 40mm |
| Standard magnification | 0.05X |
| Image size (dia.) | dia. 60 |
| F/NO | 4.0-22 |
| Optical distortion | <0.2% |
| Working distance | 818.8 |
| Conjugate distance | 943.08 |
| Flange distance | 12 |
| Central resolution | 125lp/mm |
| Sensor format | dia. 60 mm image circle |
| Aperture | F4.0-22 |
| Shipping weight | 0.94 kg |
Applications
- Industrial: height - detecting metal markings
- Electronic component: blemish / stain - LED appearance inspection
- Electronic component: yes or no / identify - identify the battery pack colour
- Industrial: blemish / stain - check the electrode coating for defects
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the 8K line scan lens series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LS6016A | 60 mm, V-Mount | $679.00 | 3 in stock | View |
| LS-LS8003A | 80 mm, V-Mount | $719.00 | 3 in stock | View |
| LS-LS0802A | 100 mm, V-Mount | $749.00 | 3 in stock | View |
